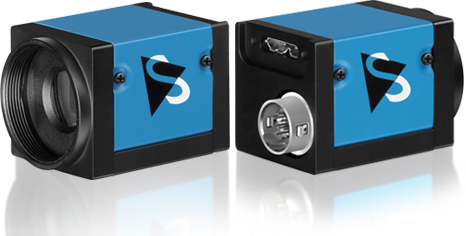

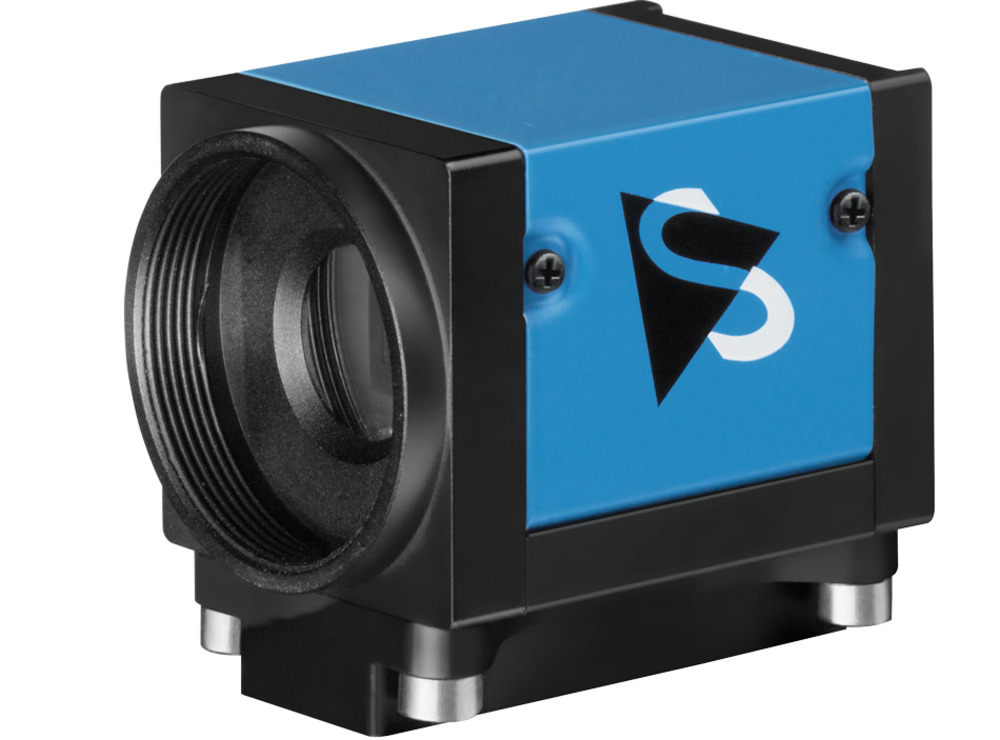

USB 3.0 Color Industrial Camera DFK 33UP1300 The Imaging Source

The Imaging Source DFK 33UP1300 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2 inch ON Semiconductor CMOS Python Sensor (PYTHON 1300) sensor. With up to 210 images per second, the DFK 33UP1300 is a low cost, yet highly versatile imaging solution. The camera includes a Tripod and C-Mount to CS-Mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

Features:

• USB 3.0 Interface
• ON Semiconductor CMOS Python Sensor (PYTHON 1300)
• 1.280×1.024 (1,3 MP)
• up to 210 fps
• Global Shutter
• Trigger and I/O inputst
• Only 29×29×43 mm
• Compatible with C- and CS-Mount Lenses
• Manufactured by The Imaging Source
• Windows and Linux Software included

GENERAL BEHAVIOR
Vision-Standard
Dynamic range	10 bit
Resolution	1.280 x 1.024 (1,3MP)
Frame rate	210 fps
Video Output Format	8-Bit Monochrome, 8-Bit Bayer (RG), 10-Bit Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
INTERFACE (OPTICAL)
IR Cut filter	✔
Sensor-Type	CMOS Python

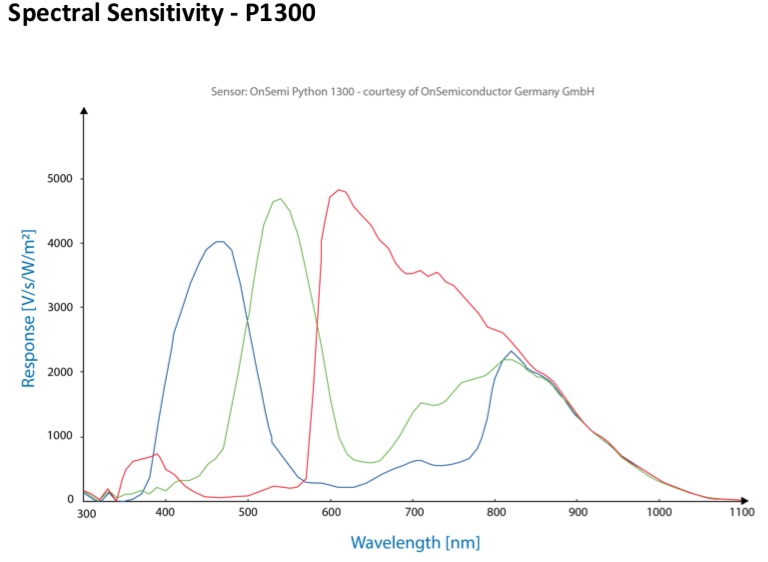

Sensor-Specifications	On Semicondutor PYTHON 1300
Shutter	global
Format	1/2 inch
Pixel-size	H: 4,8 µm, V: 4,8 µm
Lens Mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.0
Supply-Voltage	4,75 VDC tu 5,25 VDC
Current-consumption	approx 680 mA @ 5 VDC
Auto iris control	✖
Trigger	✔
I/Os	✔
INTERFACE (MECHANICAL)

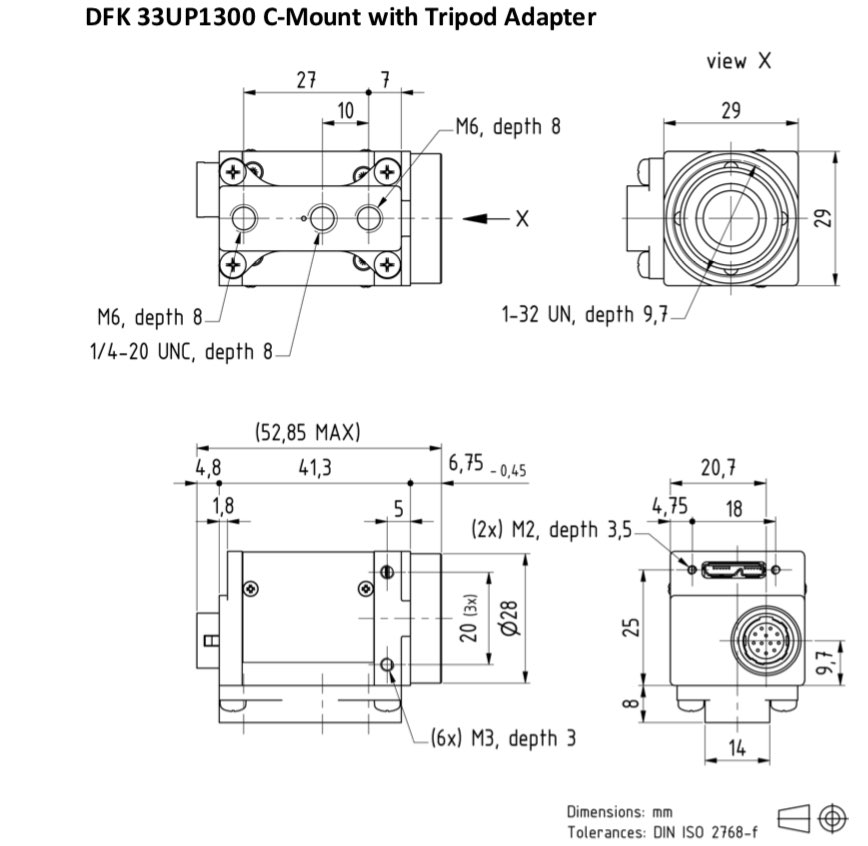

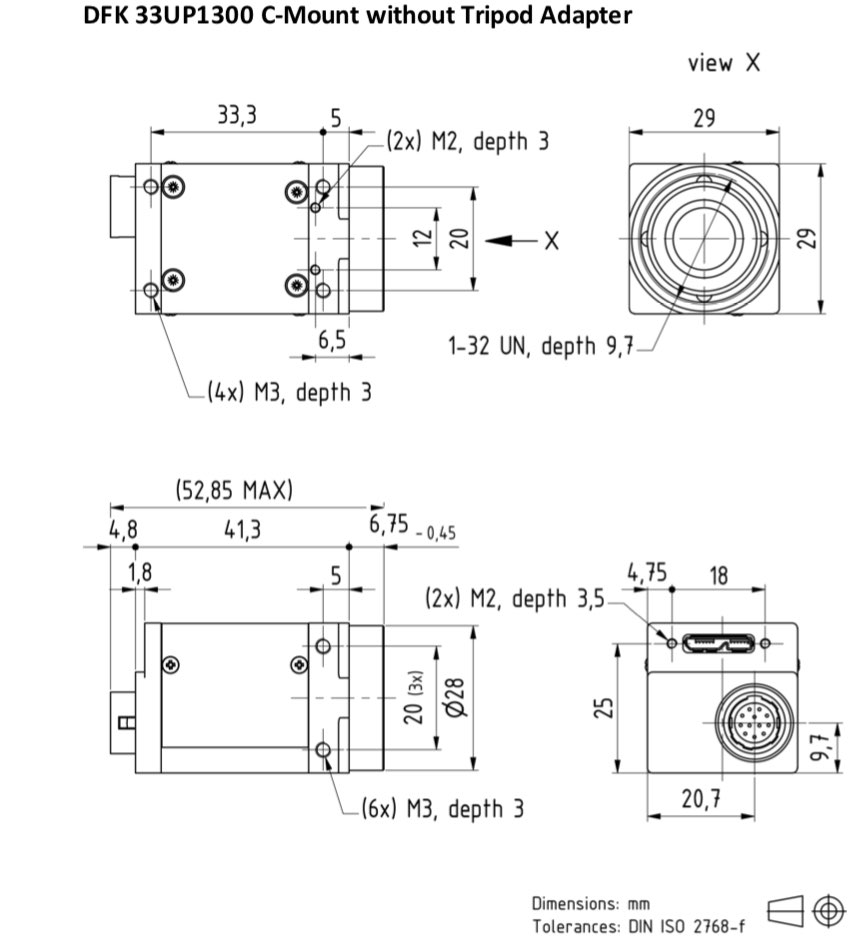

Dimension	H: 29 mm, B: 29 mm, L: 43 mm
Mass	65 g
ADJUSTMENT
Shutter	50 µs to 10 s
Gain	0 dB to 9.21 dB
ENVIRONMENTAL
Temperature (operating)	-5 °C zu 45 °C
Temperature (storage)	-20 °C zu 60 °C
Humidity (operating)	20 % zu 80 % (non-condensing)
Humidity (storge)	20 % zu 95 % (non-condensing
Subject to change
