Magewell PRO CAPTURE DUAL HDMI 4K PLUS LT

€1,780.87 *

Estimated delivery time 1 - 3 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

Order number: 303775

The Magewell Pro Capture Dual HDMI 4K Plus LT Video Capture Card offers the ability to... more

Close menu

Product information "Magewell Pro Capture Dual HDMI 4K Plus LT"

Banner_Magewell_Pro-Capture_Dual-HDMI_4K-Plus_LT

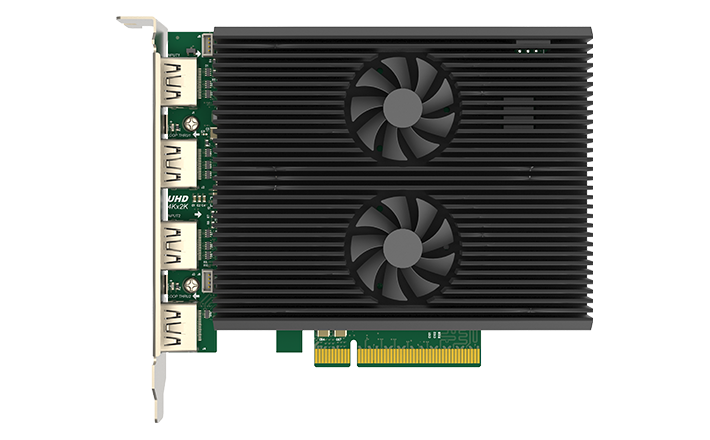

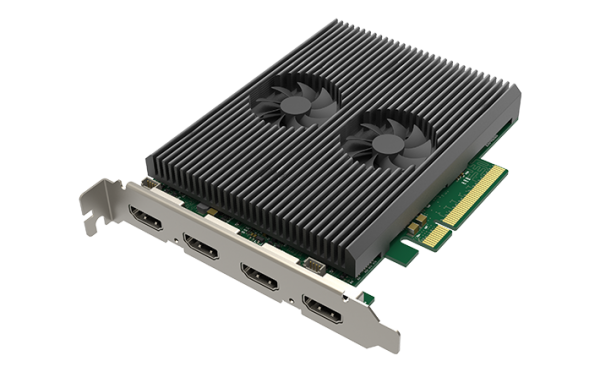

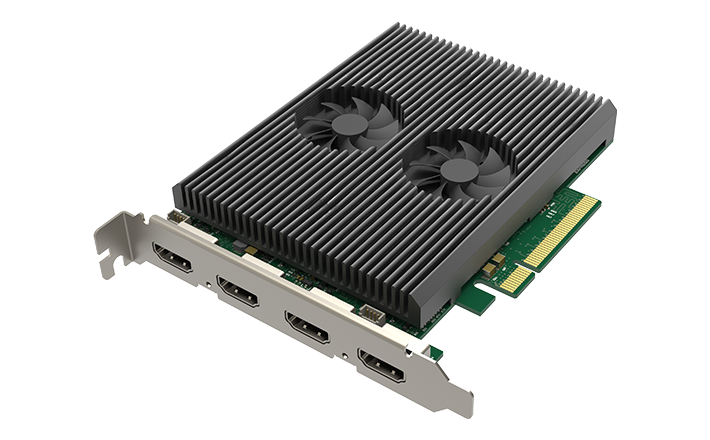

The Magewell Pro Capture Dual HDMI 4K Plus LT Video Capture Card offers the ability to capture two 4K video sources simultaneously through the HDMI inputs and output directly through the loop-through channels. So you have the perfect opportunity to control or forward your recording when capturing.

The Magewell Pro Capture Family cards can be used on Windows, Linux and Mac and are compatible with many common software applications thanks to the Direct-Show interface.

Spezifikationen

ProCaptureDualHDMI4KPlusLTH5ZKpWArN2fB8

Specificatgions and Features
Interface Input Interface HDMI x2 Support input resolution up to 4096×2160 pixels Loop-through Interface HDMI x2 Host Interface PCIe Gen2 x8	Video Engine 10-bit video processing Deinterlace Cropping Color Adjustment Hardware Timestamp Color Space Conversion Up/down Conversion Aspect Ratio Conversion OSD SG-DMA Transmission mode	Signal Detection & Support Auto Detection of Input Signal Format 3D HDMI Time Code HDR10	Software Environment OS Windows, Linux, Mac Driver and Firmware Universal Driver, Updatable Firmware Included Software Pro Capture Utility, Capture Express Compatible Software 50+
Others
Multiple Capture Streams Continuously Work for 24hx7 Windows & Linux SDK	Low Latency Mode High-speed Memory 2-year Warranty	Multiple Devices on One Host LED Status Indicator	Mounting Hole Rotary Switch

Video Input:	HDMI
Input Interface:	PCI Express

Related links to "Magewell Pro Capture Dual HDMI 4K Plus LT"

Available downloads:

Download Datasheet

Read, write and discuss reviews... more

Close menu

Customer evaluation for "Magewell Pro Capture Dual HDMI 4K Plus LT"

Write an evaluation

Evaluations will be activated after verification.

Datasheet

Specifications

Supported OS

Windows
- Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
Linux (support x86, x64 & ARM architecture)
- Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
- CentOS 6.5/7 (x86 & x64)
- Fedora 25/26/27 (x86 & x64)
- Red hat 6.5 and above (x86 & x64)
- Other Linux OS with kernel version 2.6.35 and above
Mac
- OS X 10.9/10.10/10.11
- macOS 10.12/10.13

Recommended OS (tested)

Windows
- Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
Linux
- Ubuntu 12.04/14.04/16.04 (x86 & x64)
- Ubuntu 17.04/17.10 (x64)
- CentOS 6.5/7.2 (x86 & x64)
- Fedora 25/26 (x64)
- Red hat 6.5 (x86 & x64)
Mac
- OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
- macOS 10.12/10.13.2/10.13.3

Supported APIs

Windows
- DirectShow
- DirectKS
- Wave API/DirectSound/WASAPI
Linux
- V4L2
- ALSA

Supported Software

VLC
VirtualDub
OBS
XSplit
vMix
VidBlaster
Wirecast
Microsoft Media Encoder
Adobe Flash Media Encoder
Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

2x HDMI
- DVI-D 1.0
- HDMI 2.0

Host Interface

PCIe Gen2 x8

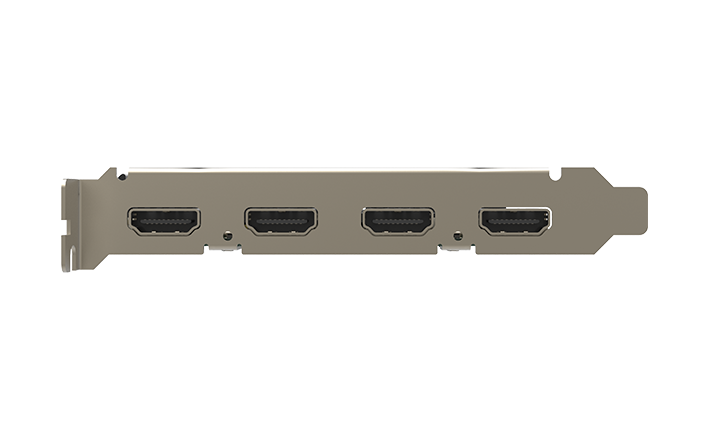

Loop-through Interface

2x HDMI
- DVI-D 1.0
- HDMI 2.0

Input Features

Support for input video resolutions up to 4096x2160 pixels

HDMI Specific Features

594MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
Full colorimetry support
Support for 8/10/12-bit color depths
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Support for up to 8-channel IEC60958/IEC61937 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for extraction of Sony/Canon DSLR time code
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Support for HDR10

Video Capture Formats

Support for capture image resolutions up to 4096x2160 pixels
Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
Support for 4:4:4 10-bit capture formats: V410, Y410
More capture formats are supported via Magewell Capture SDK for DirectKS

Video Processing Features

Two video processing pipelines with ~720Mpixels/s processing bandwidth for each one
Full 10-bit video processing
Video cropping
Video scaling
Video de-interlacing
- Weave
- Blend top & bottom field
- Top field only
- Bottom field only
Video aspect ratio conversion
- Auto or manual selection of input aspect ratio
- Auto or manual selection of capture aspect ratio
- Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
- Auto or manual selection of input color format & quantization range
- Auto or manual selection of capture color format, quantization range & saturation range
- Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
- Support for Limited or Full quantization range
- Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video OSD composition
- Support for PNG OSD image (up to 4096x2160)
- Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

Support for multiple cards plugged to one system
On-board rotary switch to set card number, with 16 positions from 0 to F
System hardware device tree will display “01: Pro Capture Dual HDMI 4K+ LT” when rotary switch is set to 1, and so on
The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Capture Streams

Unlimited capture streams for any one input channel
Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Ultra Low Latency Support

Latency of 64 video lines
Partial notification mode in SDK

Timestamp & A/V Synchronization

Hardware based 100ns high resolution clock
Audio frames (192 audio samples) & video frames are stamped with hardware clock
Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

~1600MB/s per channel DMA bandwidth in PCIe 2.x system
~800MB/s per channel DMA bandwidth in PCIe 1.x system
Support for auto detection of Intel tiled GPU surface
Support for DirectGMA for AMD video adapter chipsets
Support for GPUDirect for Nvidia video adapter chipsets

SDK

Magewell Capture SDK for DirectShow for easy integration (Windows)
Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

All options can be controlled by three levels of registry key: global level, product level and device level
Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously
Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

LED Indicator

Status LEDs indicate the working state of each channel:
- Pulsing slowly: idle
- On: input signal locked
- Off: input signal unlocked
- Double blinks: memory failed or FPGA configuration failed

Form Factor

Normal profile PCIe x8 Add-on Card
127.89mm x 102.92mm (without PCI bracket)

Power Consumption

Max current at 12V: ~ 1.32 A
Max current at 3.3V: ~ 1.94 A
Max power consumption: ~ 22 W

Working Environment

Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
