Preview: 12 mm C-Mount Lens Tamron M112FM12

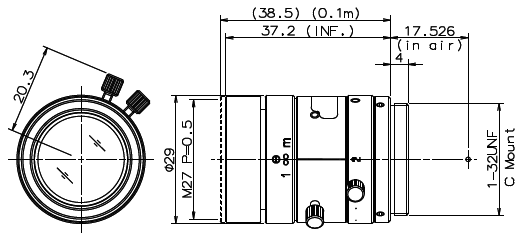

Preview: 12 mm C-Mount Lens Tamron M112FM12_Dimensions

12 mm C-Mount Lens Tamron M112FM12

12 mm C-Mount Lens Tamron M112FM12_Dimensions

€268.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.

Order number: 303364

Tamron for 5 Megapixel camera 1/1,2" and 2/3" for Sensor IMX174, IMX249, IMX250,... more

Product information "12 mm C-Mount Lens Tamron M112FM12"

Tamron
for 5 Megapixel camera 1/1,2" and 2/3"
for Sensor IMX174, IMX249, IMX250, IMX264
Pixel 5,85µm, 3,45µm
Focal length 12,0mm / Aperture 2,0-16
manually controlled, small lens for C-mount cameras

Article-No.:	303364
Tamron Name	M112FM12
Format	1/1.2
Mount	C-Mount
Focal length	12 mm
Aperture	2.0 - 16.0
Iris control	manual
Focus control	manual
MOD (Minimum Object Distance)	0.1m - Inf.
Angle of View 1/1.2" (horizontal)	49,2° 4:3 / 53,2° 16:9
Angle of View 2/3" (horizontal)	40,9° 4:3 / 44,4° 16:9
Filter thread	M27 x P = 0,5
Wave Size	visible Light
Distortion	- 0,97%
Weight	64g
Operating Temperature	-20°C - + 60°C

Lens type:	Fixed Focal Length
M.O.D.:	0,10 m
Sensor:	1/1.2, 2/3
Lens-Mount:	C-Mount
Focal length:	12 mm
Resolution:	5 Megapixel
Aperture:	2,0, Manual Aparture
F-theta Distortion (-%):	- 0,97%
Filter Thread:	M27 x 0.5
Coaxial:	No
