12 mm C-Mount 20MP Lens Computar V1226-MPZ - 2,6 / 12mm
- Order number: 303847
12 mm C-Mount 20MP Lens Computar V1226-MPZ The V1226-MPZ... more
Product information "12 mm C-Mount 20MP Lens Computar V1226-MPZ - 2,6 / 12mm"

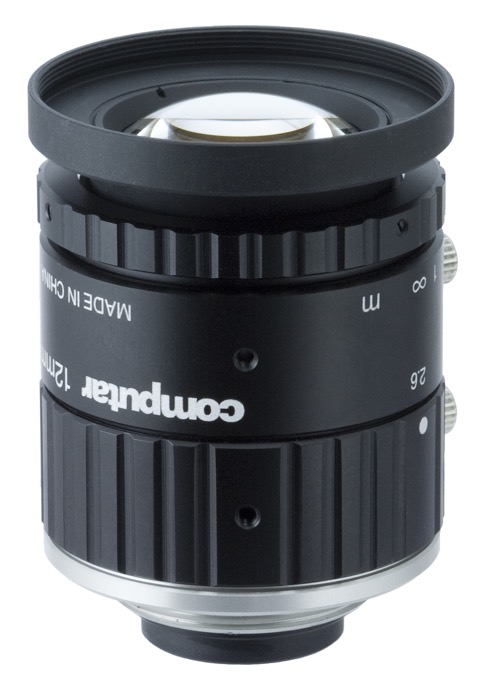

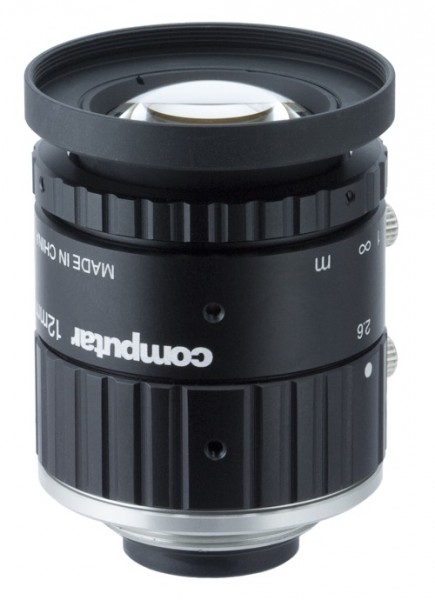

12 mm C-Mount 20MP Lens Computar V1226-MPZ
The V1226-MPZ Machine Vision lens of Computar's new 1 "MPZ series features an extremely high resolution of approximately 20 megapixels and its precise accuracy.The V1226-MPZ achieves excellent results on nearly all types of sensors and is nearly complete suitable for industrial image processing. Due to the new floating design, it has a vibration resistance up to 5G and is nevertheless very small in size. In addition, the lens offers high performance with short working distance and a very good resolution of INF to MOD.
An overview of the entire series can be found under the following link: click here
Features:
- Compatible with 1 inch sensor format, e. g. IMX255 (1 inch, 8,9 MP, 3,45 μm), IMX183 (1 inch, 20 MP, 2,4 μm)
- C-mount Lens
- 20 Megapixel Resolution
- High performance with short working distance
- Short working distance of only 0.1 m
- Good resolution from INF to MOD through floating design
- Vibration resistance up to 5G
- Image circle Ø16.0mm
| Focal length | 12 mm |
| Max. Aperture Ratio | 1:2.6 |
| Max. Image Format | 12.8 mm x 9.6 mm (Ø16mm) |
| Iris range | F.2.6 - F16.0 |
| Focus range | 0.1m - Inf. |
| Iris control | manuell |
| Focus control | manuell |
| Angle of View 1" (D / H / V) | D 67.4° / H 56.7° / V 44.1° |
| Angle of View 2/3" (D / H / V) | D 49.8° / H 40.7° / V 31.0° |
| Angle of View 1/1.8" (D / H / V) | D 41.5° / H 33.7° / V 25.5° |
| Distortion at 1" | 0.0 % |
| Distortion at 2/3" | - 1.1% |
| Distortion at 1/1.8" | - 1.0% |
| Filter thread | M37.5 P=0,5 |
| Weight | 98,4 g |

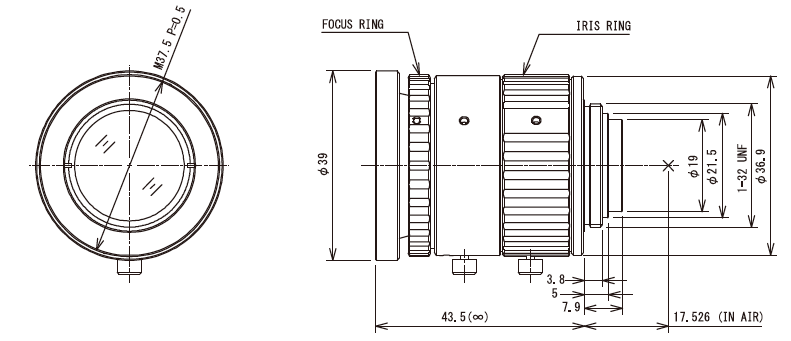

| Dimensions in mm | Ø39 x 51.4 |
| Temperature range | -10°C - +50°C |
| Lens type: | Fixed Focal Length |
| M.O.D.: | 0,10 m |
| Sensor: | 1, 1/1,8, 2/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 12 mm |
| Resolution: | 20 Megapixel |
| Aperture: | 2,6, Manual Aparture |
| Filter Thread: | M37,5 x 0.5 |
| Image-Circle: | Ø 16.00 mm |
| Coaxial: | No |
