Computar Releases New Product Line-up for Machine Vision the new MPZ Series





Computar’s Machine Vision lineup includes the NEW MPZ Series featuring super high-resolution operation with precise accuracy. Computar offers an extensive selection of models  suitable for various sensor types, and almost any application.

Computar_MPZ-series-01HGLaH7bpGF98C



Features:

  • Compatible with 1" Sensor Format  e.g. IMX255 (1”, 8.9MP, 3.45μm), IMX183 (1”, 20MP, 2.4μm)
  • Fixed Focal Lengths -  8, 12, 16, 25, 35, 50, and 75mm
  • High Performance at Short Working Distance
  • Shorter Working Distance from 0.1m
  • Good Resolution from INF to MOD for Floating Design
  • Vibration Resistance up to 5G
  • Image Circle Ø16.0mm

Lineup Computar MPZ-Series




V0826-MPZ
Focal length 8 mm
Max. Aperture Ratio 1:2.6
Max Image Format 12.8 mm x 9.6 mm (Ø16mm)
Iris range F.2.6 - F16.0
Focus range 0.1m - Inf.
Iris control  manual
Focus control manual
Angle of View 1" (D / H / V) D 88.8° /  H 76.9° /  V 61.5°
Angle of View 2/3" (D / H / V) D 68.6° / H 57.1 /  V 44.2°
Angle of View 1/1.8" (D / H / V) D 58.2° / H 47.8° / V 36.6°
Distortion at 1" -0.8 %
Distortion at 2/3" - 2.1%
Distortion at 1/1.8" -1.9%
Filter thread -
Weight TBD
Dimensions in mm Ø69.5 x 60.53
Temperature range -10°C - +50°C

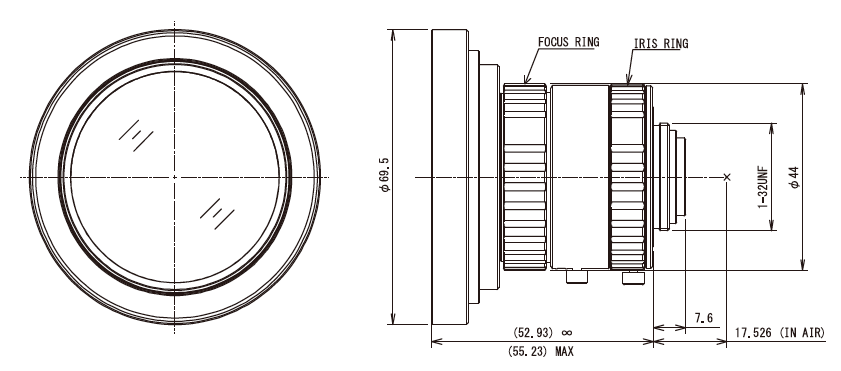

Computar-V0826-MPZ-Drawing
V1226-MPZ
Focal length 12 mm
Max. Aperture Ratio 1:2.6
Max Image Format 12.8 mm x 9.6 mm (Ø16mm)
Iris range F2.6 - F16.0
Focus range 0.1m - Inf.
Iris control  manual
Focus control manual
Angle of View 1" (D / H / V) D 67.4° / H 56.7° / V 44.1°
Angle of View 2/3" (D / H / V) D 49.8° / H 40.7° / V 31.0°
Angle of View 1/1.8" (D / H / V) D 41.5° / H33.7° / V25.5°
Distortion at 1" 0.0%
Distortion at 2/3" -1.1%
Distortion at 1/1.8" -1.0%
Filter thread M37.5 P=0.5mm
Weight 98.4g
Dimensions Ø39 x 51.4°
Temperature range -10°C - +50°C

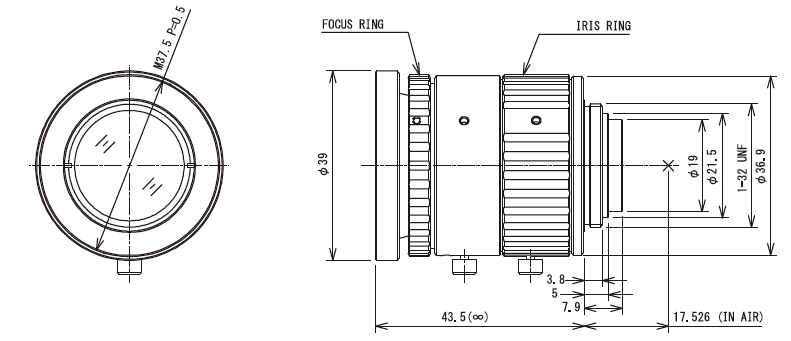

Computar-V1226-MPZ-Drawing

V1624-MPZ
Focal length  16 mm
Max. Aperture Ratio  1:2.4
Max. Image Format  12.8 mm x 9.6 mm (Ø16mm)
Iris range  F2.4 - F16.0
Focus range  0.1m - Inf.
Iris control  manual
Focus control  manual
Angle of View 1" (D / H / V) D 53.2° / H 43.8° / V 33.6°
Angle of View 2/3" (D / H / V) D 38.1° / H 30.9° / V 23.4°
Angle of View 1/1.8" (D / H / V) D 31.6° / H 25.5° / V 19.2°
Distortion at 1" 0.0%
Distortion at 2/3" -0.4%
Distortion at 1/1.8"  -0.4%
Filter thread   M33.5 P=0.5mm
Weight TBD
Dimensions in mm Ø 37 x 54.4 mm
Temperature range -10°C - + 50°C

Computar-V1624-MPZ-Drawing

V2520-MPZ
Focal length 25 mm
Max. Aperture Ratio 1:2.0
Max. Image Format 12.8 mm x 9,6 mm (Ø16mm)
Iris range F2.0 - F16.0
Focus range 0.15m - Inf.
Iris control  manual
Focus control manual
Angle of View 1" (D / H / V) D 35.5° / H 28.8° / V 21.8°
Angle of View 2/3" (D / H / V)  D 24.9° / H 20.0° / V 15.1°
Angle of View 1/1.8" (D / H / V) D 20.5° / H 16.4° / V 12.4°
Distortion at 1" 0.0%
Distortion at 2/3" 0.0%
Distortion at 1/1.8" 0.0%
Filter thread  M35.5 P=0.5mm
Weight 73.1 g
Dimensions in mm Ø 37 x 43,90 mm
Temperature range -10°C - +50°C

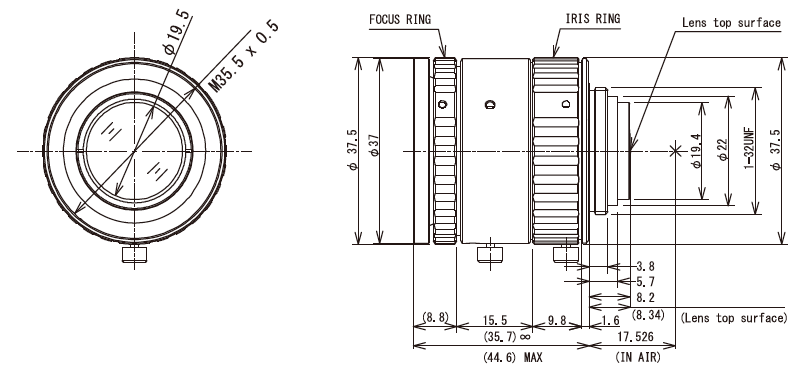

Computar-V2520-MPZ-Drawing

V3522-MPZ
Focal length 35 mm
Max. Aperture Ratio 1:2.2
Max. Image Format 12.8mm x 9.6 mm (Ø16mm)
Iris range F2.2 - F16.0
Focus range 0.2m - Inf.
Iris control manual
Focus control manual
Angle of View 1" (D / H / V) D 25.8° / H 20.8° / V 15.7°
Angle of View 2/3" (D / H / V) D 17.9° / H 14.4° / V 10.8°
Angle of View 1/1.8" (D / H / V) D 14.7° / H 11.8° / V 8.9°
Distortion at 1" 0.0%
Distortion at 2/3" 0.0%
Distortion at 1/1.8"  0.0%
Filter thread M34 P=0.5mm
Weight 118.2 g
Dimensions in mm Ø 35.5 x 63.90 mm
Temperature range - 10°C - +50°C

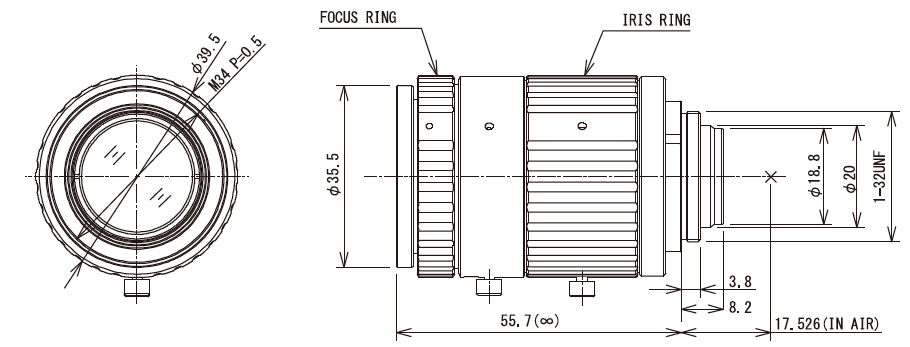

Computar-V3522-MPZ-Drawing
V5024-MPZ
 Focal length 50 mm
Max. Aperture Ratio 1:2.4
Max. Image Format  12.8 mm x 9.6 mm (Ø16mm)
Iris range  F2.4 - F16.0
Focus range  0.2m - Inf.
Iris control  manual
Focus control  manual
Angle of View 1" (D / H / V)  D 18.2° / H 14.6° / V 11.0°
Angle of View 2/3" (D / H / V)  D 12.6° / H 10.1° / V 7.6°
Angle of View 1/1.8" (D / H / V)  D 10.3° / H 8.3° / V 6.2°
Distortion at 1"  0.0%
Distortion at 2/3"  0.0%
Distortion at 1/1.8"  0.0%
Filter thread  M30.5 P=0.5
Weight  138.5 g
Dimensions in mm  Ø 42mm x 67.15 mm
Temperature range   -10°C - +50°C

Computar-V3522-MPZ-Drawing

V7531-MPZ
Focal length 75 mm
Max. Aperture Ratio 1:3.1
Max. Image Format  12.8 mm x 9.6 mm(Ø16mm)
Iris range F3.1 - F 16.0
Focus range 0.25 - Inf.
Iris control manual
Focus control manual
Angle of View 1" (D / H / V) D 12.2° / H 9.8° / V 7.3°
Angle of View 2/3" (D / H / V) D 8.4° / H 6.7° / V 5.0°
Angle of View 1/1.8" (D / H / V) D 6.9° / H 5.5° / V 4.1
Distortion at 1" 0.0%
Distortion at 2/3" 0.0%
Distortion at 1/1.8" 0.0%
Filter thread M30.5 P=0.5
Weight TBD
Dimensions in mm Ø42 mm x 85,90 mm
Temperature range -10°C - +50°C

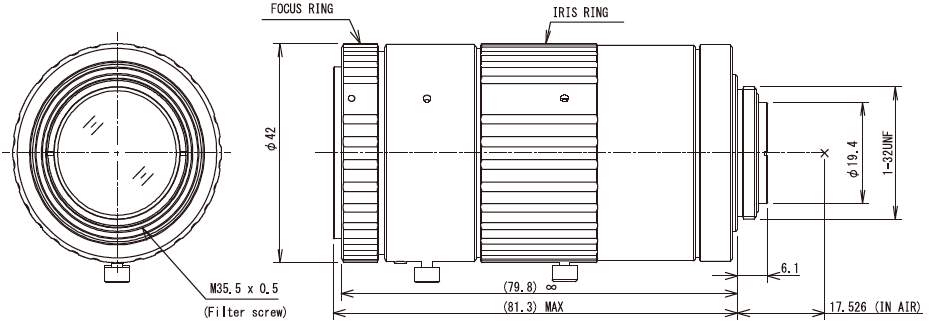

Computar-V7531-MPZ-Drawing

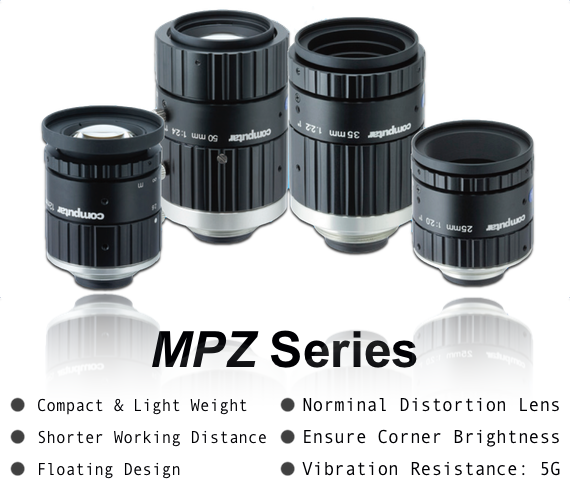

 Computar_MPZ-Series_overview
