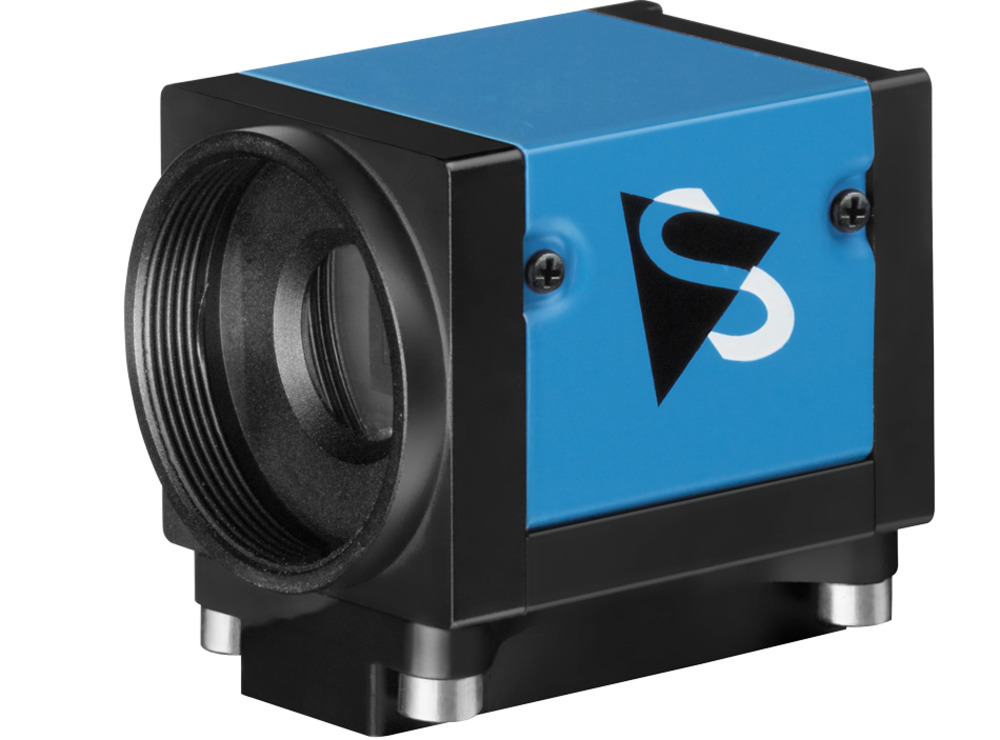

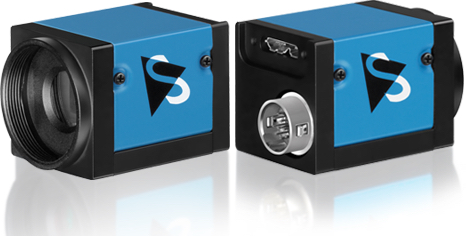

USB 3.0 Color industrial camera DFK 33UX287 The Imaging Source

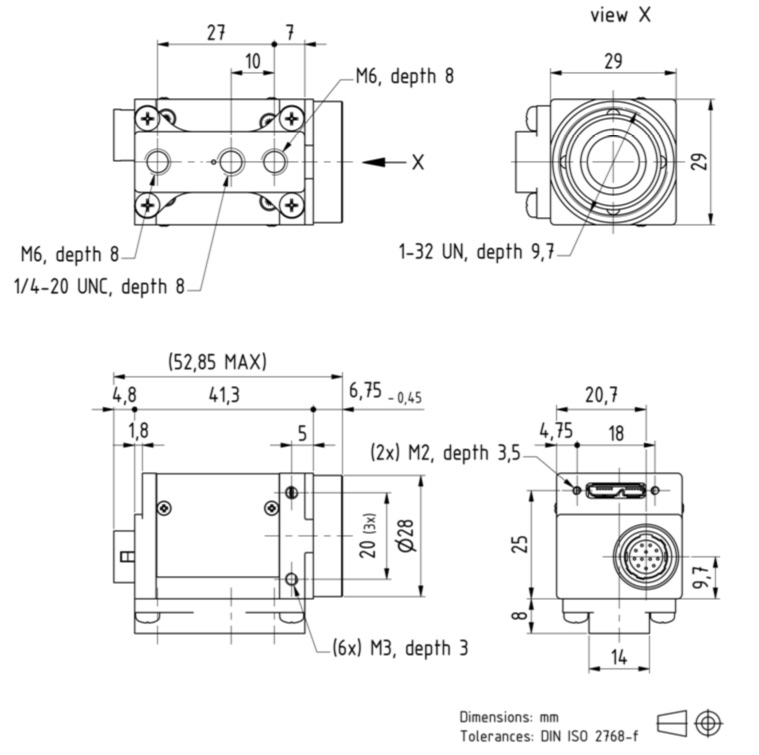

The Imaging Source DFK 33UX287 color camera has a USB 3.0 interface and is the perfect solution for many industrial automation, quality assurance, security, surveillance and medical applications. The color camera ships with the very sensitive 1/2.9 inch Sony CMOS PREGIUS IMX287LQR sensor. With up to 539 images per second, the DFK 33UX287 is a low cost, yet highly versatile imaging solution. The camera includes a Tripod and C-Mount to CS-Mount adapter, making it compatible to C and CS mount lenses. Using the optional CS to M12 board lens adapter, the camera is also compatible to M12 board lenses.

Features:

• USB 3.0 Interface
• 1/2,9 inch Sony CMOS Pregius Sensor (IMX287LQR)
• 720×540 (0,4 MP)
• up to 539 fps
• Global Shutter
• Trigger and I/O inputst
• Only 29×29×43 mm
• Compatible with C- and CS-Mount Lenses
• Manufactured by The Imaging Source
• Windows and Linux Software included

GENERAL BEHAVIOR
Vision-Standard
Dynamic range	12 bit
Resolution	720 x 540 (0,4MP)
Frame rate	539 fps
Video Output Format	8-Bit Monochrome, 8-Bit Bayer (RG), 12-BIT Bayer Packed (RG), 16-Bit Bayer (RG), YUV 4:2:2, YUV 4:1:1, RGB24
INTERFACE (OPTICAL)
IR Cut filter	✔
Sensor-Type	CMOS Pregius
Sensor-Specifications	Sony IMX287LQR
Shutter	global
Format	1/2.9 inch
Pixel-size	H: 6,9 µm, V: 6,9 µm
Lens Mount	C/CS
INTERFACE (ELECTRICAL)
Interface	USB 3.0
Supply-Voltage	4,75 VDC zu 5,25 VDC
Current-consumption	ca. 660 mA @ 5 VDC
Auto iris control	✖
Trigger	✔
I/Os	✔
INTERFACE (MECHANICAL)

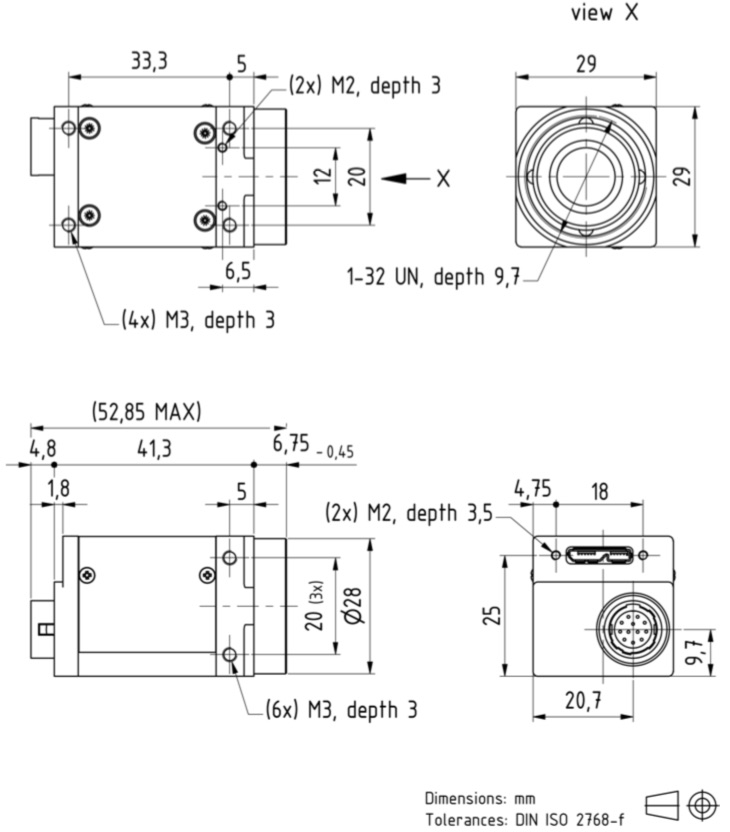

Dimension	H: 29 mm, B: 29 mm, L: 43 mm
Mass	65 g
ADJUSTMENT
Shutter	1/µs zu 30 s
Gain	0 dB zu 48 dB
ENVIRONMENTAL
Temperature (operating)	-5 °C zu 45 °C
Temperature (storage)	-20 °C zu 60 °C
Humidity (operating)	20 % zu 80 % (non-condensing)
Humidity (storge)	20 % zu 95 % (non-condensing
Subject to change
