50 mm C-Mount 6MP Lens Computar M5028-MPW3
- Order number: 303908
50 mm C-Mount 6MP Lens Computar M5028-MPW3 The M5028-MPW3 Machine Vision lens from... more
Product information "50 mm C-Mount 6MP Lens Computar M5028-MPW3"

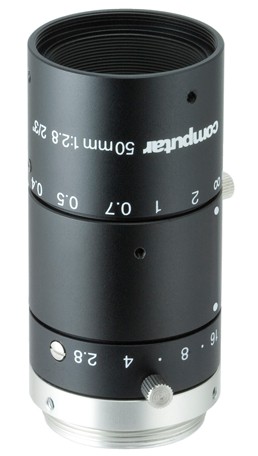

50 mm C-Mount 6MP Lens Computar M5028-MPW3
The M5028-MPW3 Machine Vision lens from Computar has a fixed focal length of 50mm and a resolution of 6 megapixels at max. 2.4μm. The C-mount lens is lightweight and impresses with its very compact design. Important factors such as very low distortion, reliable illumination right up to the edge and short working distances have been retained. It is suitable for sensors from 1/2.5 “to 2/3“ and optimized for the sensor types: IMX250, IMX264, ICX625, RJ32S4, EV2S05M, IMX178.
Key Features:
- 6 Megapixel
- C-Mount
- For 2/3" Sensor
- Compact Design
- Ligth Weight
- short Working Distance
- Ensure Corner Brigthness
- Nominal Distortion Design
| Focal length | 50mm |
| Max. Aperture Ratio | 1:2,8 |
| Max. Image Format | 8.8mm x 6.6mm (Ø11mm) |
| Iris Range | F2.8 - 16.0 |
| Focusrange | 0.3m - inf. |
| Iris control | manual |
| Focus control | manual |
| Angle of View at 2/3" (D / H / V) | D 12,5° x H 10,0° x V 7,5° |
| Angel of View at 1/1.8" (D / H / V) | D 10,2° x H 8,2° x V 6,2° |
| Angle of View at 1/2.5" (D / H / V) | D 8,1° x H 6,5° x V 4,9° |
| Distortion at 2/3" | 0.00% |
| Distortion at 1/1.8" | 0.00% |
| Distortion at 1/2.5" | 0.00% |
| Object Dimension at M.O.D. für 2/3" | 64.1 x 48.1 mm |
| Object Dimension at M.O.D. für 1/1,8" | 52.5 x 39.4 mm |
| Object Dimension at M.O.D. für 1/2.5" | 51.5 x 31.3 mm |
| Filter thread | M27 P=0.5mm |
| Mount | C-Mount |
| Weight | 65 g |

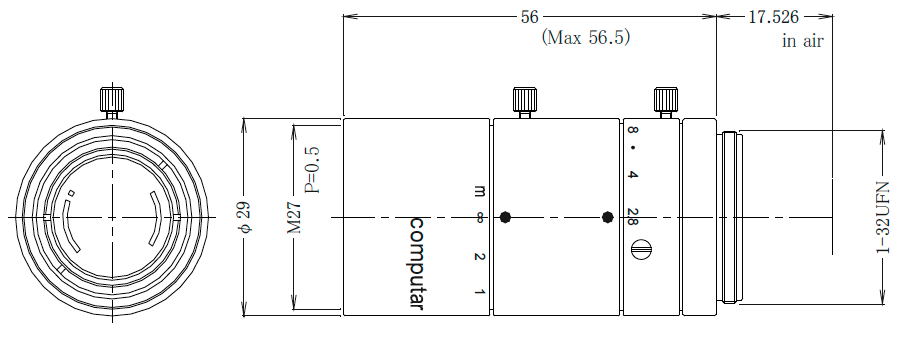

| Dimension in mm | Ø 29mm x 56.0mm |
| Operating Temperature | -10° - +50°C |
| Lens type: | Fixed Focal Length |
| M.O.D.: | 0,30 m |
| Sensor: | 1/1,8, 1/2,5, 2/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 50 mm |
| Resolution: | 6 Megapixel |
| Aperture: | 2,8, Manual Aparture |
| Filter Thread: | M27 x 0.5 |
| Image-Circle: | Ø 11.0 mm |
