50 mm C-Mount Lens Tamron M117FM50-RG / F2,4, 2,4µm
- Order number: 309988
50 mm C-Mount Lens Tamron M117FM50-RG The Tamron M117FM50-RG industrial... more
Product information "50 mm C-Mount Lens Tamron M117FM50-RG / F2,4, 2,4µm"

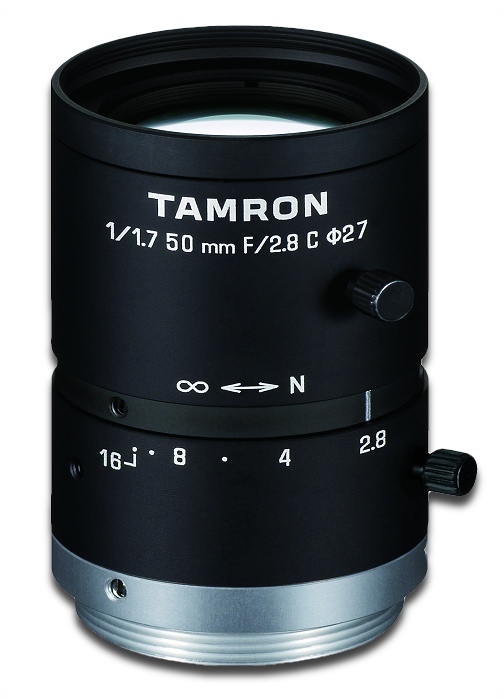

50 mm C-Mount Lens Tamron M117FM50-RG
The Tamron M117FM50-RG industrial lens is particularly characterized by its compact size and robust mechanical (ruggedized) design. At 2.4µm it has a resolution of 6 megapixels and is designed for sensors from 1/2" to 1/1.7" size. The C-mount lens has very little distortion and is ideal for demanding machine vision applications.
You will find an overview about the Tamron M117FM-RG machine vision lens series under the following link: click here
Key Features:
- 50 mm focal length
- C-mount
- 6 megapixels at 2.4 µm
- for sensors between 1/2" to 1/1.7"
- manual aperture
- robust mechanical design (ruggedized)
| Name | M117FM50-RG |
| Sensor Size | 1/1.7" |
| Mount | C-Mount |
| Pixel pitch | 2,4µm |
| Focal length | 50mm |
| Angle of View at 1/1.7" | 8,9° x 6,7° |
| Angle of View at 1/1.8" | 8,7° x 5,9° |
| Angle of View at 1/2" | 7,5° x 5,7° |
| Angle of View at 1/3" | 5,7° x 4,3° |
| Iris control | manual, with lock |
| Aperture Range | F2.4 - F16 |
| M.O.D. | 0.2m - ∞ |
| Focus control | manual, with lock |
| TV Distortion | -0,01% |
| Weight | 60g |
| Spectral range | visible light |
| Optical overall length | 50.51mm |
| Maximum Diameter Ø | 29,0mm |
| Operating Temperature | -20°C to +60°C |
| Filter thread | M27 P=0.5mm |
| Lens type: | Fixed Focal Length |
| pixel size: | 2.4 µm |
| M.O.D.: | 0,2 m |
| Sensor: | 1/1,8, 1/1.7, 1/2, 1/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 50 mm |
| Resolution: | 6 Megapixel |
| Aperture: | 2,4, Manual Aparture |
| F-theta Distortion (-%): | -0,01% |
| Filter Thread: | M27 x 0.5 |
