16 mm C-Mount Lens Tamron M117FM16-RG / F2,4, 2,4µm
€199.00 *
Prices plus 19% VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-2 days
All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
- Order number: 309985
16 mm C-Mount Lens Tamron M117FM16-RG The Tamron M117FM16-RG industrial... more
Product information "16 mm C-Mount Lens Tamron M117FM16-RG / F2,4, 2,4µm"

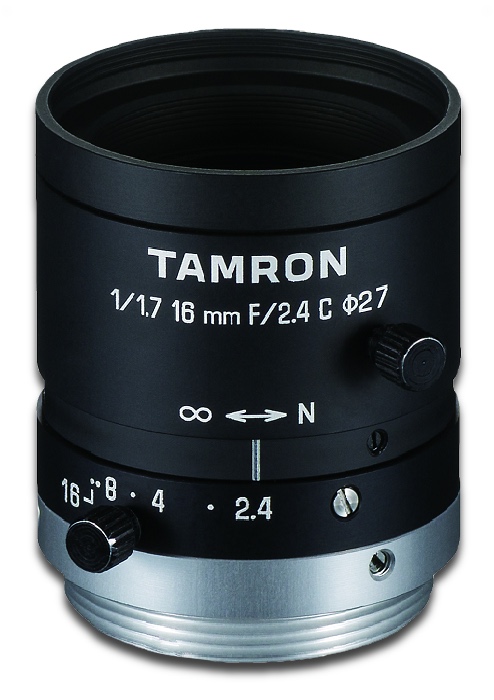

16 mm C-Mount Lens Tamron M117FM16-RG
The Tamron M117FM16-RG industrial lens is particularly characterized by its compact size and robust mechanical (ruggedized) design. At 2.4 µm it has a resolution of 6 megapixels and is designed for sensors from 1/2" to 1/1.7" size. The C-mount lens has very little distortion and is ideal for demanding machine vision applications.
You will find an overview about the Tamron M117FM-RG machine vision lens series under the following link: click here
Key Features:
- 16 mm focal length
- C-mount
- 6 megapixels at 2.4 µm
- for sensors between 1/2" to 1/1.7"
- manual aperture
- robust mechanical design (ruggedized)
| Name | M117FM16-RG |
| Sensor Size | 1/1.7" |
| Mount | C-Mount |
| Pixel pitch | 2,4µm |
| Focal length | 16mm |
| Angle of View at 1/1.7" | 26,1° x 19,7° |
| Angle of View at 1/1.8" | 25,7° x 17,4° |
| Angle of View at 1/2" | 22,3° x 16,8° |
| Angle of View at 1/3" | 16,8° x 12,6° |
| Iris control | manual, with lock |
| Aperture Range | F2.4 - F16 |
| M.O.D. | 0.1m - ∞ |
| Focus control | manual, with lock |
| TV Distortion | -0,42% |
| Weight | 40g |
| Spectral range | visible light |

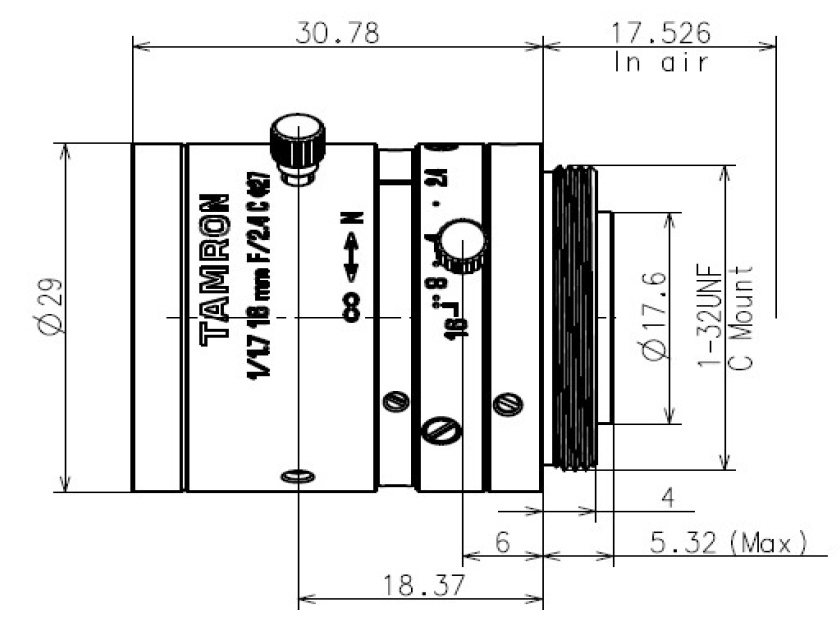

| Optical overall length | 36.1mm |
| Maximum Diameter Ø | 29,0mm |
| Operating Temperature | -20°C to +60°C |
| Filter thread | M27 P=0.5mm |
| Lens type: | Fixed Focal Length |
| pixel size: | 2.4 µm |
| M.O.D.: | 0,10 m |
| Sensor: | 1/1,8, 1/1.7, 1/2, 1/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 16 mm |
| Resolution: | 6 Megapixel |
| Aperture: | 2,4, Manual Aparture |
| F-theta Distortion (-%): | -0,1% |
| Filter Thread: | M27 x 0.5 |
