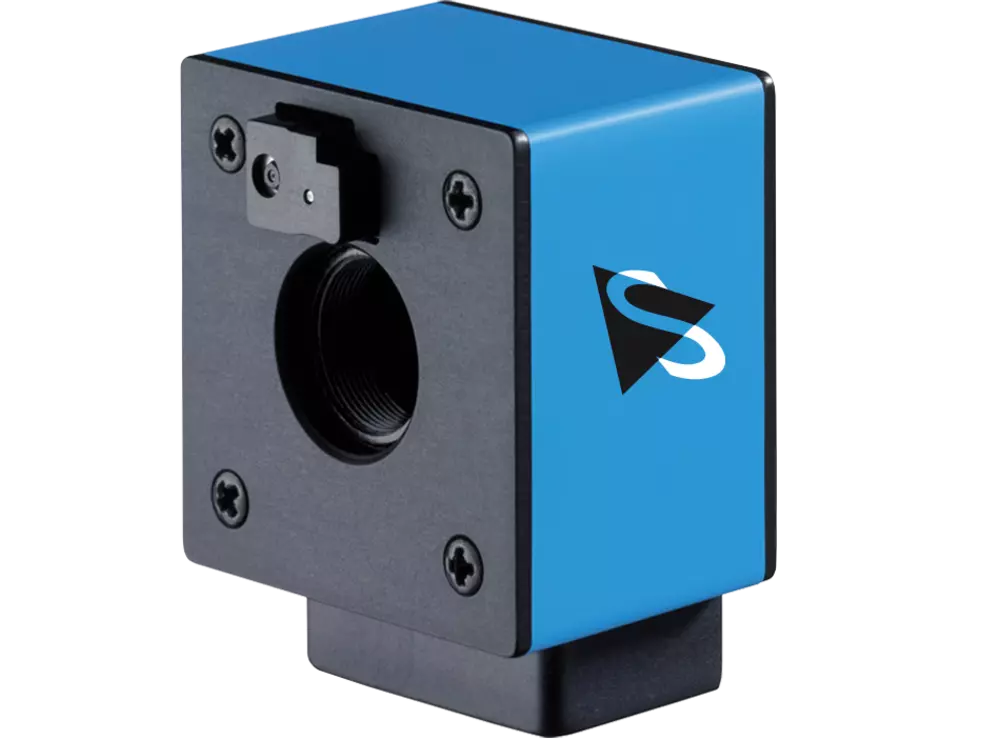

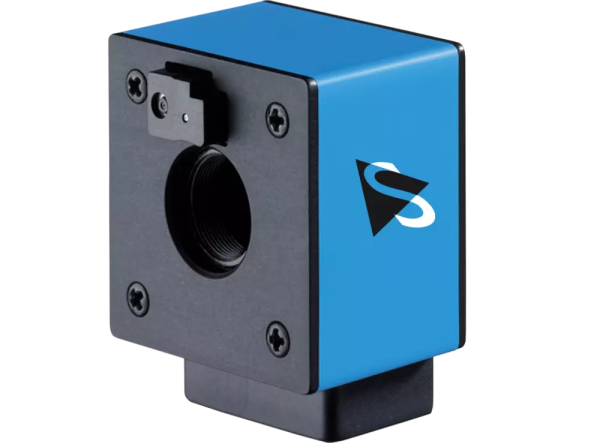

The Imaging Source DFK AFUJ003-M12

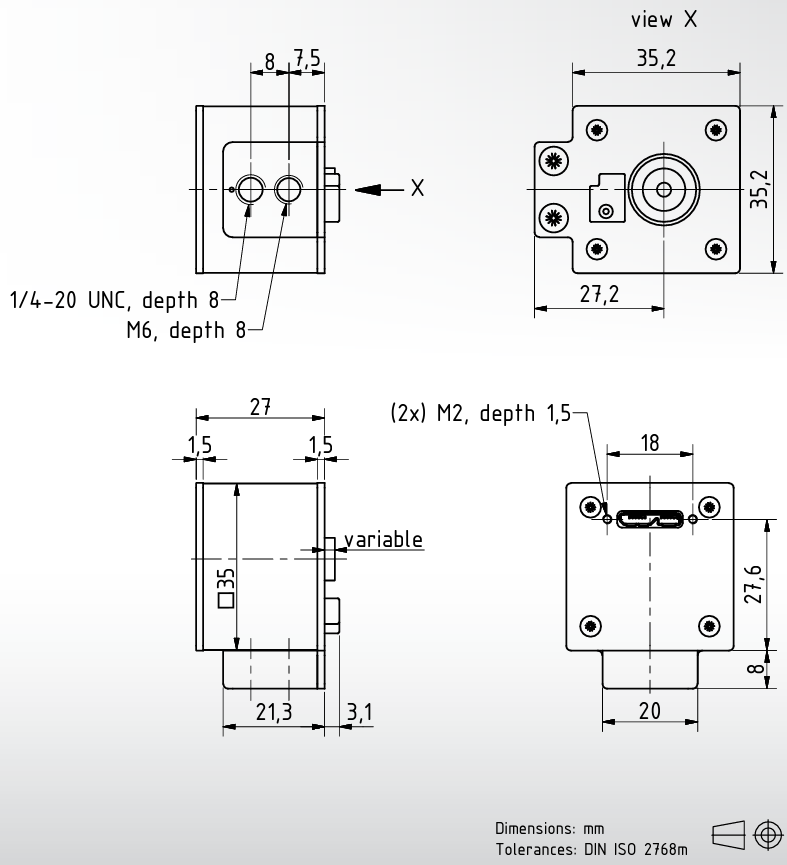

The Imaging Source DFK AFUJ003-M12 technical Drawing

Preise auf Anfrage.

Order number: 310091

The Imaging Source DFK AFUJ003-M12 AFU Series Color Autofocus Camera USB 3.0-Interface... more

Close menu

Product information "USB 3.0 color autofocus camera industrial camera DFK AFUJ003-M12 The Imaging Source"

The Imaging Source DFK AFUJ003-M12

AFU Series Color Autofocus Camera
USB 3.0-Interface
1/2.3 inch onsemi CMOS MT9J003 Sensor
3,856×2,764 (10.7 MP), up to 7 fps
Pixel size: H: 1,67 µm, V: 1,67 µm
Rolling Shutter
only 36×36×30 mm

Description DFK AFUJ003-M12

The DFK AFUJ003-M12 from The Imaging Source is an outstanding USB 3.0 industrial camera with a resolution of 10.7 megapixels and up to 7fps. With its compact design and possibility to Mount M12 lenses, it is ideal for demanding applications in industrial image processing. This machine vision camera offers precise imaging capabilities and premium performance. As an industrial camera with autofocus function, it is perfect for projects in which variable working distances and object sizes play an important role. Experience reliability and precision with the DFK AFUJ003-M12.

Lens-Mount:	S-Mount M12x0,5
Sensor:	1/2,3
USB Port:	USB 3.0 Micro B
Input Interface:	USB 3.0
Shutter:	Rolling-Shutter
Sensortyp:	CMOS
Camera Type:	Autofokus, color
Sensor-Hersteller:	ONSEMI
pixel size:	1.67 μm
Framerate:	7 fps
Trigger connection:	-
Resolution:	10,7 Megapixel
Resolution (h x v):	3856 x 2764

Related links to "USB 3.0 color autofocus camera industrial camera DFK AFUJ003-M12 The Imaging Source"

Read, write and discuss reviews... more

Close menu

Customer evaluation for "USB 3.0 color autofocus camera industrial camera DFK AFUJ003-M12 The Imaging Source"

Write an evaluation

Evaluations will be activated after verification.

Datasheet

technical Specifications

The Imaging Source DFK AFUJ003-M12

General Behavior

Dynamic Range

8 / 12 bit

Video formats @ Frame Rate (Maximum)

3,856×2,764 (10.7 MP) Y800 @ 7 fps

3,856×2,764 (10.7 MP) Y16 @ 4 fps

3,856×2,764 (10.7 MP) RGB32 @ 7 fps

Interface (Optical)

Sensor Type

CMOS

Sensor Specifications

onsemi MT9J003

Shutter

Rolling

Format

1/2,3 inch

Pixel Size

H: 1,67 µm, V: 1,67 µm

Lens Mount

M12x0.5 (motorized mount)

Interface (Electrical)

Interface

USB 3.0

Supply Voltage

4,5 VDC to 5,5 VDC

Current Cosumption

Approx. 250 mA @ 5 VDC

Auto-Iris-Control

Trigger

I/O

Interface (mechanical)

Dimensions

H: 36 mm, B: 36 mm, L: 30 mm

Weight

70 g

Adjustments

Shutter

15µs to 30s

Gain

0dB to 36dB

White Balance

-2dB to 6dB

Environmental

Temperature (Operating)

-5 °C to 45 °C

Temperature (Storage)

-20 °C to 60 °C

Humidity (Operating)

20 % to 80 % (non-condensing)

Humidity (Storage)

20 % to 95 % (non-condensing)
