Magewell Pro Convert for NDI to HDMI

€421.27 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 7 - 14 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 310023
Pro Convert for NDI to HDMI Converts a live NDI® stream into HD HDMI signal Part... more
Product information "Magewell Pro Convert for NDI to HDMI"

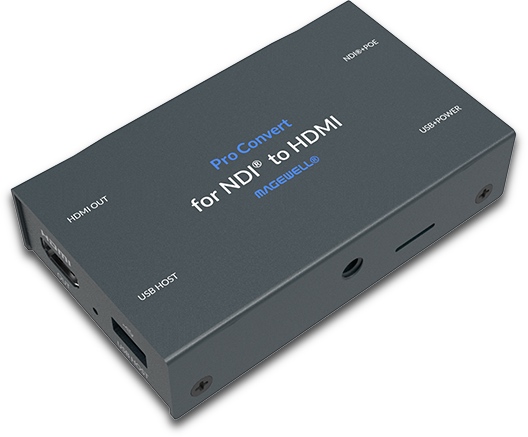

Pro Convert for NDI to HDMI


Converts a live NDI® stream into HD HDMI signal
Part number:
64100 US; 64102 EU; 64103 UK;
64104 AU; 64105 KR; 64106 JP
The device is supplied with different options of power adapters.
SKU:
641000000 (for US/EU/UK/AU/JP users);
641000006 KR

  • VConnects baseband presentation or distribution equipment into IP-based media networks
  • Decodes Full NDI and NDI|HX including earlier variants into HD HDMI
  • Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays

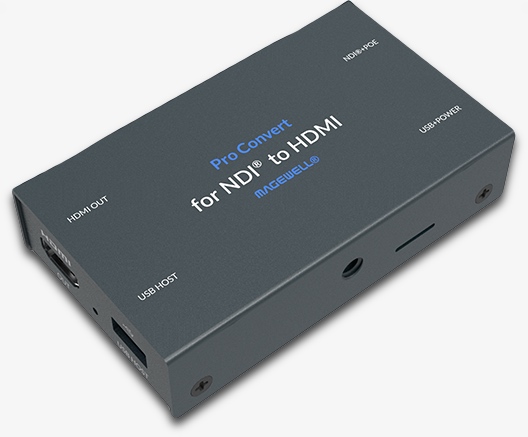

Magewell-Pro-Convert-for-NDI-to-HDMI_6
The Magewell Pro Convert for NDI to HDMI is a network decoder / converter that provides network streams for output to e.g. monitors, projectors, video walls. For more information about Magewell's Pro Convert Family, please refer to the following link: Click Here

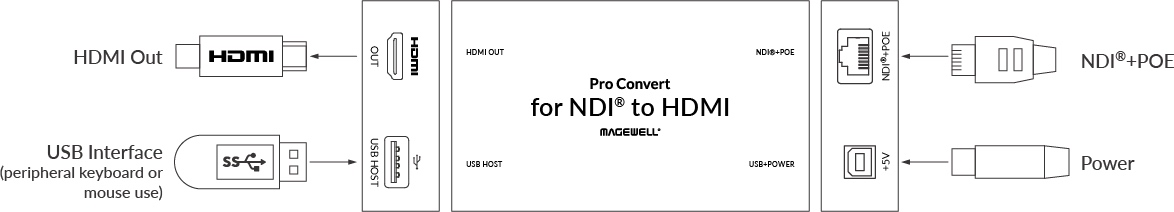

Interface


Magewell-pro-convert-for-ndi-to-hdmi-interface

Specifications and Features


Output Features
  • Support for up to 4096x2160 60fps HDMI output
    (integrated up-conversion from HD sources))
  • Support for 96KHz, 16-bit 8-channel audio streams
Decoding Features
  • Support for decoding up to 2K 60fps NDI streams
  • Support for decoding full NDI® and NDI®|HX
  • Support for NDI 5.x
  • Discover NDI devices across network segments
  • KCompatible with H.264/H.265 streams in additional protocols including RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP
Features & Advantages
  • Very low latency
  • Advanced configuration and device status through intuitive Web GUI, keyboard/mouse, or on-board controls
  • HTTP-based APIs for custom integration
  • Image flip for inverted projector installations and safe area controls
  • Automatic output optimization for target display with integrated up/down conversion
Accessory

(Included)


Magewell-power-adapter-98017-commonocZEfpzDo6ojK
1x Power Adapter (US/EU/UK/AU/JP)
Part number: 98017
convert-usb-cable-90065yXswIo9NNqSYf
1x USB Type A to B Type cabel
Part number: 90065
ConvertLBracketcwihOTBcoyZsg
1x L-Bracket
Part number: 92240
Input Interface: hdmi, NewTek NDI, USB 2.0, USB 3.0
Video Input: Ethernet
Related links to "Magewell Pro Convert for NDI to HDMI"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "Magewell Pro Convert for NDI to HDMI"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

User Manual
FAQ
FAQ​
technische Spezifikationen ​

Magewell Pro Convert for NDI to HDMI technical Spezifications

technical specifications and characteristics


Output Features
Max output: 4096x2160 60fps 4:4:4 8-bit
Delivering video at the preferred video format according to the EDID of the connected monitor. Supported output formats include:
  • 4096x2160p/3840x2160p 23.98/24/25/29.97/30/50/59.94/60
  • 2560x1440p 60/100
  • 2560x1080p 23.98/24/25/29.97/30/50/59.94/60
  • 1920x1080p 23.98/24/25/29.97/30/50/59.94/60/100/119.88/120
  • 1920x1080i 50/59.94/60
  • 1280x720p 23.98/24/25/29.97/30/50/59.94/60
  • 720x576p50
  • 720x576i50
  • 720x480p59.94/60
  • 720x480i59.94/60
Support 48KHz 8-channel audio output

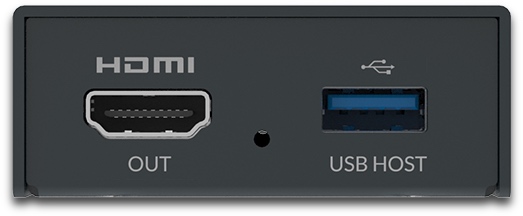

HDMI interface: HDMI 1.4/2.0

Decoding Features
Decoding up to 2Kp60 streams of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push and MPEG-TS over UDP/SRT/RTP protocols
H.264/H.265 video decoders
AAC/MP3 audio decoders
Support NDI 5.x

Configuration Management
Register with Magewell Cloud
Remote control via WebUI and Magewell Cloud
Provide comprehensive information regarding the device and decoded signals in real-time Allow to configure how a signal is decoded and output, including OSD settings, deinterlacing, resolutions, audio gain, sample rate, and channel mapping, as well as the network connection
Update firmware
Support USB RNDIS/ECM
Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers
Provide HTTP APIs

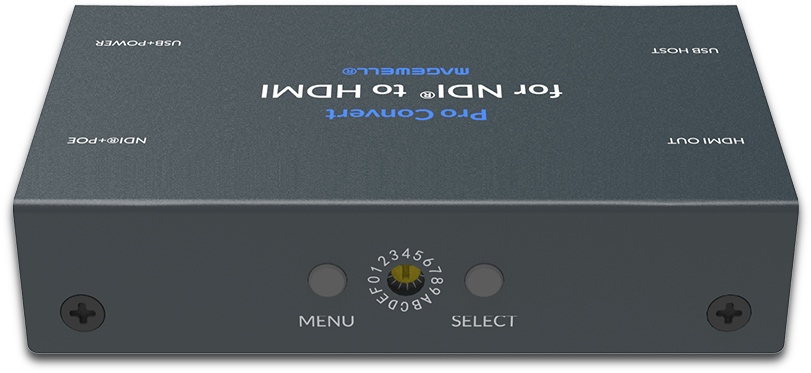

On-board Control Buttons
MENU: press to display the menu, or cycle through the options
SELECT: press to display the menu, enter current option, or confirm the selection
16 Position Rotary DIP Switch: set board-index from 0 to F

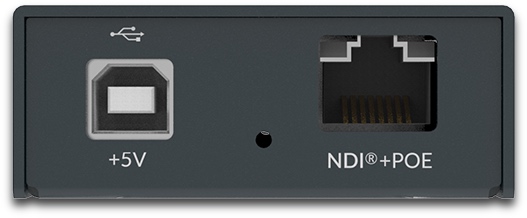

Network Interfaces
10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB-Interface
USB2.0 Type B
  • 5V/2,1A power supply
  • USB RNDIS/ECM
USB3.0 Type A
  • Connecting peripherals (keyboard and/or mouse) to customize the video and audio settings

LED-Indicators
Power LED status indicator
  • On: power connected
  • Off: power unconnected
Decode LED status indicator
  • On: decoding
  • Blinks: decoding error
  • Off: source unselected

Form Factor
100.9mm (L) x 60.2mm (W) x 23.3mm (H)

Accessories
USB 2.0 A to B cable
5V/2.1A power adaptor
L-Bracket

Screw Mounting Hole
¼–20 threaded hole

Power Consumption
5V max current: ~1.1A
Max power consumption: ~5W

Working Environment
Operating temperature: 0 to 40 deg C
Storage temperature: –20 to 70 deg C
Relative humidity: 5% to 90% non-condensing
