Magewell Pro Capture Quad HDMI

869,00 € *

zzgl.16% MwSt.zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-2 Tage

Alle Preise sind Listenpreise zzgl. 16% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303026
  Die Pro Capture Quad HDMI Karte ist die ideale Lösung für Anwendungen, für die... mehr
Produktinformationen "Magewell Pro Capture Quad HDMI"

Pro-Capture-QUAD-HDMI-Capture-Card



Die Pro Capture Quad HDMI Karte ist die ideale Lösung für Anwendungen, für die Erfassung von Quad-HDMI-Quellen sowie embedded Audio (x4) in Echtzeit. Typische Anwendungen sind: Anzeigen von HDMI-Quellen von PCs, Macs, industriellen und medizinische Geräte, Kameras, Spielkonsolen und anderer Videoausrüstung. Hierzu gehört auch das Streamen von Videos oder Broadcasting-Anwendungen.

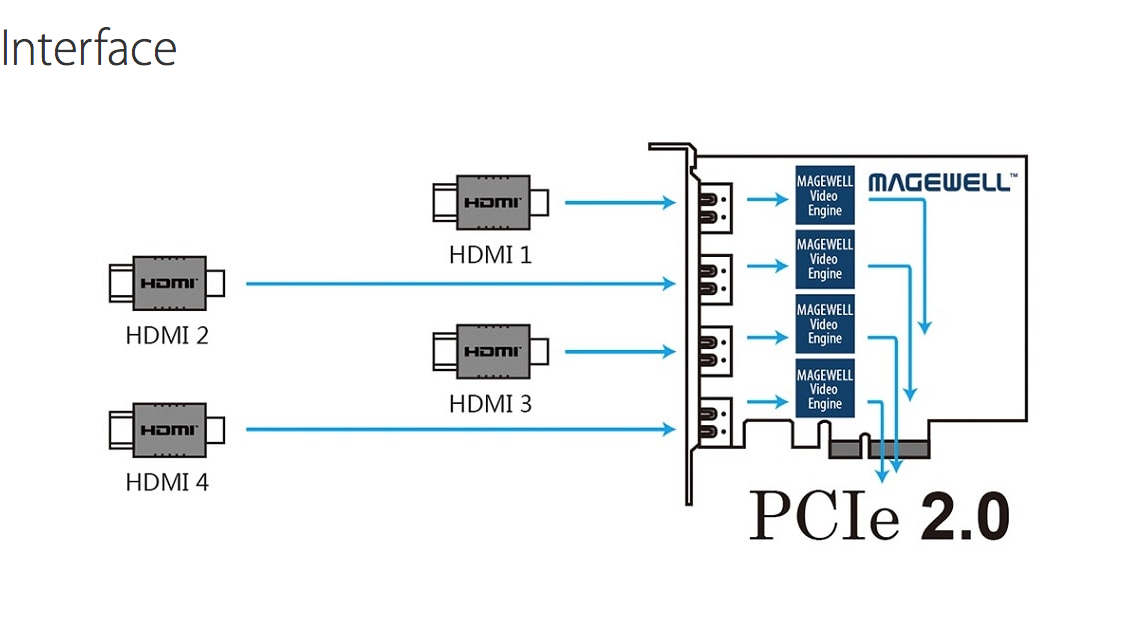

Pro-Capture-QUAD-HDMI-Capture-Card-PCIe-2-0

Pro-Capture-QUAD-HDMI-Capture-Card-Features

Video-Eingang: HDMI
Geräteanschluss: PCI Express
Weiterführende Links zu "Magewell Pro Capture Quad HDMI"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro Capture Quad HDMI"
15.04.2020

Besser gehts nicht!

Vorbildlicher Service. Top Ware. Top Preise. Mega schnell geliefert. Die Karte hält was Sie verspricht :)

07.04.2020

Sehr gutes Produkt, funktioniert perfekt mit OBS Studio

Ich verwende die Magewell Pro Capture Quad HDMI-Karte, um vier Live-Videoquellen mit unterschiedlichen Bildformaten und -frequenzen (2 x HD-Kamera, Laptop, MS Surface Tablet) zum Video-Recording und Streaming in OBS-Studio-Szenen einzubinden. Die Inbetriebnahme war in wenigen Minuten erledigt: Karte einstecken, aktuelle Treiber von der Magewell-Website holen und installieren, sofort sind vier neue Kamera-Quellen mit den Namen "Video (00-x Pro Capture Quad HDMI" (x = 0, 1, 2, 3) in Windows verfügbar. Funktioniert perfekt mit OBS Studio für alle angeschlossenen Videoquellen und Bildformate.
Bestellannahme und Lieferzeit: sehr gut.

16.11.2017

Gute Karte, guter Service

Die CaptureCard von Magewell funktioniert auf Anhieb und nimmt alle HDMI-Signale entgegen.
Vision Dimensions Reaktions/Lieferzeiten sind vorbildlich.

Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specifications​

Specifications

Supported OS
  • Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64)
  • Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs
  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
Supported Software
  • VLC
  • VirtualDub
  • OBS
  • xSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces
  • 4x HDMI type A
    • DVI 1.0
    • HDMI 1.4a
Output Interfaces
  • PCIe Gen2 x4
Input Features
  • Support for input video resolutions up to 2048×2048 pixels
HDMI Specific Features
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
Video Output Formats
  • Support for output image resolutions up to 2048×2048 pixels
  • Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
  • Support for 4:2:0 8-bit output formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit output formats: V410, Y410
  • More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
  • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Wave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of output aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video OSD composition
    • Support for PNG OSD image (up to 2048×2048)
    • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams
  • Unlimited output streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
  • Latency of 64 video lines
  • Partial notification mode in SDK
Timestamp & A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA
  • ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
  • ~200MB/s per channel DMA bandwidth in PCIe 1.0 system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets
SDK
  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks
  • All options can be controled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor
  • Normal profile PCIe x4 Add-on Card
  • 112.15mm x 102.92mm (without PCI bracket)
Power Consumption
  • Max current at 12V ~1.1 A
  • Max current at 3.3V ~0.9 A
  • Max power consumption ~15.9 W
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
