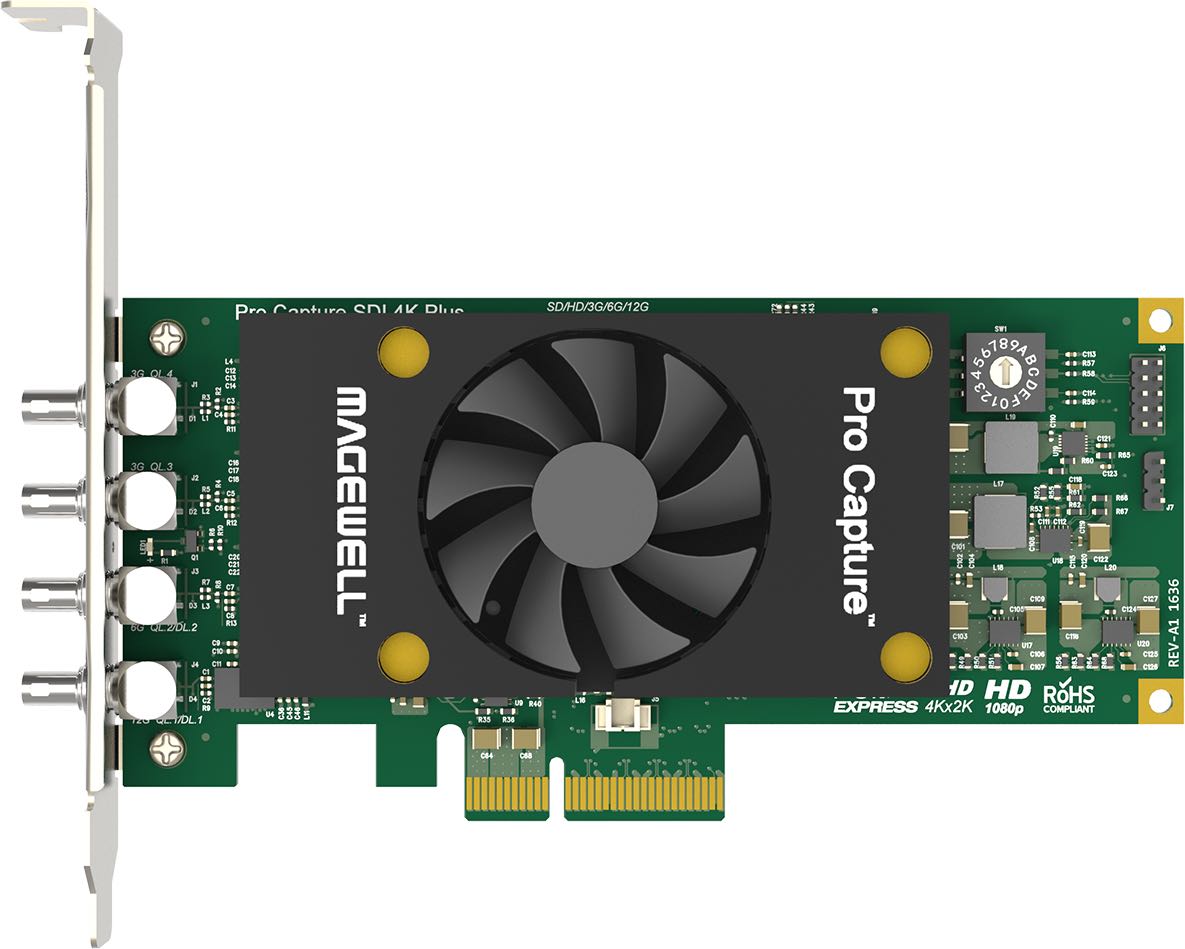

Magewell Pro Capture SDI 4K Plus

987,77 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303584
Der Pro Capture SDI 4K Plus von Magewell erfasst 4K-Videos mit 60 Bildern pro Sekunde über... mehr
Produktinformationen "Magewell Pro Capture SDI 4K Plus"

Magewell-Pro-Capture-SDI-4K-Plus_Banner-1

Der Pro Capture SDI 4K Plus von Magewell erfasst 4K-Videos mit 60 Bildern pro Sekunde über eine Single-Link-12G-SDI-, Dual-Link- 6G-SDI- oder Quad-Link-3G-SDI-Anbindung. Damit bietet der Pro Capture 4K Plus Grabber Anwendern und Systemintegratoren eine außergewöhnliche Flexibilität und Kompatibilität. Als sechstes 4K-fähiges Mitglied der Pro Capture-Familie unterstützt die neue Karte Auflösungen von bis zu 4096x2160 4K-Digital-Cinema und schließt das Ultra HD (UHD) -Fernsehstandard 3840x2160 mit ein. Der Video-Input kann zusammen mit eingebettetem SDI-Audio-Signalen gleichzeitig an mehreren Softwareanwendungen zugeführt werden, wobei die Auflösung, die Bildrate und die Videoverarbeitungseinstellungen für beide unabhängig voneinander gesteuert werden. Die 10-Bit-FPGA-basierte Videoverarbeitung bietet qualitativ hochwertige Up- / Down- / Cross-Konvertierung, Bildanpassungen, Grafik-Overlay und vieles mehr, ohne die Host-System-CPU zu beanspruchen.

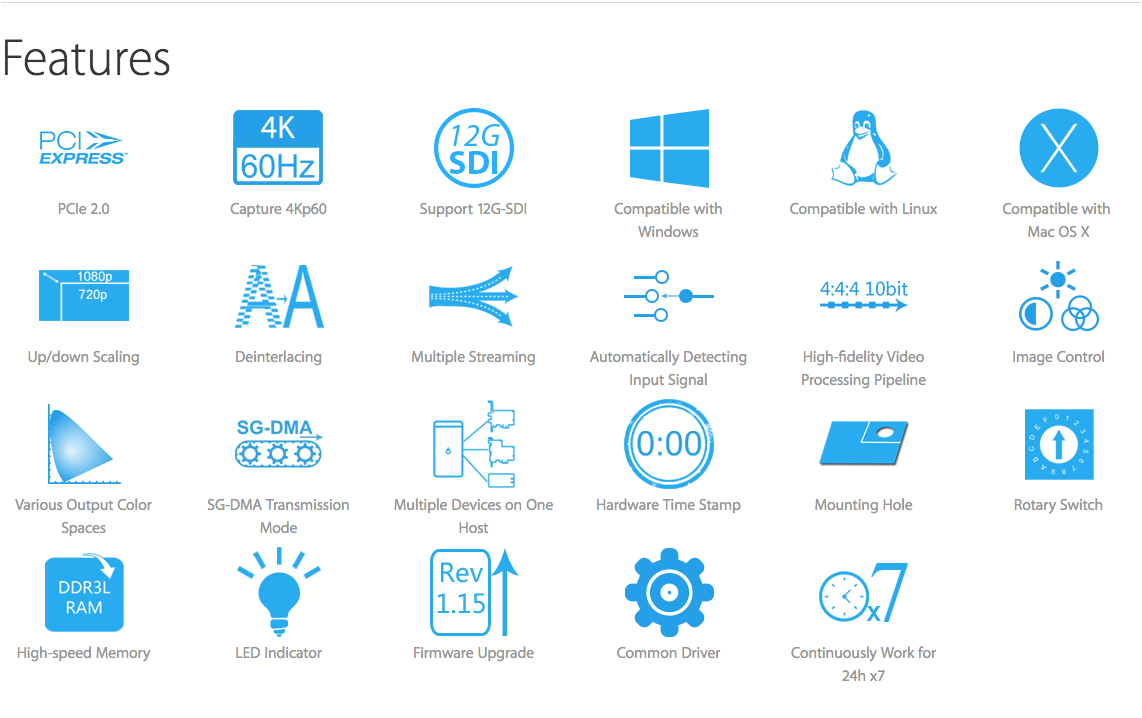

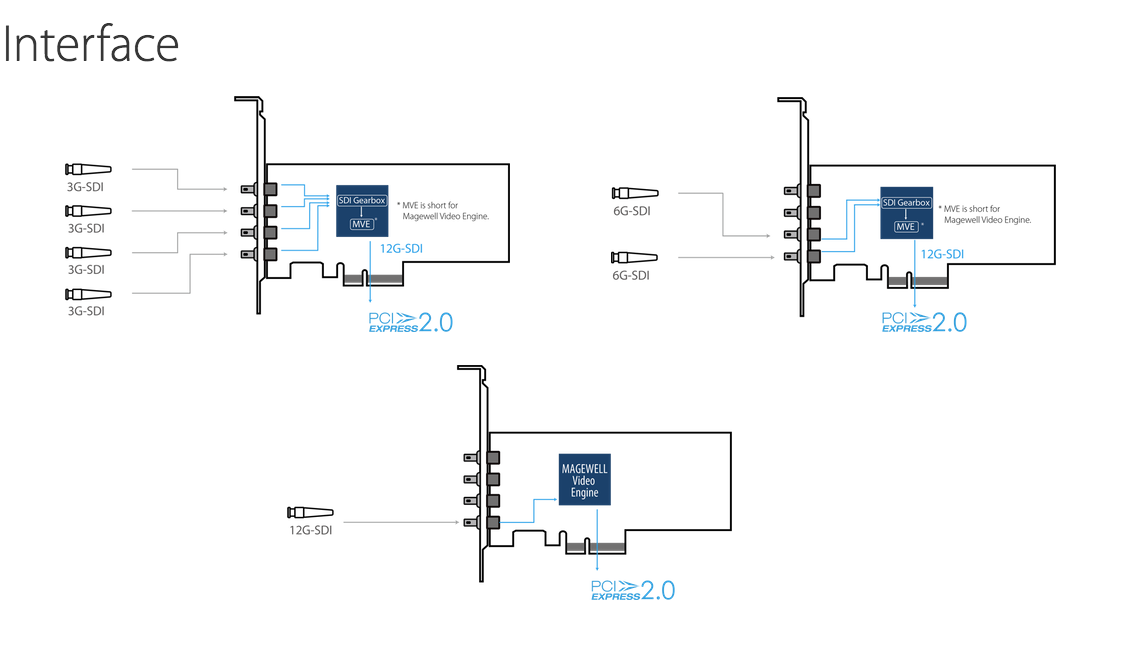

Pro-Capture-SDI-4K-Plus_InterfacePro-Capture-SDI-4K-Plus_Features

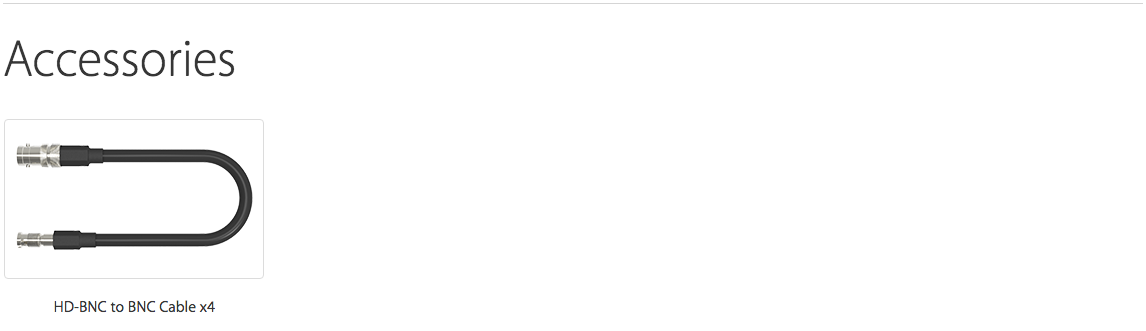

Pro-Capture-SDI-4K-Plus_Accessories

Video-Eingang: SDI
Geräteanschluss: PCI Express
Weiterführende Links zu "Magewell Pro Capture SDI 4K Plus"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro Capture SDI 4K Plus"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Datasheet​
Specifications​

Specifications

Supported OS
  • Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
  • Linux (based on V4L2,supports x86, x64 & ARM architecture)
  • OS X 10.9–10.11
  • macOS 10.12
Supported APIs
  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
Supported Software
  • VLC
  • VirtualDub
  • OBS
  • xSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

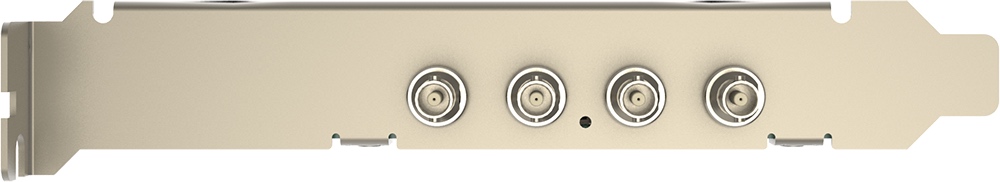

Input Interfaces
  • HD-BNC x4
    • Two connectors are compatible with SD/HD/3G SDI
    • One connecter is compatible with SD/HD/3G/6G SDI
    • One connecter is compatible with SD/HD/3G/6G/12G SDI
    • Support for input of Single Link, Dual Link, Quad Link
Host Interfaces
  • PCIe Gen2 x4
Input Features
  • Support for input video resolutions up to 4096×2160 pixels
  • Auto detection of Single Link, Dual Link, Quad Link
SDI Specific Features
  • Integrated cable equalizer supporting cable lengths up to 230M for HD signals
  • Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS/6G/12G
  • Support for 2K (2048×1080) & 4K (4096×2160) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 (mono) audio channels at 48KHz
  • Support for extraction of audio formation information & channel status data
Video Capture Formats
  • Support for capture image resolutions up to 4096×2160 pixels
  • Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit capture formats: V410, Y410
  • More capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
  • Two video processing pipelines with ~720 Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of capture aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of capture color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video OSD composition
    • Support for PNG OSD image (up to 4096×2160)
    • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display “01: Pro Capture SDI 4K+” when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Capture Streams
  • Unlimited capture streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
  • Latency of 64 video lines
  • Partial notification mode in SDK
Timestamp & A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA
  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets
SDK
  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks
  • All options can be controled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
  • Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor
  • Low profile PCIe x4 Add-on Card
  • 140mm x 68.88mm (without PCI bracket)
Power Consumption
  • Max current at 12V: TBD
  • Max current at 3.3V: TBD
  • Max power consumption: TBD
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
