Magewell Eco Capture Dual SDI M.2

349,17 € *

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Artikel-Nr.: 303550

Magewell´s Eco Capture Dual SDI M.2 verfügt über eine Hochgeschwindigkeits-PCIe... mehr

Menü schließen

Produktinformationen "Magewell Eco Capture Dual SDI M.2"

1_Eco-Capture-Dual-SDI-M-2_Banner

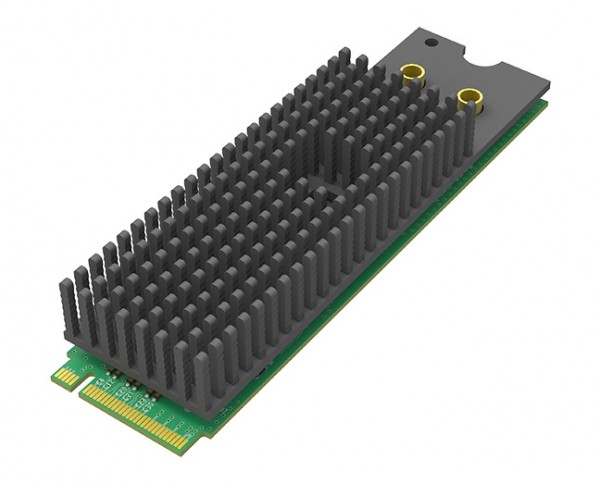

Magewell´s Eco Capture Dual SDI M.2 verfügt über eine Hochgeschwindigkeits-PCIe 2.0-Busschnittstelle mit einem M.2-Anschluss, der die Aufzeichnung von Mehrkanal-HD ermöglicht. Der Dual-Channel Eco Capture Dual SDI M.2 erfasst HD- oder 2K-Videos bis zu 1080p60 über eine SDI-Schnittstelle und unterstützt eingebettete Audiosignale.

Die Magewell Eco Capture Modelle messen jeweils 22x80mm, passend zur M.2 2280 Standard Spezifikation. Der Energieverbrauch der Eco Capture-Karten fällt 30% bis 70% niedriger aus (je nach Modell) als vergleichbare Magewell Pro Capture-Karten-Modelle mit ähnlicher Eingangssignal-Konnektivität.

Die Stream-Replikation ermöglicht es, dass jeder Eingangskanal gleichzeitig mit identischen Capture-Parametern an mehrere Software-Applikationen ausgeliefert wird, so dass gleichzeitige Funktionalität wie Codierung, Aufzeichnung und Vorschau durch verschiedene Tools ermöglicht wird. Hochwertige Videobearbeitungsfunktionen inklusive Auf- / Abwärts- / Cross-Skalierung, Bildsteuerung und Farbraumumwandlung werden durch das Onboard-FPGA der Karten durchgeführt, wodurch die CPU-Auslastung reduziert wird, während zusätzliche Prozesse wie Frame Rate Conversion und De-Interlacing zur Verfügung stehen.

Die M.2 Eco Capture Modelle stehehn mit Treibern für Windows und Linux Betriebssysteme zur Verfügung. OS-native Capture-APIs wie DirectShow, DirectKS, V4L2 und ALSA werden unterstützt, während ein umfassendes SDK für Entwickler angeboten wird, um direkt auf die volle Funktionssatz der Karten zuzugreifen.

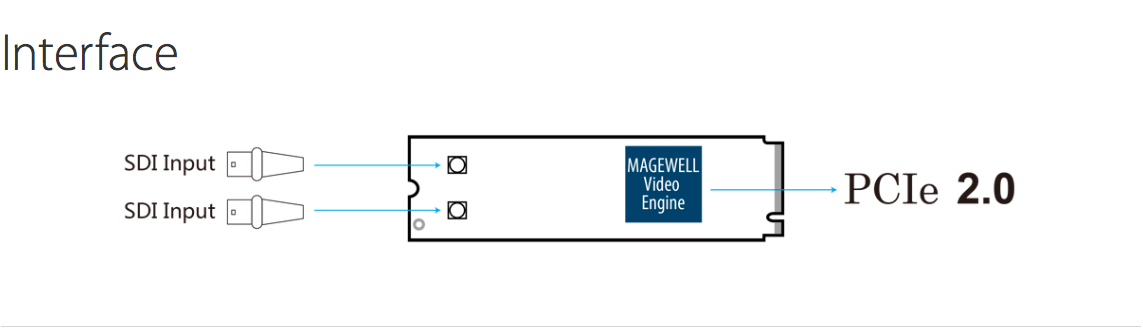

1_Eco-Capture-Dual-SDI_Interface

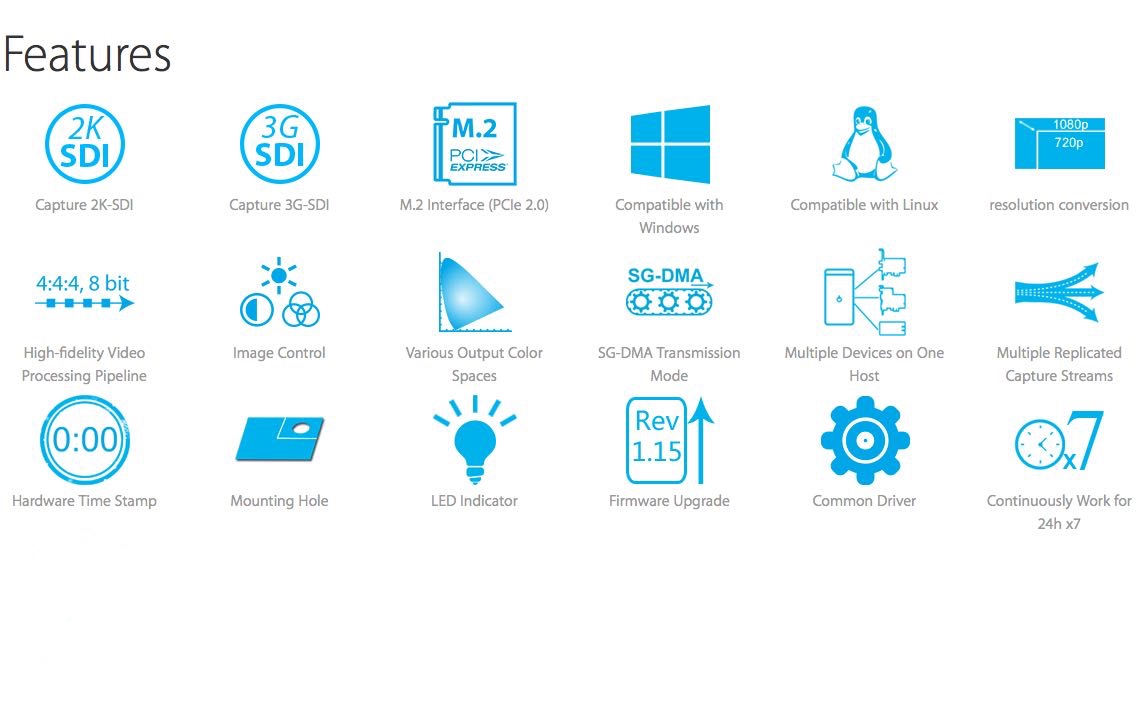

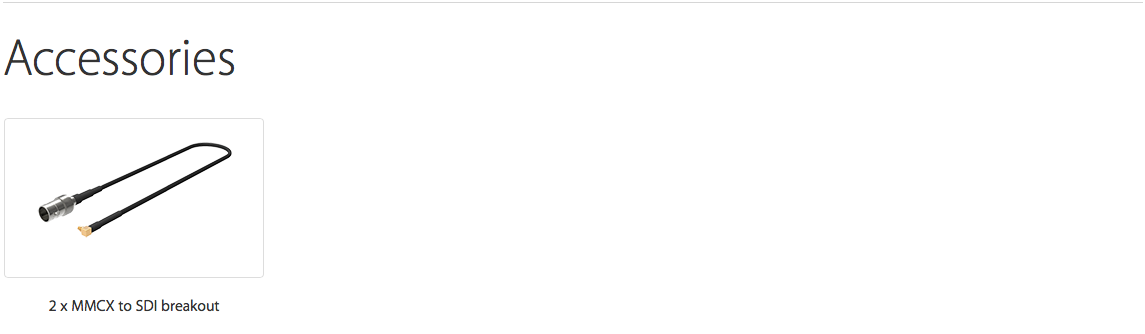

1_Eco-Capture-Dual-SDI_Features 1_Eco-Capture-Dual-SDI_Accessories

Video-Eingang:	SDI
Geräteanschluss:	M.2 2280 Type M (PCIe Gen2 x4)

Weiterführende Links zu "Magewell Eco Capture Dual SDI M.2"

Verfügbare Downloads:

Download Datasheet

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Eco Capture Dual SDI M.2"

Von: Alberto Am: 22.01.2018

Great capture device

Device comes with 2 mmcx to sdi cables. Shows bars when no input is detected. Working fine under windows 10 after installing drivers. Pretty plug and play.
Great service, fast delivery. Will buy again. Thanks.

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Datasheet

Schliessen

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (based on V4L2，support x86，x64 & ARM architecture)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	2x MMCX SD/HD/3G SDI
Host Interface	M.2 2280 Type M (PCIe Gen2 x2)
Input Features	Support for input video resolutions up to 2048×1080 pixels
SDI Specific Features	Integrated cable equalizer supporting cable lengths up to 230M for HD signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 8 (mono) audio channels at 48KHz Support for extraction of audio formation information & channel status data Limited support of 3Gb-DS: only the first stream can be captured Limited support for capture of the first link of dual link interfaces: YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60 YCbCr 4:4:4 10-bit: captured as 4:2:2 RGB 4:4:4: R/B sub-sampled
Video Capture Formats	Support for output image resolutions up to 2048×1080 pixels Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. For the resolution of 1280×1024 and higher, the actual frame rate may be limited by the onboard video processing hardware pixel clock. For example, the maximum frame rate of 1920×1080 resolution can up to 80fps.) Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32 More output formats are supported via Magewell Capture SDK for DirectKS
Video Processing Features	Video processing pipelines with ~180Mpixels/s processing bandwidth 8-bit 4:4:4 video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion
Multiple Cards per System	Support for multiple cards plugged to one system On-board rotary switch to set card number with 16 positions System hardware device tree will display “01: Eco Capture Dual SDI M.2” when rotary switch is set to 0001, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Replicated Capture Streams	Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.x system ~200MB/s per channel DMA bandwidth in PCIe 1.x system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Magewell Capture SDK for DirectShow for easy integration (Windows) Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed) Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	M.2 2280 standard size
Accessories	2 X MMCX to BNC cables
Power Consumption	Max current at 3.3V: ~ 1.00 A Max power consumption: ~ 3.38 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
