USB 3.1 Color Industrial Camera DFK 37AUX250 The Imaging Source

Preise auf Anfrage.
  • 309956
USB 3.1 Color Industrial Camera DFK 37AUX250 The Imaging Source   The Imaging... more
Product information "USB 3.1 Color Industrial Camera DFK 37AUX250 The Imaging Source"

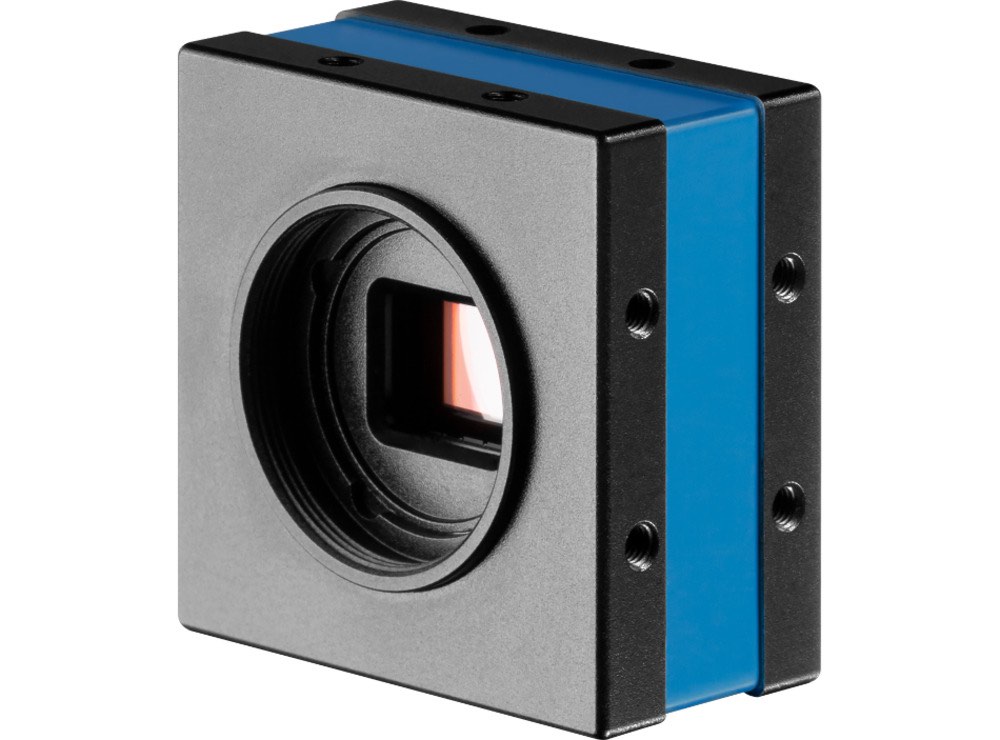

USB 3.1 Color Industrial Camera DFK 37AUX250 The Imaging Source




The Imaging Source DFK 37AUX250 industrial camera has a USB 3.1 connector and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with highly sensitive, low-noise Sony Pregius global shutter sensors, the cameras offer exceptional image quality and high color fidelity and are therefore particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens adapter, the camera is also compatible with M12 mini lenses.

To get an overview about the series: click here

Features:

  • USB 3.1 Interface
  • 2/3 inch Sony CMOS Pregius Sensor (IMX250LQR)
  • 2.448×2.048 (5 MP)
  • up to 75 fps
  • Global shutter
  • just 42 x 42 x 25 mm
  • Manufactured by The Imaging Source
  • Windows and Linux Software included



GENERAL BEHAVIOR
Vision-Standard USB3 Vision ist der Schnittstellenstandard für die Implementierung der USB 3.0-Schnittstelle in der industriellen Bildverarbeitung.
Dynamic range 12 bit
Resolution 2.448×2.048 (5 MP)
Frame rate up to 75 fps
Video Output Format 8-Bit Bayer (RG), 16-Bit Bayer (RG)
INTERFACE (OPTICAL)

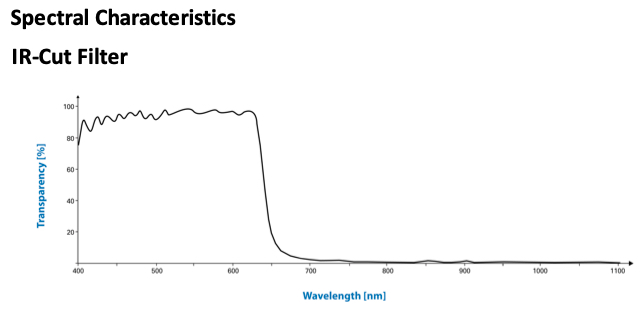

IR-Cut filter  ✔
Sensor-type CMOS Pregius

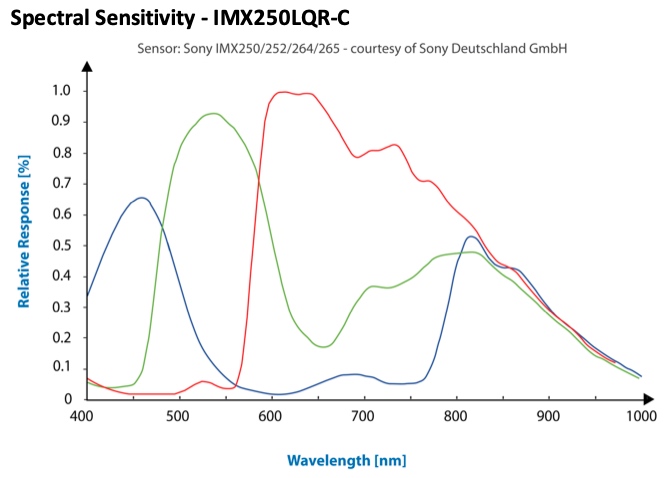

Sensor-Specifications Sony IMX250LQR
Shutter Global
Format 2/3 inch
Pixel size H: 3,45 µm, V: 3,45 µm
Lens Mount C/CS
INTERFACE (ELECTRICAL)
Interface USB 3.1
Supply voltage 4,75 VDC to 5,25 VDC
Current consumption approx. 410 mA @ 5 VDC
Auto iris control  x
Trigger  x
I/Os  x

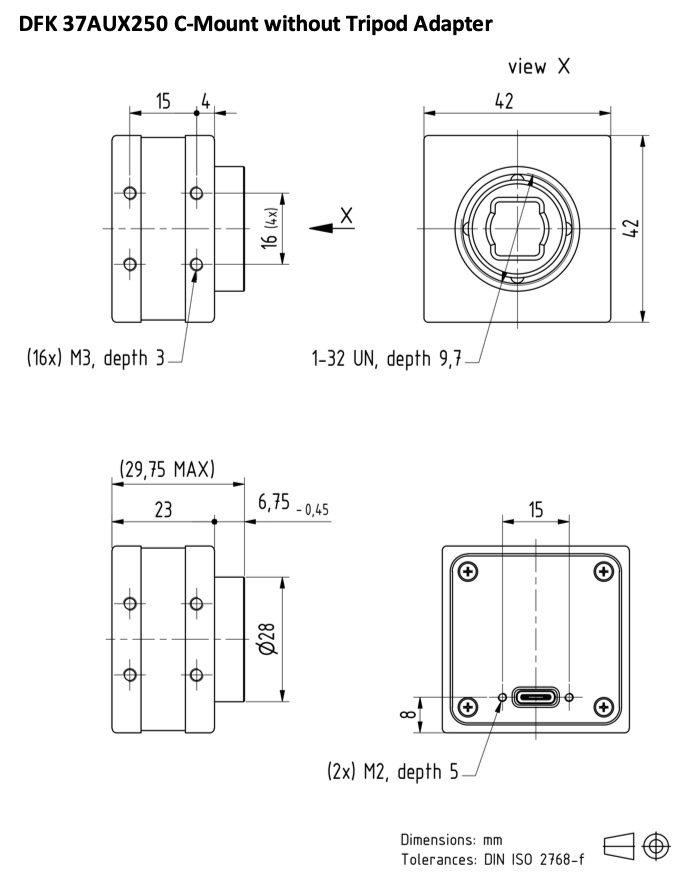

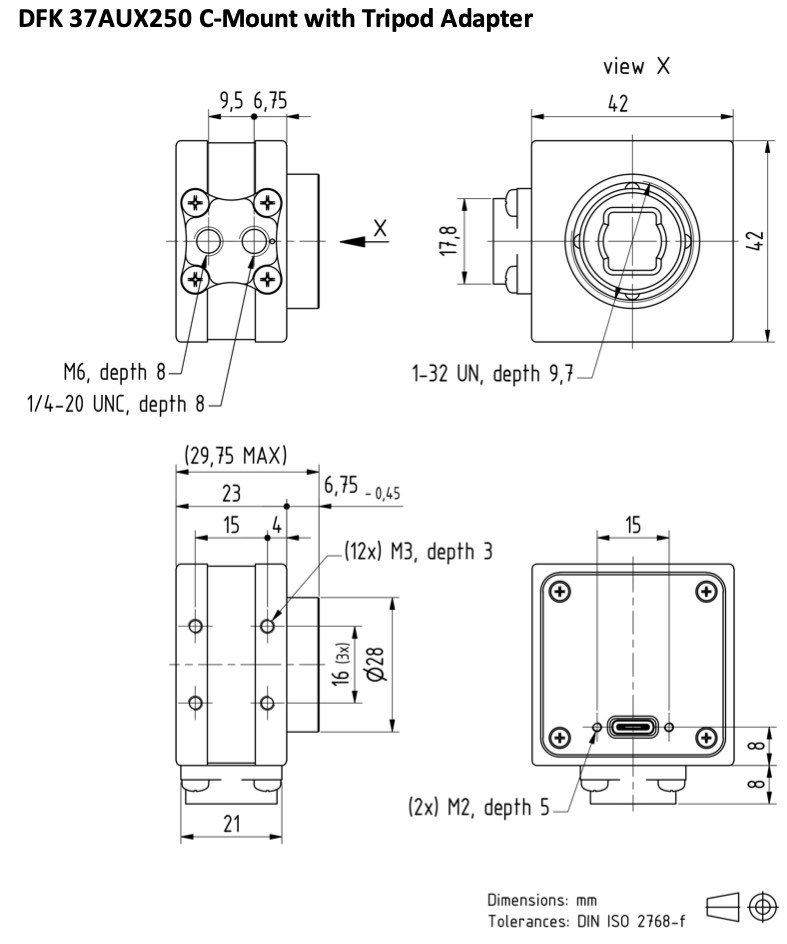

INTERFACE (MECHANICAL)
Dimensions H: 42 mm, B: 42 mm, L: 25 mm
Weight 76 g
ADJUSTMENTS
Shutter 20 µs to 4 s
ENVIRONMENTAL
Temperature (opterating) -5 °C to 45 °C
Temperature (storage) -20 °C to 60 °C
Humidity (operating) 20 % to 80 % (non-condensing)
Humidity (storage) 20 % to 95 % (non-condensing)





Resolution: 5 Megapixel
Lens-Mount: C-Mount, CS-Mount
Sensor-Hersteller: Sony
Betriebstemperatur: -5 °C zu 45 °C
Trigger connection: -
I/O: -
Abmessungen: 42 x 42 x 25 mm
Strombedarf: ca. 410 mA @ 5 VDC
Resolution (h x v): 2448 x 2048
Framerate: 75 fps
Input Interface: USB 3.1
Camera Type: color
pixel size: 3,45 µm
Sensor: 2/3
Sensortyp: CMOS
Shutter: Global-Shutter
