25 mm C-Mount Lens Fujinon HF25HA-1S - 1.4/ 25mm

Preview: 25 mm C-Mount Lens Fujinon HF25HA-1S_Field of View

25 mm C-Mount Lens Fujinon HF25HA-1S - 1.4/ 25mm

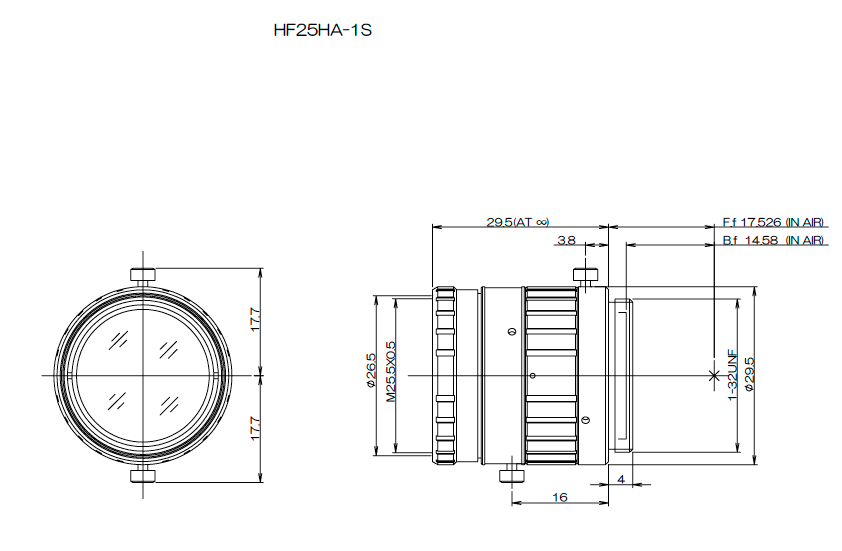

25 mm C-Mount Lens Fujinon HF25HA-1S - 1.4/ 25mm_Dimensions

25 mm C-Mount Lens Fujinon HF25HA-1S_Field of View

Preise auf Anfrage.

Order number: 303801

Thanks to their resilience, the rugged Fujinon HF-HA-1S series offers consistently reliable... more

Close menu

Product information "25 mm C-Mount Lens Fujinon HF25HA-1S - 1.4/ 25mm"

Thanks to their resilience, the rugged Fujinon HF-HA-1S series offers consistently reliable performance for use in industrial image processing applications such as automated assembly, quality inspection and industrial robots. Thus, we are expanding the portfolio to include not only high-quality optics but also a robust design, such as: B. in unmanned aerial vehicles and mobile applications

The new series is not only more robust, but also has the unique Fujinon "anti-shock and vibration" technology. The demand for high-quality optics in robust design is steadily increasing. The DF / HF-HA-1S series has been designed to meet this need. Further information on the shock and vibration resistance can be found under the following link: BLOG

Fujinon 1.5 MegaPixel
Focal length 25mm
Aperture 1.4-16
manually controlled, small construction lens
with fixing screws
for C-mount
ruggedized

For an overview of the entire series, see the following link: Introducing: Fujinon HF-HA-1S series

Article Name	HF25HA-1S
Focal length	25 mm
Aperture	F1,4 - F16
Resolution	6,2 µm (1,5 Megapixel)
MOD (Minimum Object distance)	0,15 m
Iris control	manual
Focus control	manual
Mount	C-Mount
Sensor	2/3"
Angle of View 2/3" (HxV)	19,58° x 15,02°
Angle of View 1/2" (HxV)	14,35° x 10,58°
Angle of View 1/3" (HxV)	10,58° x 8,14°
Filter thread	M25,5 x 0.5
TV-Distortion	-0,3%
Dimensions (in mm)	Ø29,5 x 29,5
Weigth	45 g
Temperature range	-10°C - +50°C
Description	NEW: HF25HA-1S with Anti Shock & Vibration Technology With locking knobs for iris and focus, 3 positions each

Lens type:	Fixed Focal Length
M.O.D.:	0,15 m
Sensor:	1/2, 1/3, 2/3
Lens-Mount:	C-Mount
Focal length:	25 mm
Resolution:	1,5 Megapixel
Aperture:	1,4, Manual Aparture
Filter Thread:	M 25.5
