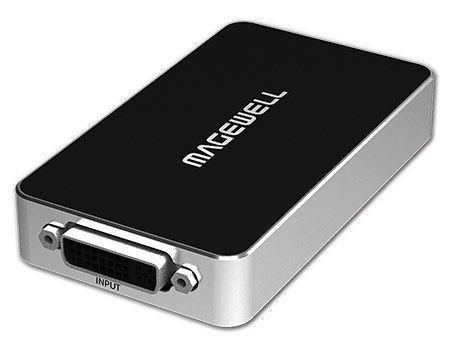

Magewell USB Capture DVI Plus

Magewell USB Capture DVI Plus
469,00 € *
Nettopreis: 394,12 €

inkl.19% MwSt.zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-2 Werktage

Firmenkonditionen: zum Firmen-Login
  • 303437
USB-Capture DVI Plus Ein Kanal DVI HD-Capture-Karte: Erfasst eine der folgenden... mehr
Produktinformationen "Magewell USB Capture DVI Plus"

USB-Capture DVI Plus

Ein Kanal DVI HD-Capture-Karte:

  • Erfasst eine der folgenden Eingangssignale
    • DVI + Audio
    • VGA + Audio
    • Component + Audio
    • HDMI + eingebettete Audio
  • Audioeingang über Line In
  • Audioausgang über Linie out

Der vielseitigste Videograbber der USB Capture Plus Serie ist die DVI-Variante. Er bietet die Möglichkeit, DVI, VGA, HDMI, Component und CVBS zu erfassen und ist damit das ideale Werkzeug für viele Einsatzmöglichkeiten. Die maximale Eingangsauflösung und Bildrate liegt bei 2048 × 2160. Das erfasste Signal wird an den Computer mit bis zu 2048 × 1080 oder 1920 × 1200 ausgegeben.

Die Geräte verwenden eine USB 3.0-Schnittstelle und benötigen keine externe Stromversorgung. Selbstverständlich können Sie auch ein USB 3.0-to-Type C-Kabel verwenden, um es über USB-Typ C-Schnittstelle auf dem Computer zu verbinden.

Auf Grund der verwendeten DirectShow-Schnittstelle ist der Framegrabber mit gängiger und beliebter Drittanbieter-Software kompatibel. Dies gilt für die meisten Streaming-, Aufzeichnungs-, Videokonferenz- und Videostitchingsoftware.



USB-Capture-DVI-Plus_Banner USB-Capture-DVI-Plus_Interface USB-Capture-DVI-Plus_Features USB-Capture-DVI-Plus_Accessories USB-Capture-DVI-Plus_Optional-Accessories

Video-Eingang: CVBS, DVI, HDMI, VGA
Weiterführende Links zu "Magewell USB Capture DVI Plus"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell USB Capture DVI Plus"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.
Bitte geben Sie die Zahlenfolge in das nachfolgende Textfeld ein.

Die mit einem * markierten Felder sind Pflichtfelder.

Datasheet​
Specifications​

Specifications

Supported OS
  • Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
  • Linux (Ubuntu 12.04–16.10, CentOS 7)
  • OS X 10.9–10.11
  • macOS 10.12
Supported APIs
  • Windows
    • DirectShow
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
  • OS X/macOS
    • QuickTime
    • AV Foundation
Supported Software
  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow, V4L2, QuickTime,AV Foundation bbased encoding or streaming software
Input Interfaces
  • DVI
    • DVI1.0
    • HDMI 1.4a (via breakout cable)
    • VGA (via DVI-to-VGA convertor)
    • Component (via breakout cable)



  • 3.5mm audio jack
    • unbalanced Line In interface

Output Interface
  • USB 3.0
    • compatible with USB 2.0
    • compatible with USB 3.1 Gen 1
  • 3.5mm audio jack
    • unbalanced Line Out interface

Input Features
  • Auto scan of video input sources when there is no signal input to the currently selected input source
  • Manual selection of video input source
  • Auto selection of linked (embedded) audio input source when the video input source changes
  • Manual selection of audio input source
  • Support for input video resolutions up to 2048x2160
VGA & component Specific Features
  • 12-bit ADC
  • Support for RGB & YCbCr (YUV) color formats
  • Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
  • Support for DMT, CEA, CVT, GTF video timings
  • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
  • Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss - NOT recommended)
  • Auto detection of RGB & YCbCr color formats
  • Auto or manual sampling phase adjustment
  • Auto horizontal alignment
  • Support for customized video timings
  • Support for customized video resolutions for CVT/GTF timings
HDMI Specific Features
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Analog Audio Features
  • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
  • Capture of stereo analog audio from Line In (3.5 mm stereo mini-jack socket)
Video Capture Format
  • Support for capture resolutions up to 2048x1080 or 1920x1200
  • Support for output frame rates up to 60fps. (Actual output frame rate can be limited by the USB bandwidth.
  • Support for YUY2 4:2:2 8-bit
  • More capture formats can be set using the USB Capture Utility
Video Processing Features
  • Video processing pipelines with 160 Mpixels/s processing bandwidth
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Wave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of output aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
Multiple device on one Computer
  • Support for connecting multiple USB devices to one system
  • Support for setting the device serial number as the device name shown in the system using USB Capture Utility
SDK
  • The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.
Firmware Upgrade
  • Multiple devices in one system can be upgraded simultaneously
LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor
  • 101.5mm (L) x 56.8mm (W) x 17mm (H)

Power Consumption
  • 5V max current: 600mA

  • max power consumption:~3W

Working Environment
  • Operating temperature: 0 to 50 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
