3.9-10mm CS Mount Computar 8MP Lens E3Z3915CS-MPWIR

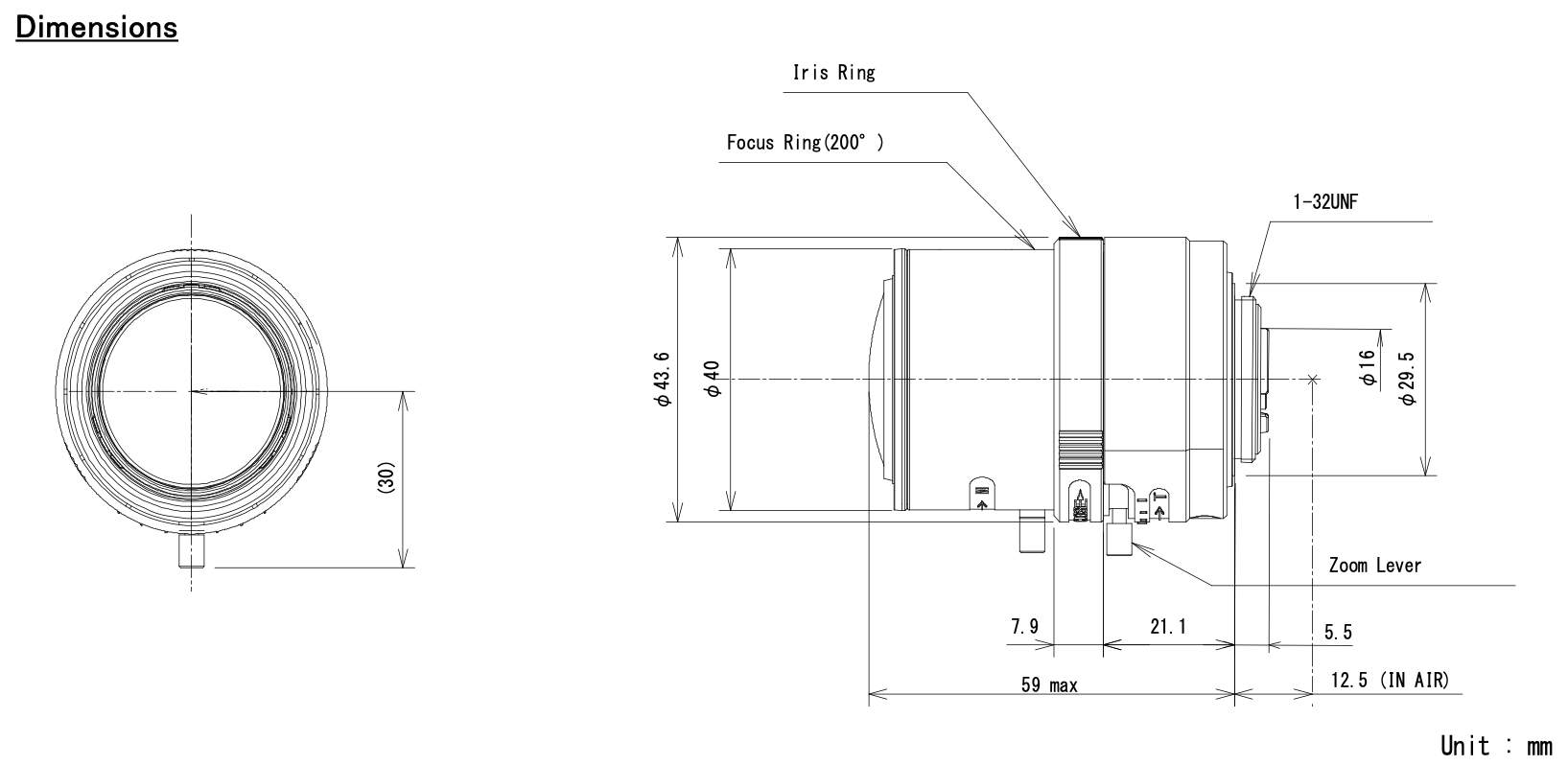

Preview: Computar E3Z3915CS-MPWIR_technical Drawing

Computar E3Z3915CS-MPWIR_technical Drawing

€98.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

Order number: 310063

Computar E3Z3915CS-MPWIR 4K, 1/1.8" 3.9-10mm F1.5 Varifocal, HD Series, Manual (CS mount)... more

Close menu

Product information "3.9-10mm CS Mount Computar 8MP Lens E3Z3915CS-MPWIR"

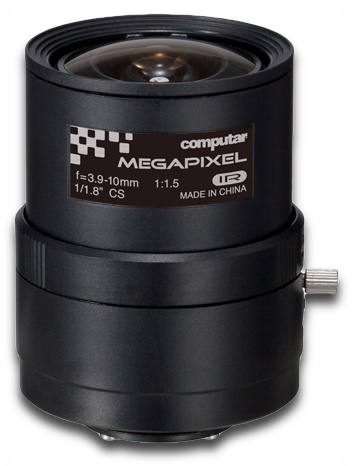

Computar E3Z3915CS-MPWIR

4K, 1/1.8" 3.9-10mm F1.5 Varifocal, HD Series, Manual (CS mount) Day/Night IR

Description E3Z3915CS-MPWIR

The E3Z3915CS-MPWIR is a Vario Focal industrial lens from the manufacturer Computar. The powerful lens is connected to the industrial camera via the CS mount connection and is designed for sensors with 1/1.8" (of course, smaller sensors such as 1/2" and 1/3" are also supported). The machine vision lens is convincing with its 8 megapixels and thus offers a 4K resolution.The bright lens has an aperture range of F1.5 to F16C and guarantees its light intensity up to the edges.The lens is IR-corrected and can be adjusted very precisely. Typical areas of application are the Video surveillance and areas with changing requirements.

Key Features of Computar E3Z3915CS-MPWIR

for 1/1.8" Imager
8 Megapixel 4K Resolution
3.9mm - 10mm Focal lenght
CS-Mount Mount
manual Aperture F1.5 - F16C
IR-corrected Lens
Precise focus adjustment
brightness to the edge area

technical Features of E3Z3915CS-MPWIR

Model No.

E3Z3915CS-MPWIR

Focal length

3.9mm - 10mm

Aperture range

F1.5 - F16C

Focus range

0.8m - Inf.

Zoom range

3.9mm - 10mm

Iris control

manual

Focus control

manual

Zoom control

manual

Angle of View at 1/1.8"

h 108.1° - 42.1°

Angle of View at 1/2"

h 96.0° - 37.9°

Angle of View at 1/3"

h 70.2° - 28.4°

Mount

CS-Mount

Filter thread

Dimensions

Ø40mm x 49mm x 59mm

Weight

69g

Lens type:	Vario focal, Zoom
Öffnungswinkel (h):	108.1°‐ 42.1°
M.O.D.:	0,8 m
Sensor:	1/1,8, 1/2, 1/3
Lens-Mount:	CS-Mount
Focal length:	3,9 - 10 mm
Resolution:	8 Megapixel
Aperture:	F1.5, Manual Aparture
Filter:	suitable for IR
Filter Thread:	-
