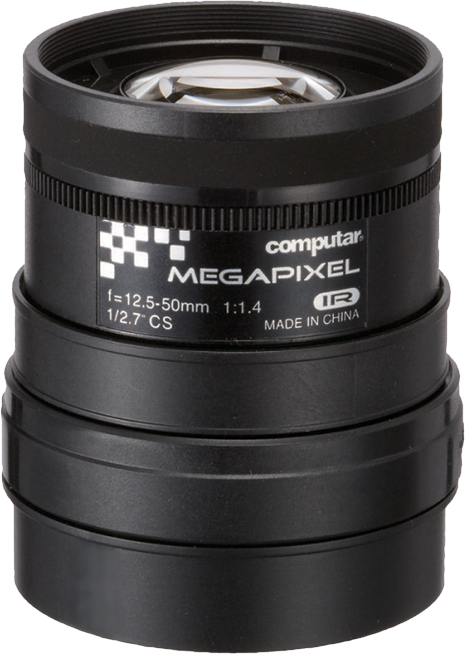

12,5 - 50 mm CS-Mount Computar 3MP Lens A4Z1214CS-MPIR
- Order number: 302356
12,5 - 50 mm CS-Mount Computar 3MP Lens A4Z1214CS-MPIR 1/2.7” IR-ready Thanks to... more
Product information "12,5 - 50 mm CS-Mount Computar 3MP Lens A4Z1214CS-MPIR"
12,5 - 50 mm CS-Mount Computar 3MP Lens A4Z1214CS-MPIR 1/2.7” IR-ready
Thanks to the variable focal length, you no longer require a whole host of fi xed focal lengths (4.0 mm; 8.0 mm, …) but you can cover most applications with one single lens (e.g. 3.0 mm – 8.0 mm). Moreover, they are used when the required focal length for an application is not known in advance.
Variofocal lenses
- Manual iris
- Manual focus
- Manually adjustable focal length
- CS mount
- IR-corrected varifocal lenses
- Up to 5 megapixel
Description
- 1/2.7” Format
- 3 Megapixel
- 12.5 - 50 mm Varifocal
- Full HD Format
- Manual Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Article-No.: | 302356 |
| Computar-Name | A4Z1214CS-MPIR |
| Format Size | 1/2.7" |
| Mount | CS |
| Focal Length | 12.5 mm - 50.0 mm |
| Back Focal Length | 7.3 mm - 11.6 mm |
| Max. Image Size | 3.2 mm x 5.8 mm |
| Iris Range | F1.4 - F16C |
| Focus Range | 1 m - Inf. |
| Zoom Range | 12.5 mm - 50 mm |
| Iris Control | manuell |
| Focus Control | manuell |
| Zoom Control | manuell |

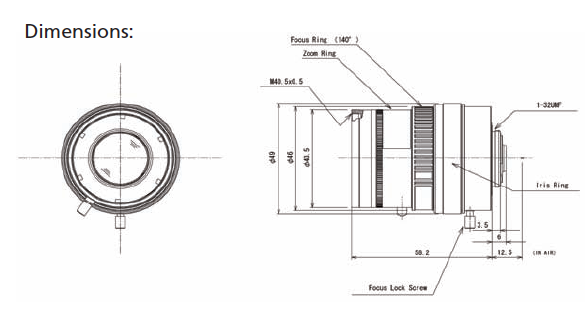

| Dimensions in mm | Ø49x58.2 |
| Weight | 80 g |
| Temperature Range | -10°C - +50°C |
| Lens type: | Vario focal, Zoom |
| M.O.D.: | 1,00 m |
| Sensor: | 1/2,7, 1/3 |
| Lens-Mount: | CS-Mount |
| Focal length: | 12,5 mm, 50 mm |
| Resolution: | 2-3 Megapixel |
| Aperture: | 1,4, Manual Aparture |
| Filter: | suitable for IR |
| Filter Thread: | M40,5 x 0.5 |
