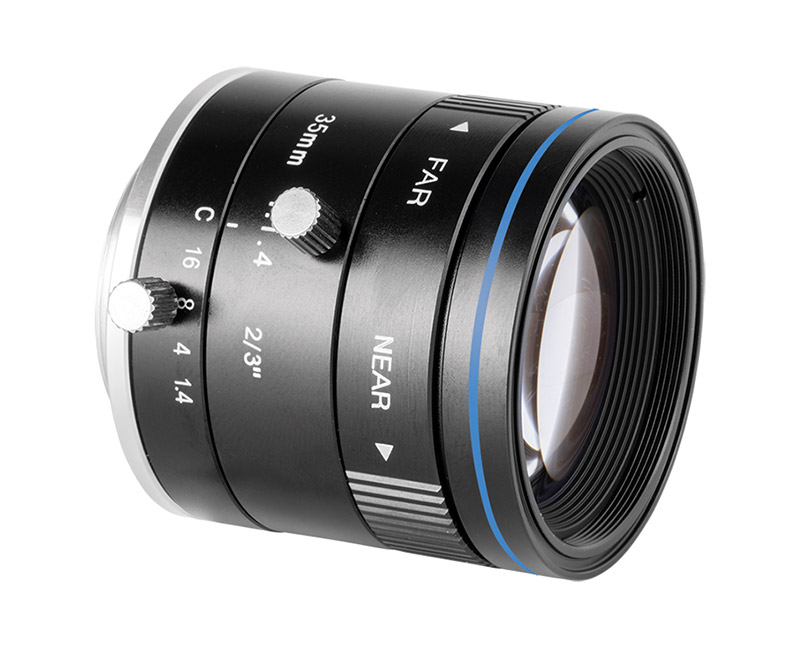

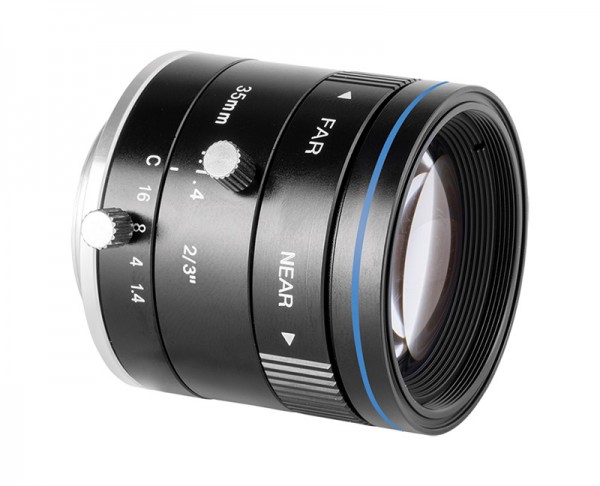

35 mm C-Mount Lens Opto Engineering EN2MP3514

Preise auf Anfrage.
  • 303745
Fixed focal 2 Megapixel lens, focal length 35 mm, f# 1.4 - C, C-mount   EN2MP... more
Product information "35 mm C-Mount Lens Opto Engineering EN2MP3514"

Fixed focal 2 Megapixel lens, focal length 35 mm, f# 1.4 - C, C-mount

EN2MP series is a series of fixed focal lenses designed for use in factory automation. Its high quality to price ratio allows simple vision tasks to be achieved easily and efficiently. The lenses are designed to withstand harsh working environments.

The lenses are suitable for a wide range of vision tasks. E.g. Pattern matching, positioning, barcode recognition, packaging inspection, presence/absence, robot guide, pick and place, orientation check, 3D measurement…etc.

With many years of experience in the machine vision industry, Opto Engineering® can provide bundle solutions including a suitable lens, camera and illuminator that are optimized for your specific application requirements.

KEY ADVANTAGES

  • Suitable for wide range of applications
    Designed to satisfy simple vision tasks.
  • Wide product range
    Covers the most popular focal lengths used in factory automation.
  • High quality / price ratio
    High performance with reasonable cost.
  • Locking screws
    Locking screws for fixing focus and iris.
Optical Specifications
Focal length (mm) 35
Magnification   0.118
Image Circle Ø (mm) 11
Max Sensor Size   2/3″
Working Distance (mm) 300 - ∞
Aperture F/#   1.4 - C
Back Focal length (mm) 14.7
Distortion (%) 0.33
Mechanical Specifications
Mount   C
Length (mm) 37.8
Diameter (mm) 39.1
Filter Thread   M30.5 x 0.5
Lens type: Fixed Focal Length
M.O.D.: 0,30 m
Sensor: 2/3
Lens-Mount: C-Mount
Focal length: 35 mm
Resolution: 2 Megapixel
Aperture: 1,4, Manual Aparture
F-theta Distortion (-%): 0,33
Filter Thread: M30,5 x 0.5
Image-Circle: 11 mm
Magnification: 0,0118
Related links to "35 mm C-Mount Lens Opto Engineering EN2MP3514"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "35 mm C-Mount Lens Opto Engineering EN2MP3514"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Datasheet​

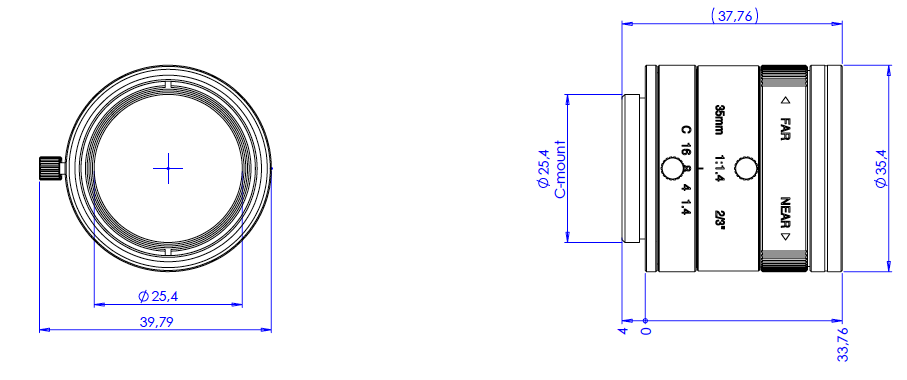

Dimensions​
