- Order number: 303783

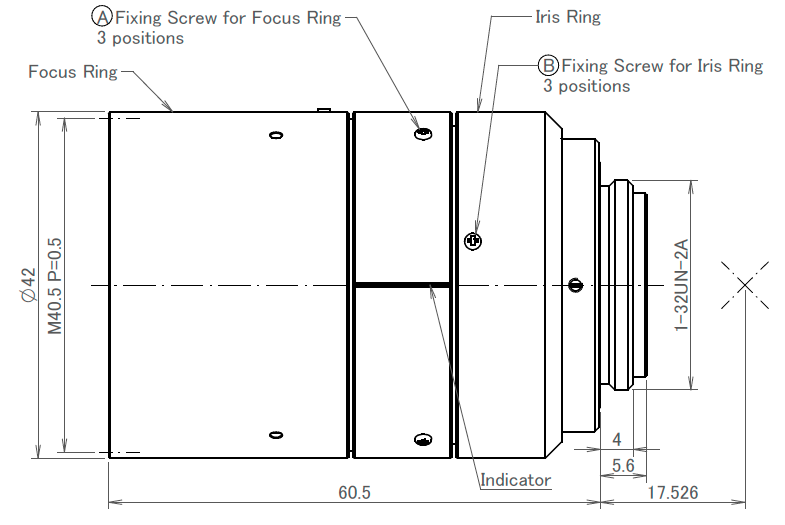

Description Evaluations 0 Datasheet FL-BC1220-9M Dimension Drawing Handout 9 Megapixel Series MTF / Distortion Sheet FL-BC1220-9M
12 mm C-Mount Lens Ricoh FL-BC1220-9M - 2.0/12mm 9 MEGAPIXEL Machine Vision Lenses for... more
Product information "12 mm C-Mount Lens Ricoh FL-BC1220-9M - 2.0/12mm"

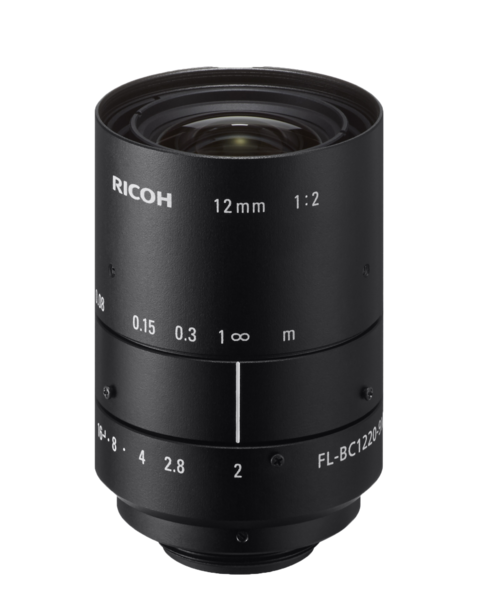

12 mm C-Mount Lens Ricoh FL-BC1220-9M - 2.0/12mm
9 MEGAPIXEL Machine Vision Lenses for Image Processing Systems up to 1 "
- manually controlled
- High Resolution
- be compact
- 9 Megapixel Lens
- with fixing screws
- for C and CS mount cameras
- Resolution of 135 lp / mm from the center of the picture to the outermost corners of the picture
This series of 9 megapixel lenses are developed to be installed in machine vision systems with cameras with sensors up to 1" format. The lenses are not only optimized for high image quality, but also for the use in harsh environments and durable industrial systems.
An overview of the entire series can be found under the following link: click here
Spezifikationen | |
| Article Name | FL-BC1220-9M |
| Artikel Number | 303783 |
| Focal length | 12 mm |
| Resolution | 9 Megapixel |
| Format | 1" |
| Aperture | 2.0 - 16.0 |
| Mount | C-Mount |
| Iris Control | manual |
| Focus control | manual |
| M.O.D. (Minmun Object Distance) | 0,08 m |
| Angle of View 1" Format | 57,0° |
| Angle of View 2/3" Format | 40,6° |
| Angle of View 1/1.8" Format | 33.6° |
| Angle of View 1/2" Format | 30.0° |
| Angle of View 1/3" Format | 22.7° |
| Filter Thread in mm | M40.5 P= 0,5 |
| Dimensions | Ø 42mm x 60,5 |
| Weigth | 156 |
| Temperature Range | -20°C bis +50°C |
| Features | Focus and aperture screws |
| Lens type: | Fixed Focal Length |
| M.O.D.: | 0,08m |
| Sensor: | 1, 1/1,8, 1/2, 1/3, 2/3 |
| Lens-Mount: | C-Mount |
| Focal length: | 12 mm |
| Resolution: | 9 Megapixel |
| Aperture: | 2,0, Manual Aparture |
| Filter Thread: | M40,5 x 0.5 |
