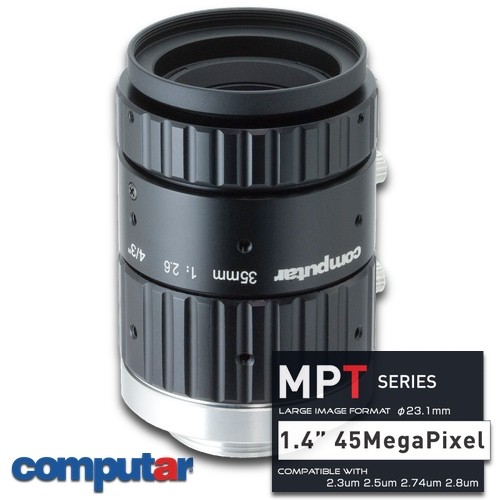

35 mm C-Mount Computar 45MP Lens F3526-MPT

€1,099.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3-5 Days

  • 310030
Computar F3526-MPT Description F3526-MPT The Computar F3526-MPT fixed focal length... more
Product information "35 mm C-Mount Computar 45MP Lens F3526-MPT"

Computar F3526-MPT


Description F3526-MPT


The Computar F3526-MPT fixed focal length lens is specially designed for large and high-resolution sensors such as Sony IMX492 / IMX530 / IMX540. With 45 megapixels and 2.3µm pixel pitch, the industrial lens from Computar has extremely high resolution and low distortion. Thanks to the floating design, extremely short working distances and a very compact size are possible. Despite the large image format of Ø23.1mm, the C mount lens can be connected to standard C mount industrial cameras without loss.
you wiill get more Information about Computars MPT-Industrial lensseries under the following Link: Computar MPT-Lensseries

Key Features


  • 35mm fixed focal length
  • for up to 1.4" Imagers
  • 45 Megapixel resolution
  • 2.3µm Pixel Pitch
  • Aperture F2.6 manual
  • Working distance 0.15m - Inf.
  • C-Mount connection
  • compact and lightweight
  • ultra low distortion

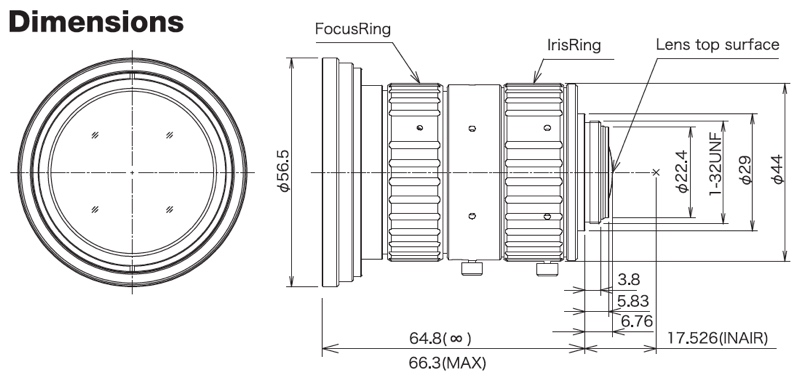

Computar-Machine-Vision-Lens-F1228-MPT-Drawing
technical Features

Focal length
35mm
Max. Aperture Ratio
1:2.6
Max. Image Format
Ø23.1mm
Iris operation range
F2.6 - F16.0
Focus operation range
0.15m - Inf.
Iris control
manual
Focus control
manual
Angle of View 1.4" (D/H/V)
36.6° / 30.6° / 21.1°
Angle of View 1.2" (D/H/V)
30.9° / 23.6° / 20.5°
Angle of View 1.1" (D/H/V)
28.3° / 23.0° / 16.9°
Distortion (Inf.)
0.01%
Filter thread
M34 x 0,75mm*
Dimension in mm
Ø39 x 58mm
Weight
122g
Temperature range
-10°C + 50°C
Lens type: Fixed Focal Length
pixel size: 2.3µm
M.O.D.: 0,15 m
Lens-Mount: C-Mount
Focal length: 35 mm
Resolution: 45 Megapixel
Aperture: 2,6, Manual Aparture
F-theta Distortion (-%): 0,01%
Filter Thread: M34 x 0.5
Image-Circle: Ø 23.1 mm
