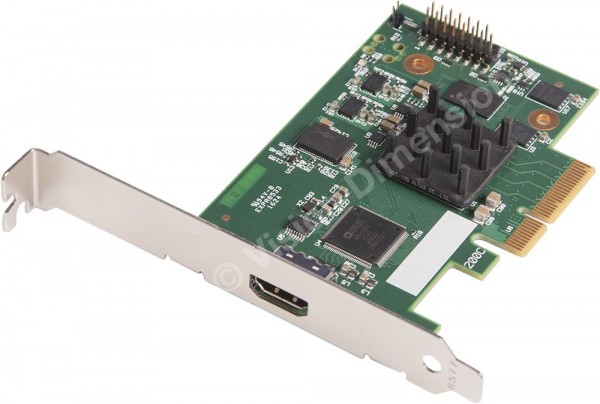

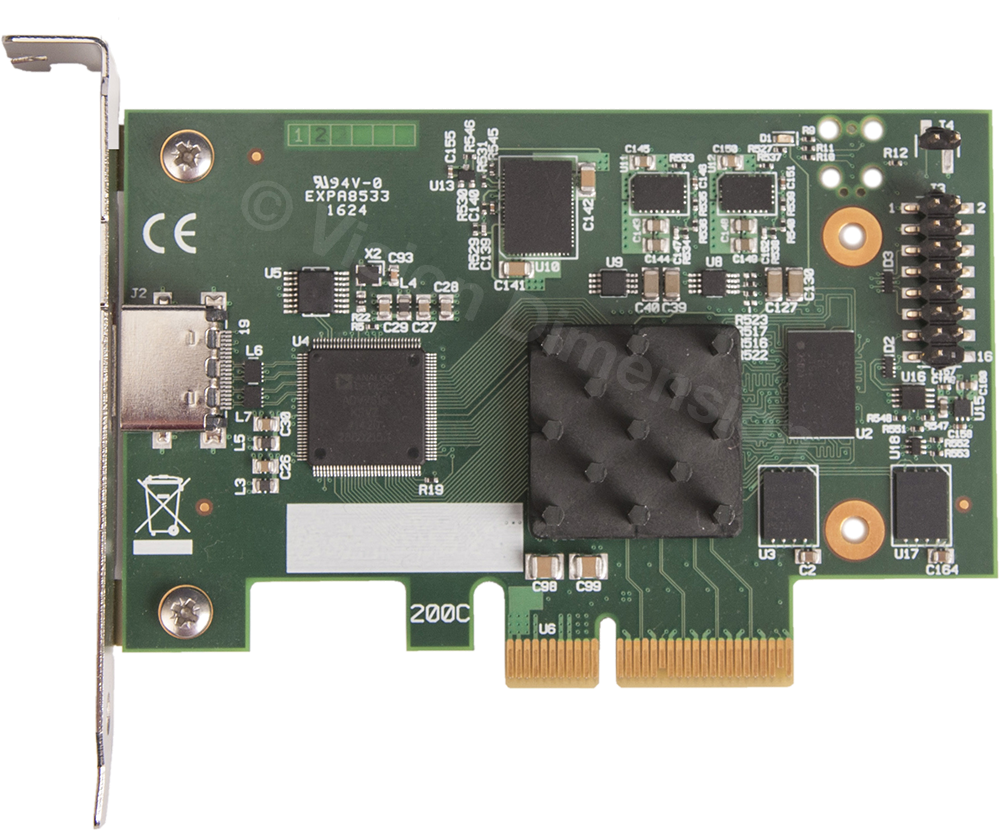

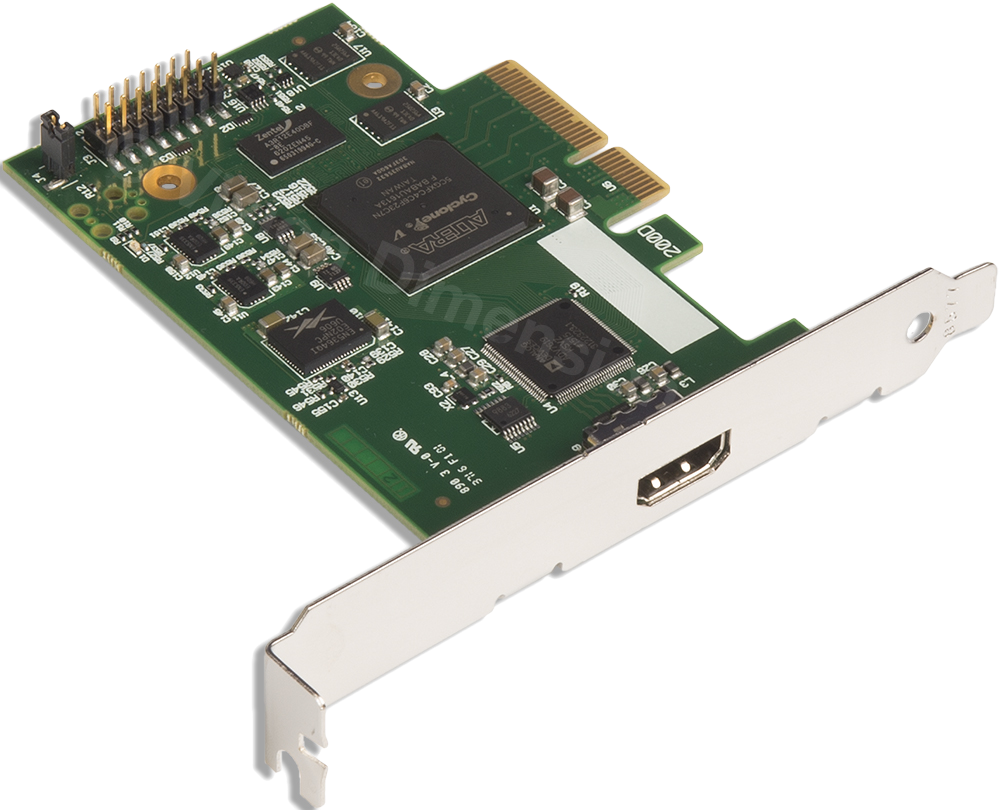

XtremeLC-HD HDMI Capture Card 4K

500,25 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303468
Single channel "LiveStream:Capture" card Discreet video capture is now the mainstay of many... mehr
Produktinformationen "XtremeLC-HD HDMI Capture Card 4K"

Single channel "LiveStream:Capture" card

Discreet video capture is now the mainstay of many small form factor appliances being uses in markets such as lecture capture, distance learning and medical environments. The XtremeLC-HD provides HDMI capture for use within such applications.

EMS's LiveStream:Capture architecture allows captured video to be processed and delivered in real time to a processor or graphics card. The XtremeLC-HD supports on board colour space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications. The XtremeLC-HD natively supports 32, 24, 16 and 12 bit YUV and RGB formats.

Multi-application capture

The XtremeLC-HD capture card has been designed for use within application models such as:

  • Medical environments
  • Simulation systems
  • Live events
  • PC and gaming console capture
  • Lecture and presentation capture
  • Real time streaming

It is also possible to put more than a single card into a system for multiple capture channels.

Due to the nature of the LiveStream:Capture architecture, the XtremeLC-HD is not supported for wall controller applications that depend on EMS's MultiStream technology.

Video streaming

Built upon the Microsoft AV stream model, XtremeLC-HD inputs can be accessed and enumerated in any DirectShow or Media Foundation supported application. A video for Linux (V4L) driver package is also available to download.

Tested applications includes:

  • Microsoft Media Encoder
  • VLC
  • Telestream WireCast
  • vMix
  • Opencast Matterhorn
  • VidBlaster
  • OBS Project
  • Adobe Flash Media Encoder
  • Dataton Watchout

FEATURES

  • Single HDMI capture channel
  • Up to 297 Mpixel/s clock capturing up to 4096x2160p @ 30fps
  • 800 MB/s DMA bandwidth
  • High performance up and down scaling
  • Colour space conversion to support output formats
  • PCI Express Gen 1 x 4 low profile
  • Datapath unified Windows® and Linux® driver support

CD1 EMS XTEMERGB SOFTWARE

Low Input to Output Capture Latency

  • DMA to third party graphics vendors back and front buffers via Direct3D
  • Compatibility with AMD DirectGMA
  • Compatibility with Nvidia GPUDirect

User Mode filter for source selection

  • Enables cropping support in DirectShow on all inputs
  • Supports Start and Stop trigger interface on all XtremeLC inputs

sdk EMS Unified Xtreme Driver

  • Multiple cards per system, 16 streams per input Frame sync and time stamping DirectShow interface
  • The RGBEasy API for advanced audio and video control
  • Fully integrated for use with EMS Wall Controller software for video wall applications

The XtremeLC-HD is supplied with a powerful software application for configuring the format of the input sources and displaying the data.

Simply connect your video source into the card, run the XtremeLC application to automatically detect the video source format and display the captured video in a window on your desktop.

Link to Driver and Software Download EMS-Imaging

Weiterführende Links zu "XtremeLC-HD HDMI Capture Card 4K"
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "XtremeLC-HD HDMI Capture Card 4K"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specification

Board Format
PCIe Gen 1 x 4 plug-in card
Dimensions
103mm x 64mm (l x h)

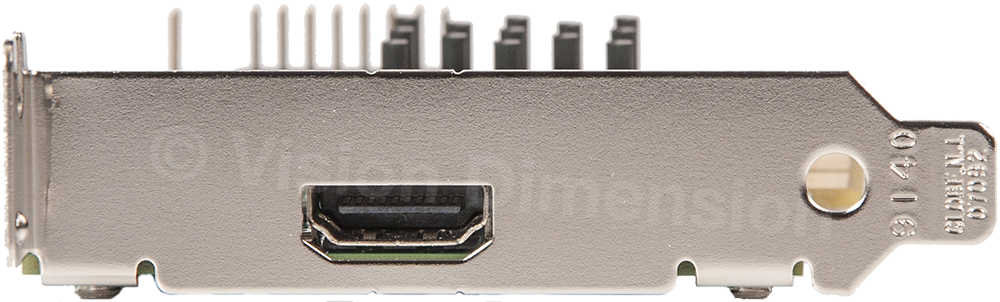

Connector
HDMI
Pixel Rate 297 Mpixel/s
Maximum Capture Resolution
4096x2160p @ 30Hz
Transfer Rate
800MB maximum DMA transfer rate
Hardware Colour Space Conversion 32 / 24 / 16 bit RGB (4:4:4)
16 bit YUV (4:2:2)
12 bit YUV, NV12, YV12 (4:2:0)
Audio Support
Stereo pair PCM audio via each HDMI channel at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz
Low Latency
LiveStream:Capture
Single frame time plus DMA transfer of final line
Operating Sysytem Support
Linux,
Windows® XP, Windows Vista, Windows Server 2003, Windows Server 2008, Windows 7, Windows 8/8.1 and Windows 10
Power Requirements
Max current at 1A at 3.3V
Max power ≈ 3.3W
Operating Temperature
0 to 35 deg C/ 32 to 96 deg F
Storage Temperature -20 to 70 deg C (-4 to 158 deg F)
Relative Humidity 5% to 90% non-condensing
Warranty 3 years
