Magewell Pro Capture SDI

277,07 € *

zzgl.19% MwSt.zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-2 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303027
Pro Capture SDI Ein Kanal HD-Capture-Karte Erfasst SD / HD / 3G-SDI Loopback:... mehr
Produktinformationen "Magewell Pro Capture SDI"

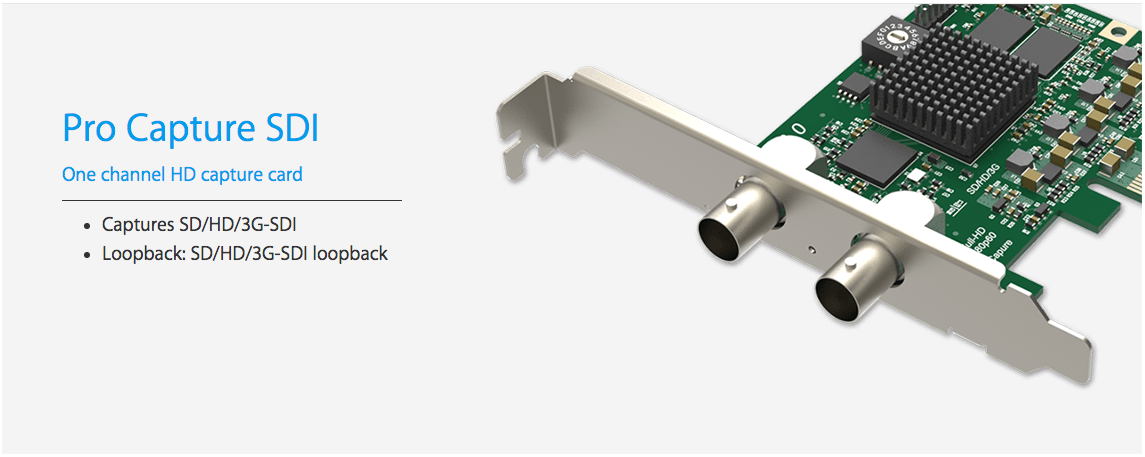

Pro-Capture-SDI-Capture-Card

Pro Capture SDI

Ein Kanal HD-Capture-Karte

Erfasst SD / HD / 3G-SDI

Loopback: SD / HD / 3G-SDI-Loopback

Die Pro Capture SDI Karte ist eine ideale Lösung für Anwendungen, die eine einzige flexible Kartenlösung für Bereiche wie medizinische Aufnahmen, Aufzeichnung von Vorlesungen, Webcasting und Videokonferenzen erfordern.

Eigenschaften:

PCIe 2.0 x1 Lane

2k x 2k erfassen

Kompatibel mit Windows

Kompatibel mit Linux

Up / down Skalierung

Deinterlacing

Multiple Streaming

Automatische Erkennung von Eingangssignal

High-fifelity Video Processing Pipeline

Farbanpassung

Variou Ausgabefarbraum

SG-DMA-Übertragungsmodus

Mehrere Capture-Geräte auf einem einzelnen Computer

Hardware-Zeitstempel

Befestigungsbohrungen

Rotary Switch

Hochgeschwindigkeits-Speicher

LED-Anzeige

Firmware Upgrade

gemeinsame Treiber

Kontinuierlich arbeiten für 24/7



Unterstützte Betriebssysteme:

Windows7 / 8 / 8.1 / 2008 / 2008R2 / 2012 (x86 und x64)

Linux (V4L2 kerneldriversource Code underNDA, supportsx86, x64 & armarchitecture)



Unterstützte APIs:

Windows Directshow, DirectKS

WaveAPI / Directsound / WASAPI

Linux, V4L2, ALSA

Unterstützte Software:

VLC

VirtualDub

OBS

xSplit

Vmix

VidBlaster

Wirecast

Microsoft Media Encoder

Adobe Flash Media Encoder

Jede andere Directshow / V4L2 Encoding / Streaming-Software

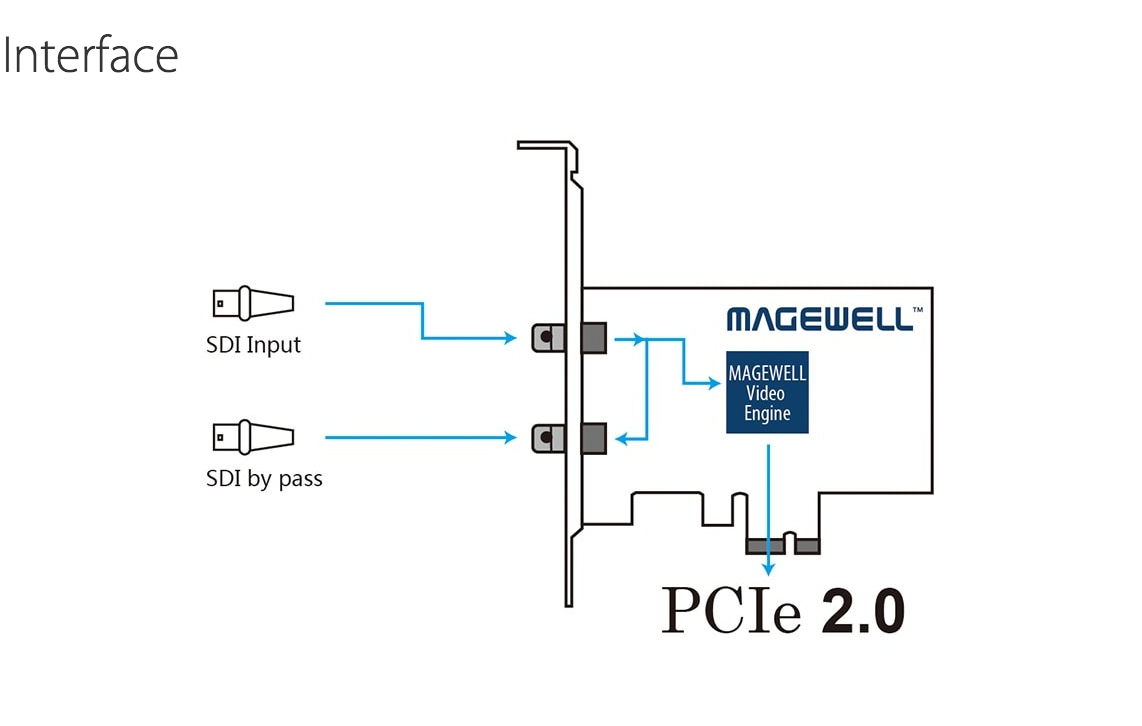

Pro-Capture-SDI-Capture-Card-PCIe-2-0

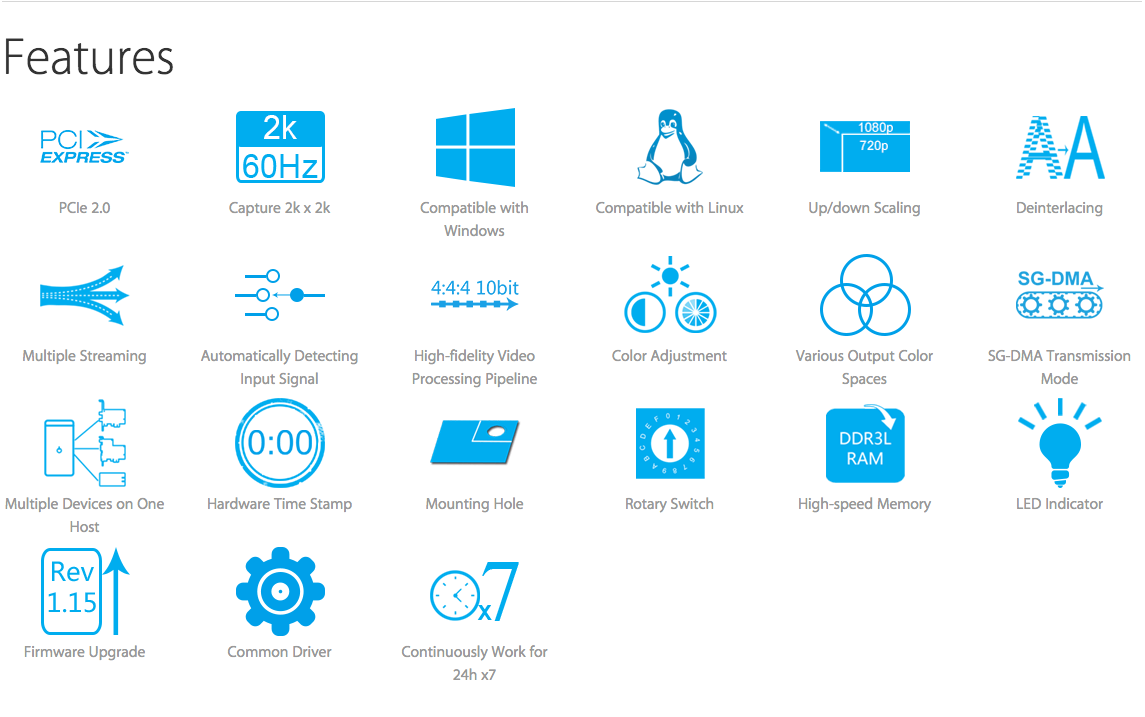

Pro-Capture-SDI-Capture-Card-Features

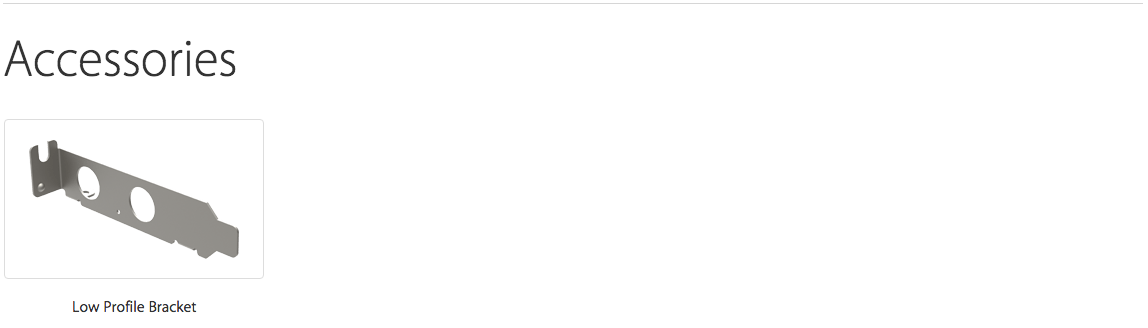

Pro-Capture-SDI-Capture-Card-Accessories



Video-Eingang: SDI
Geräteanschluss: PCI Express
Weiterführende Links zu "Magewell Pro Capture SDI"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro Capture SDI"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specifications​

Specifications

Supported OS
  • Windows 7/8/8.1/2008/2008 R2/2012 (x86 & x64)
  • Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)
Supported APIs
  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
Supported Software
  • VLC
  • VirtualDub
  • OBS
  • xSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces
  • DVI-I
    • DVI 1.0
    • HDMI 1.4a (via breakout cable)
    • VGA (via DVI2VGA connector)
    • Component (via breakout cable)
  • DB9
    • YC (S-Video)
    • Composite video
    • Analog audio (L+R)
    • Component video
  • BNC
    • SD/HD/3G SDI
Output Interfaces
  • PCIe Gen2 x1
Input Features
  • Auto scan of video input sources when there is no signal input to the currently selected input source
  • Manual selection of video input source
  • Auto selection of linked (embedded) audio input source when the video input source changes
  • Manual selection of audio input source
  • Support for standard crossbar based on video input source selection
  • Support for input video resolutions up to 2048×2048 pixels
VGA & Component Specific Features
  • 12-bit ADC
  • Support for RGB & YCbCr (YUV) color formats
  • Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
  • Support for DMT, CEA, CVT, GTF video timings
  • Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
  • Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT officially supported)
  • Auto detection of RGB & YCbCr color formats
  • Auto or manual sampling phase adjustment
  • Auto horizontal alignment
  • Support for customized video timings
  • Support for customized video resolutions for CVT/GTF timings
HDMI Specific Features
  • 225MHz HDMI receiver
  • Adaptive HDMI equalizer support for cables lengths up to 30M
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
SDI Specific Features
  • Integrated cable equalizer supporting cable lengths up to 230M for HD signals
  • Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards
  • Support for 2K (2048×1080) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 audio channels at 48KHz
  • Support for extraction of audio formation information & channel status data
  • Limited support of 3Gb-DS: only the first stream can be captured
  • Limited support of 3Gb-DL:
    • 2K YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
    • Other modes: full supported
  • Limited support for capture of the first link of dual link interfaces:
    • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
    • YCbCr 4:4:4 10-bit: captured as 4:2:2
    • RGB 4:4:4: R/B sub-sampled
YC & Composite Specific Features
  • 12-bit ADC
  • Support for NTSC, PAL and SECAM standards
  • Auto detection of video input standard
Video Output Formats
  • Support for output image resolutions up to 2048×2048 pixels
  • Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )
  • Support for 4:2:0 8-bit output formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit output formats: V410, Y410
  • More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
  • Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Wave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of output aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video OSD composition
    • Support for PNG OSD image (up to 2048×2048)
    • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams
  • Unlimited output streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
  • Latency of 64 video lines
  • Partial notification mode in SDK
Timestamp & A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA
  • ~400MB/s per channel DMA bandwidth in PCIe 2.0 system
  • ~200MB/s per channel DMA bandwidth in PCIe 1.0 system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets
SDK
  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks
  • All options can be controled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor
  • Normal profile PCIe x1 Add-on Card
  • 92.76mm x 96.24mm (without PCI bracket)
Accessories
  • DVI2VGA connector
  • DVI-I to HDMI + Component breakout
  • DB9 to YC + Composite + Analog Audio + Component breakout
Power Consumption
  • Max current at 12V ~0.4 A
  • Max current at 3.3V ~0.3 A
  • Max power consumption ~5.4 W
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
