Magewell Pro Capture Mini HDMI with big Heatsink

246,17 € *

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Kein Versand vom 13.05.2025 bis einschließlich 20.05.2025

Artikel-Nr.: 303565

Die Magewell Pro Capture Mini HDMI ist die ideale Lösung für Anwendungen, die für... mehr

Menü schließen

Produktinformationen "Magewell Pro Capture Mini HDMI with big Heatsink"

Pro_Capture_Mini-HDMI_-Banner_11111

Die Magewell Pro Capture Mini HDMI ist die ideale Lösung für Anwendungen, die für die Erfassung von einer HDMI-Quelle sowie embedded Audio in Echtzeit erfordern. Typische Anwendungen sind: die Anzeigen von HDMI-Quellen von PCs, Macs, industriellen / medizinischen Geräten, Kameras, Spielkonsolen und andere Videoausrüstung. Hierzu gehört auch Streaming Video oder Broadcasting-Anwendungen.

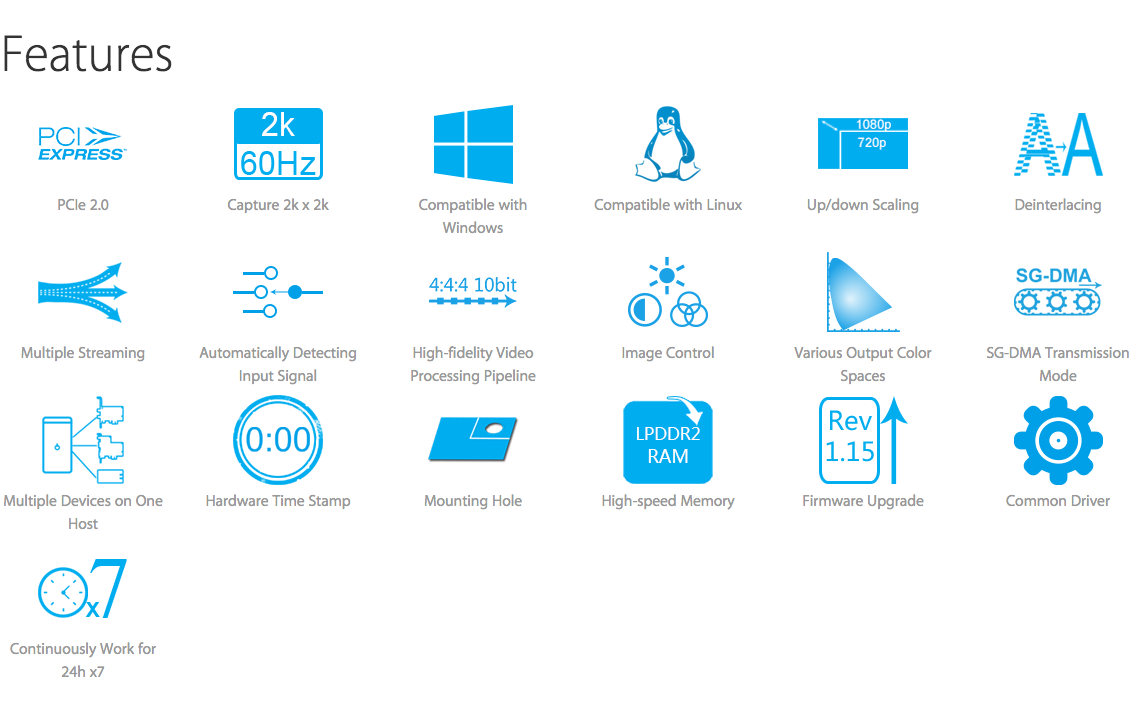

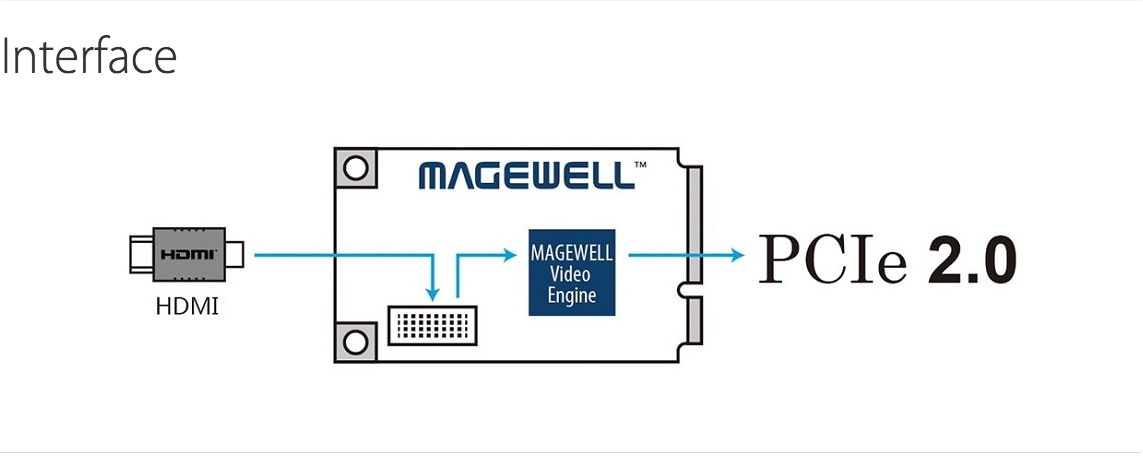

Pro_Capture_Mini-HDMI_Interface Pro_Capture_Mini-HDMI_Features Pro_Capture_Mini-HDMI_Accessories

Video-Eingang:	HDMI
Geräteanschluss:	PCI Express Mini

Weiterführende Links zu "Magewell Pro Capture Mini HDMI with big Heatsink"

Verfügbare Downloads:

Download Datasheet

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Pro Capture Mini HDMI with big Heatsink"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture) OS X 10.9–10.11 macOS 10.12
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS xSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces	JST SHD 20pin connector DVI 1.0 HDMI 1.4a
Host Interfaces	PCIe Gen2 x1
Input Features	Support for input video resolutions up to 2048×2160 pixels
HDMI Specific Features	225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for customized EDID Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames Full colorimetry support Support for 8/10/12-bit color depths Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for up to 8-channel IEC60958/IEC61937 audio streams Support for extraction of audio formation information & channel status data Support for extraction of video timing information Support for extraction of 3D format information Support for extraction of Sony/Canon DSLR time code Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.
Video Capture Formats	Support for capture image resolutions up to 2048×2160 pixels Support for capture frame rates up to 144fps. (Actual capture frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. ) Support for 4:2:0 8-bit capture formats: NV12, I420, YV12 Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32 Support for 4:4:4 10-bit capture formats: V410, Y410 More capture formats are supported via Pro Capture SDK for DirectKS
Video Processing Features	Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of capture aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of capture color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2160) Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System	Support for multiple cards plugged to one system
Multiple Capture Streams	Unlimited capture streams for any one input channel Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
Video Capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA for AMD video adapter chipsets Support for GPUDirect for Nvidia video adapter chipsets
SDK	Pro Capture SDK for DirectShow for easy integration (Windows) Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video, Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown when it is not in use Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
Form Factor	Mini PCIe Add-on Card 30mm x 51mm

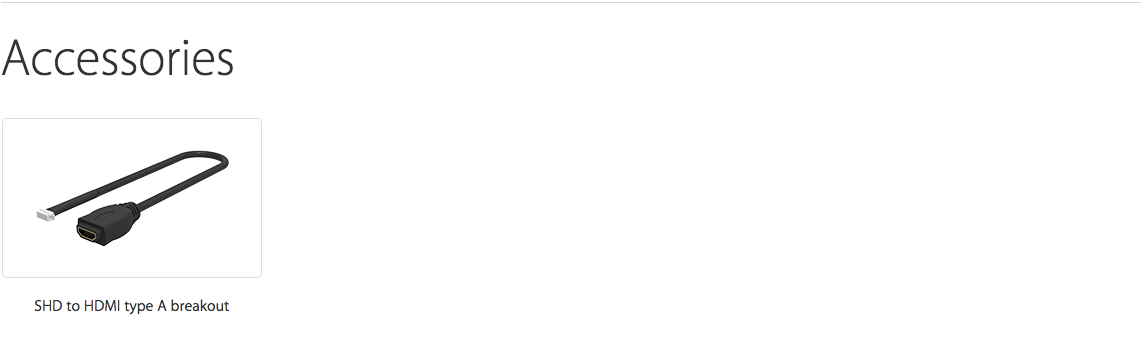

Accessories	SHD to HDMI type A breakout
Power Consumption	High Performance Firmware Max current at 3.3V: ~ 0.99 A Max power consumption: ~ 3.24 W Low Power Comsuption Firmware Max current at 3.3V: ~ 0.83 A Max power consumption: ~ 2.7 W
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
