Magewell Pro Capture DVI 4K

Magewell Pro Capture DVI 4K
493,37 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303439
Magewell Pro Capture DVI 4K Ein Kanal UHD PCIe Capture Karte  DVI-D 1.0(Single... mehr
Produktinformationen "Magewell Pro Capture DVI 4K"

Magewell Pro Capture DVI 4K

Ein Kanal UHD PCIe Capture Karte

  • DVI-D 1.0(Single or dual link)
  • HDMI 1.4

Die Magewell Pro Capture DVI 4K ist eine 1 x Kanal 4K DVI Grabber-Karte und erfasst DVI (HDMI mit Adapter) in 4K Auflösung.

Die Pro Capture DVI 4K PCIe 2.0 Karte ist eine ideale Lösung für Anwendungen und Erfassung von HD Quellen in Echtzeit. Typische Anwendungen sind: die Anzeigen von HDMI- Quellen in 4k Auflösung von PCs, Macs, industriellen bzw. medizinische Geräte, Kameras, Spielkonsolen und andere Videoausrüstung. Hierzu gehören auch Streaming Video oder Broadcasting-Anwendungen.

Auf Grund der verwendeten DirectShow-Schnittstelle ist der Framegrabber mit gängiger und beliebter Drittanbieter-Software kompatibel. Dies gilt für die meisten Streaming-, Aufzeichnungs-, Videokonferenz- und Videostitchingsoftware.

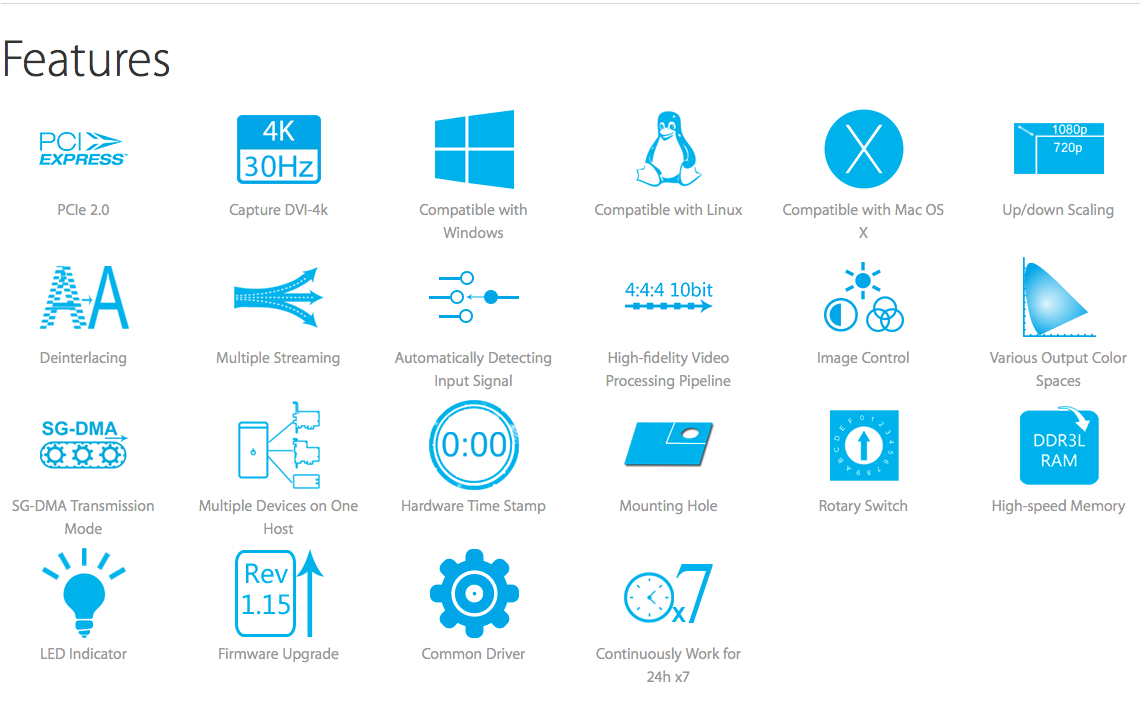

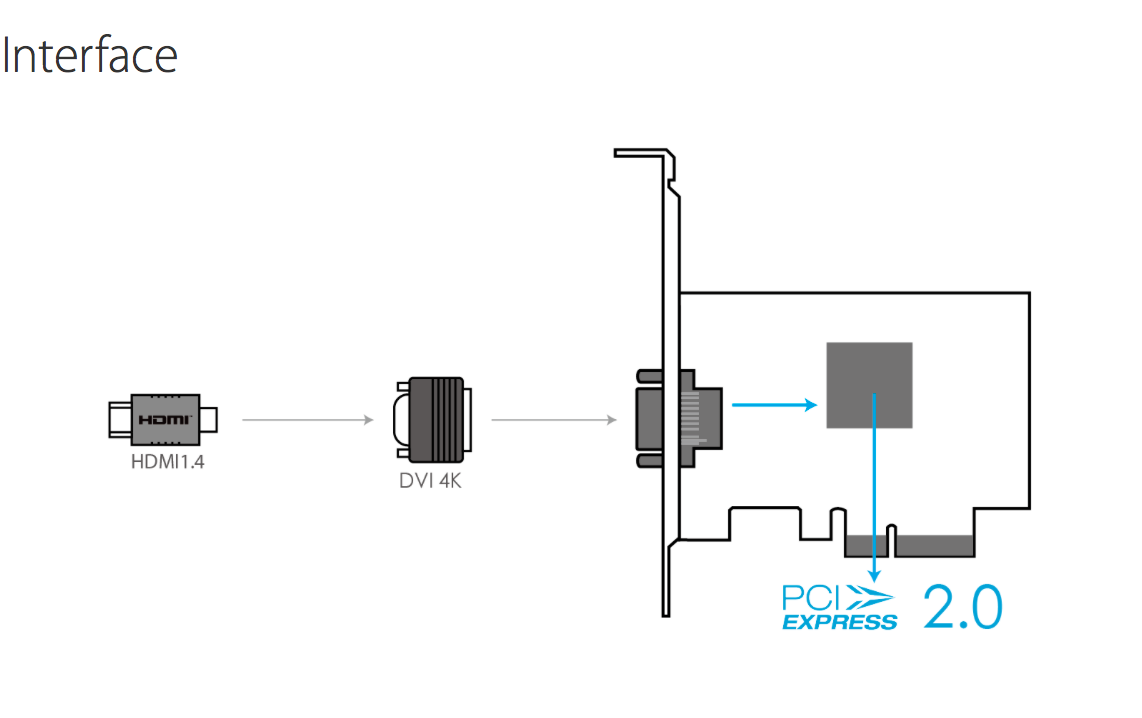

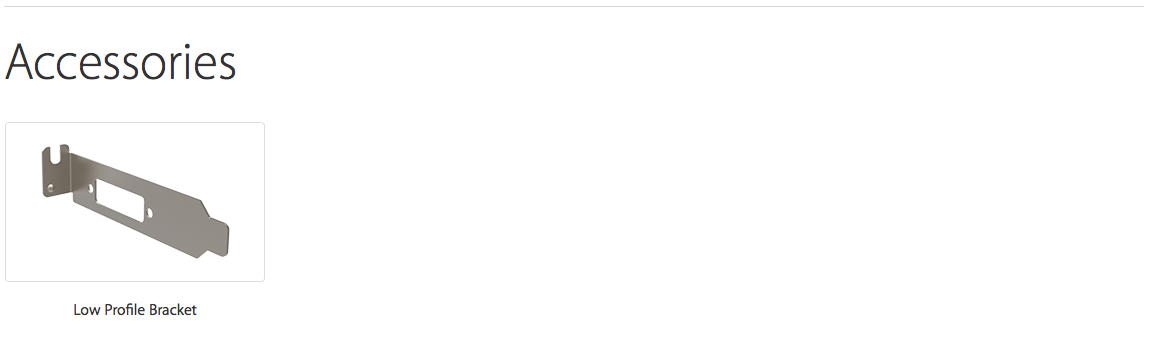

Magewell_Pro-Capture_DVI_4K_Banner_1 Magewell_Pro-Capture_DVI_4K_Interface Magewell_Pro-Capture_DVI_4K_Features Magewell_Pro-Capture_DVI_4K_Accessories

Video-Eingang: DVI, HDMI
Geräteanschluss: PCI Express
Weiterführende Links zu "Magewell Pro Capture DVI 4K"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro Capture DVI 4K"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Datasheet​
Specifications

Specifications

Supported OS
  • Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)
  • Linux (based on V4L2 , supports x86, x64 & arm architecture)
  • Mac OS X(10.9 and above)
Supported APIs
  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA
Supported Software
  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software
Input Interfaces
  • DVI
    • DVI-D 1.0(Single or dual link)
    • HDMI 1.4
Output Interfaces
  • PCIe Gen2 x4
Input Features
  • Support for input video resolutions up to 4096×2160 pixels
HDMI Specific Features
  • Dual 165MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for single link DVI or HDMI signals at pixel rate no more than 165MHz
  • Support for dual link DVI signals at pixel rate no more than 330MHz
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
Video Output Formats
  • Support for output image resolutions up to 4096×2160 pixels
  • Support for output frame rates up to 144fps. (Actual output frame rate can be limited by PCIe bandwidth & image resolution)
  • Support for 4:2:0 8-bit output formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit output formats: V410, Y410
  • More output formats are supported via Pro Capture SDK for DirectKS
Video Processing Features
  • Two video processing pipelines with ~360Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Wave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of output aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of output color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion
  • Video OSD composition
    • Support for PNG OSD image (up to 4096×2160)
    • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System
  • Support for multiple cards plugged to one system
  • On-board rotary switch to set card number, with 16 positions from 0 to F
  • System hardware device tree will display “01: Pro Capture DVI 4K” when rotary switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Multiple Output Streams
  • Unlimited output streams for any one input channel
  • Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream
Ultra Low Latency Support
  • Latency of 64 video lines
  • Partial notification mode in SDK
Timestamp &A/V Synchronization
  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)
Video Output SG-DMA
  • ~1200MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets
SDK
  • Pro Capture SDK for DirectShow for easy integration (Windows)
  • Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)
Windows Driver Tweaks
  • All options can be controled by three levels of registry key: global level, product level and device level
  • Video,Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade
  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
LED Indicator
  • Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor
  • Low profile PCIe x4 Add-on Card
  • 92.76mm x 68.88mm (without PCI bracket)
Power Consumption
  • Max current at 12V TBD
  • Max current at 3.3V TBD
  • Max power consumption TBD
Working Environment
  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
