Magewell Eco Capture HDMI 4K M.2 FPC

339,00 € *

zzgl.16% MwSt.zzgl. Versandkosten

Sofort versandfertig, Lieferzeit ca. 1-2 Tage

Alle Preise sind Listenpreise zzgl. 16% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303883
  Magewell Eco Capture HDMI 4K M.2 FPC   Der Eco Capture HDMI 4K M.2... mehr
Produktinformationen "Magewell Eco Capture HDMI 4K M.2 FPC"

Magewell_eco_capture_dual_hdmi-11514-FPC-Banner_1

Magewell Eco Capture HDMI 4K M.2 FPC

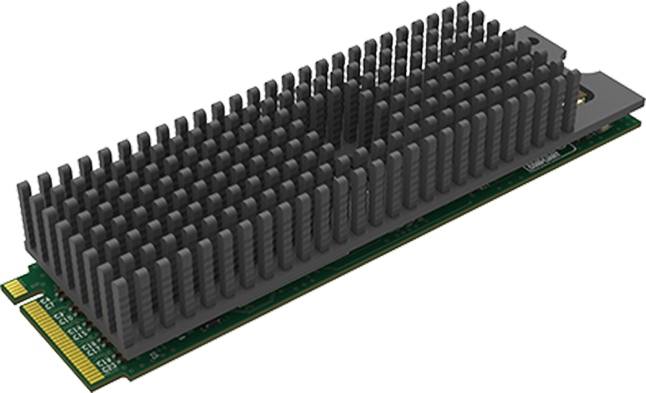

Der Eco Capture HDMI 4K M.2 FPC aus Magewells Eco Capture-Familie verfügt über eine Hochgeschwindigkeits-PCIe 2.0-Busschnittstelle mit einem M.2-Anschluss, der eine Einkanal-4K-Aufnahme (Ultra HD) ermöglicht. Der Eco Capture HDMI 4K M.2 erfasst Videos bis zu 4096 × 2160 bei 30 Bildern pro Sekunde über HDMI. Dabei unterstützt er auch die Aufzeichnung von eingebetteten Audiosignalen.

Die Magewell Eco Capture Modelle messen jeweils 22x80mm, passend zur M.2 2280 Standard Spezifikation. Der Energieverbrauch der Eco Capture-Karten fällt 30% bis 70% niedriger aus (je nach Modell) als vergleichbare Magewell Pro Capture-Karten-Modelle mit ähnlicher Eingangssignal-Konnektivität.

Die Stream-Replikation ermöglicht es, dass jeder Eingangskanal gleichzeitig mit identischen Capture-Parametern an mehrere Software-Applikationen ausgeliefert wird, so dass gleichzeitige Funktionalität wie Codierung, Aufzeichnung und Vorschau durch verschiedene Tools ermöglicht wird. Hochwertige Videobearbeitungsfunktionen inklusive Auf- / Abwärts- / Cross-Skalierung, Bildsteuerung und Farbraumumwandlung werden durch das Onboard-FPGA der Karten durchgeführt, wodurch die CPU-Auslastung reduziert wird, während zusätzliche Prozesse wie Frame Rate Conversion und De-Interlacing zur Verfügung stehen.

Die M.2 Eco Capture Modelle stehehn mit Treibern für Windows und Linux Betriebssysteme zur Verfügung. OS-native Capture-APIs wie DirectShow, DirectKS, V4L2 und ALSA werden unterstützt, während ein umfassendes SDK für Entwickler angeboten wird, um direkt auf die volle Funktionssatz der Karten zuzugreifen.

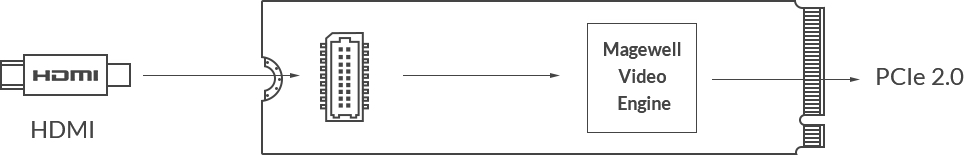

Interface




Magewell_Eco-Capture-HDMI-4K-M-2EGGHoIr2zGItV





Specifications and Features




Interface  VideoEngine  SignalIdentification  SoftwareEnvironment

 Interface

Video Engine

Signal Detection & Support

Software Environment

Input Interface
  • HDMI x1
  • Support input resolution up to 4096×2160 pixels

Host Interface

  • M.2(PCIe Gen2 x4)

8-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode

Auto Detection of Input Signal Format

3D HDMI

Time Code



OS

  • Windows, Linux

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express



Others


Low Power Consumption

Mounting Hole

Dip Switch

Multiple Replicated Capture Streams

Continuously Work for 24hx7

LED Status Indicator



Low Latency Mode

Windows&Linux SDK



Multiple Devices on One Host

2-year Warranty





Accessory included

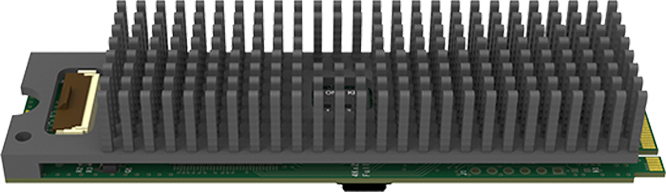

Magewell_eco_capture_hdmi_4k-11524_FPC_to_HDMI_type_Aadapters_1QOiPSpnFGCXXl Magewell_eco_capture_hdmi_4k-11524_FPCribbon_cables_1BqMvhQlF7jN3h





Video-Eingang: HDMI
Geräteanschluss: M.2 2280 Type M (PCIe Gen2 x4)
Weiterführende Links zu "Magewell Eco Capture HDMI 4K M.2 FPC"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Eco Capture HDMI 4K M.2 FPC"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Eco Capture HDMI 4K M.2 FPC Manual​
Eco Capture HDMI 4K M.2 FPC Datasheet​
Specifications​

Specifications

Supported OS

  • Windows
    • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
  • Linux (support x86, x64 & ARM architecture)
    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
    • CentOS 6.5/7 (x86 & x64)
    • Fedora 25/26/27 (x86 & x64)
    • Red hat 6.5 and above (x86 & x64)
    • Other Linux OS with kernel version 2.6.35 and above

Recommended OS (tested)

  • Windows
    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux
    • Ubuntu 12.04/14.04/16.04 (x86 & x64)
    • Ubuntu 17.04/17.10/18.04 (x64)
    • CentOS 6.5/7.2 (x86 & x64)
    • Fedora 25/26 (x64)
    • Red hat 6.5 (x86 & x64)

Supported APIs

  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA

Supported Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

  • JST SHD 20-Pin socket (Part number: 11520)
    • DVI-D 1.0
    • HDMI 1.4
  • FPC 20-Pin socket (Part number: 11524)
    • DVI-D 1.0
    • HDMI 1.4

Host Interfaces

  • M.2 2280 Type M (PCIe Gen2 x4)

Input features

  • Support for input video resolutions up to 4096x2160 pixels

HDMI Specific Features

  • 297MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
  • Full colorimetry support
  • Support for RGB/YUV 4: 4: 4 8-bit format signals with a pixel frequency of no more than 297MHz
  • Support for YUV 4:2:2 12-bit format signals with a pixel frequency of no more than 297MHz
  • Support for RGB/YUV 4:4:4 10/12-bit format signals with a pixel frequency of no more than 170MHz
  • Support for up to 8-channel IEC60958/IEC61937 audio streams
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

Video Capture Formats

  • Support for capture image resolutions up to 4096x2160 pixels
  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth & image resolution)
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • More capture formats are supported via Magewell Capture SDK for DirectKS

Video Processing Features

  • video processing pipeline with ~360Mpixels/s processing bandwidth
  • 8-bit 4:4:4 video processing
  • Video cropping
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
    • Top field only
    • Bottom field only
  • Video aspect ratio conversion
    • Auto or manual selection of input aspect ratio
    • Auto or manual selection of capture aspect ratio
    • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
  • Video color format conversionVideo frame rate conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of capture color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range
  • Video frame rate conversion

Multiple Cards per System

  • Support for multiple cards plugged to one system

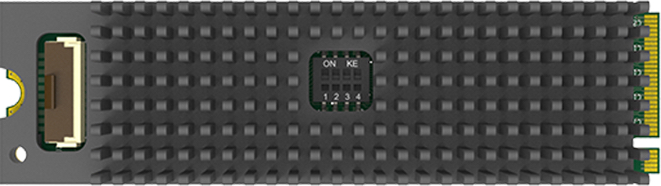

  • On-board dip switch to set card number with 16 positions
  • System hardware device tree will display “01: Eco Capture HDMI 4K M.2” when dip switch is set to 0001, and so on
  • The video and audio device names displayed in your software will include the card number (set by the dip switch)

Multiple Replicated Capture Streams

  • Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

Timestamp & A/V Synchronization

  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

  • ~1200MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets

SDK

  • Magewell Capture SDK for DirectShow for easy integration (Windows)
  • Magewell Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
  • Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: idle
    • On: input signal locked
    • Off: input signal unlocked
    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • M.2 2280 standard size

Accessories

  • SHD to HDMI type A cables (Part number: 11520)
  • FPC ribbon cable (Part number: 11524)
  • FPC to HDMI type A adapter (Part number: 11524)

Power Consumption

  • Max current at 3.3V: ~ 1.12 A
  • Max power consumption: ~ 3.75 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
