Magewell Eco Capture SDI 4K Plus M.2

719,97 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 3-5 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 309979
  Magewell Eco Capture SDI 4K Plus M.2    • Einkannal 4K... mehr
Produktinformationen "Magewell Eco Capture SDI 4K Plus M.2"

Magewell-Eco-Capture-SDI-4K-Plus_Banner



Magewell Eco Capture SDI 4K Plus M.2




 • Einkannal 4K Bilderfassungskarte • Captures SD/HD/3G/6G/12G SDI + embedded audio • Loop-through SD/HD/3G/6G/12G SDI + embedded audio

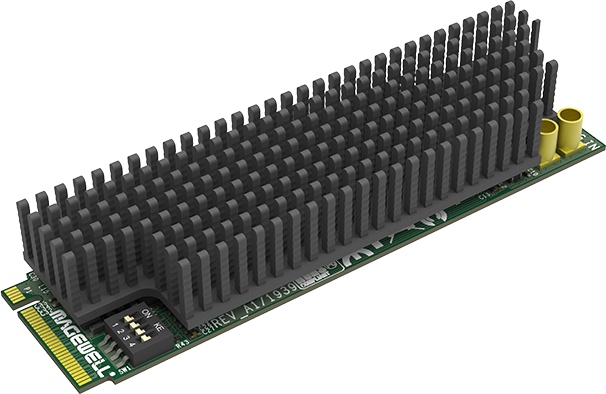

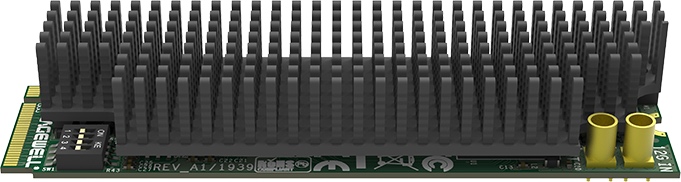

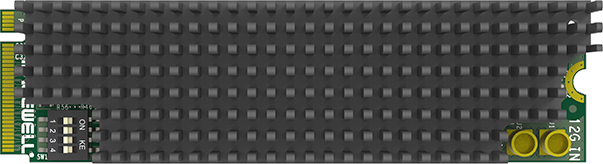

Die Magewell Eco Capture SDI 4K Plus M.2 Karte, ist eine Bilderfassungskarte für SDI-Eingangssignale. Es können 4K Eingangssignale mit einer maximalen Auflösung von 4096 x 2160 Pixel und bis zu 144 fps aufgezeichnet werden. Dabei kann das aufgezeichnete Signal direkt über den Loop-Through Ausgang wieder ausgegeben werden. Auf Grund der kompakten Baugröße und den M.2-PCIe-Anschluss, findet diese Karte auch in kleinen Gehäusen Platz und kann leicht in Mini-PC´s nachgerüstet werden.






Magewell-Eco-Capture-SDI-4K-Plus_Interface_Banner






Spezifikationen und Eigenschaften

Interface  VideoEngine  SignalIdentification  SoftwareEnvironment
Interface Video Engine Signal Detection & Support Software Environment

Input Interface

  • SD/HD/3G/6G/12G SDI
  • Support input resolution up to 4096×2160 pixels

Loop-through Interface

  • SD/HD/3G/6G/12G SDI

Host Interface

  • M.2(PCIe Gen2 x4


10-bit video processing

Deinterlace

Cropping

Color Adjustment

Hardware Timestamp

Color Space Conversion

Up/down Conversion

Aspect Ratio Conversion

SG-DMA Transmission mode



Auto Detection of Input Signal Format

Closed Caption



OS

  • Windows, Linux

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express

Compatible Software








Weitere Eigenschaften

  • Energieeffizient
  • Montageloch
  • DIP Schalter
  • Mehrere Replikationserfassungsströme
  • 24/7 Betrieb möglich
  • LED-Statusanzeige
  • Modus mit niedriger Latenz
  • Windows & Linux SDK
  • Mehrere Geräte auf einem Host
  • 2 Jahre Garantie






Zubehör (im Lieferumfang enthalten)

EcoCaptureSDI4KPlusM2-90052
2 x MMCX to SDI breakout

Part number: 90052



Video-Eingang: SDI
Geräteanschluss: M.2 2280 Type M (PCIe Gen2 x4)
Weiterführende Links zu "Magewell Eco Capture SDI 4K Plus M.2"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Eco Capture SDI 4K Plus M.2"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Spezifikationen

Eco Capture SDI 4K Plus M.2 Specifications

Eco Capture SDI 4K Plus M.2 Specifications


Supported OS

  • Windows
    • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
  • Linux (support x86, x64 & ARM architecture)
    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
    • CentOS 6.5/7 (x86 & x64)
    • Fedora 25/26/27 (x86 & x64)
    • Red hat 6.5 and above (x86 & x64)
    • Other Linux OS with kernel version 2.6.35 and above

Recommended OS (tested)

  • Windows
    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux
    • Ubuntu 12.04/14.04/16.04 (x86 & x64)
    • Ubuntu 17.04/17.10/18.04 (x64)
    • CentOS 6.5/7.2 (x86 & x64)
    • Fedora 25/26 (x64)
    • Red hat 6.5 (x86 & x64)

Supported APIs

  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA

Supported Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

  • MMCX
    • SD/HD/3G/6G/12G SDI

Loop-through Interfaces

  • MMCX
    • SD/HD/3G/6G/12G SDI

Host Interface

  • M.2 2280 Type M (PCIe Gen2 x4)

Input Features

  • Support for input video resolutions up to 4096x2160 pixels

SDI Specific Features

  • Integrated cable equalizer extending the cable length as follows:Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/6G/12G standards
    • up to 430m for SD-SDI signals
    • up to 200m for HD-SDI signals
    • up to 110m for 3G-SDI signals
    • up to 50m for 6G-SDI signals
    • up to 30m for 12G-SDI signals
  • Support for 4K (4096x2160) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 (mono) audio channels at 48KHz
  • Support for extraction of audio formation information & channel status data
  • Support for Closed Caption via SDK

Video Capture Formats

  • Support for capture image resolutions up to 4096x2160 pixels
  • Support for capture frame rates up to 144fps (Actual capture frame rate can be limited by PCIe bandwidth. )
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • More capture formats are supported via SDK

Video Processing Features

  • Video processing pipelines with ~720Mpixels/s processing bandwidth
  • 10-bit 4:4:4 video processing
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
  • Video color format conversionVideo frame rate conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of capture color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range

Multiple Cards per System

  • Support for multiple cards plugged to one system
  • On-board dip switch to set card number with 16 positions
  • System hardware device tree will display “01: Eco Capture SDI 4K Plus M.2” when dip switch is set to 0001, and so on
  • The video and audio device names displayed in your software will include the card number (set by the dip switch)

Multiple Replicated Capture Streams

  • Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

Timestamp & A/V Synchronization

  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with hardware clock
  • Hardware clock can be synchronized across cards (via SDK)

Video Capture SG-DMA

  • ~1600MB/s per channel DMA bandwidth in PCIe 2.x system
  • ~800MB/s per channel DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets

SDK

  • Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
  • Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level and device level
  • Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
  • Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version.

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: idle
    • On: input signal locked
    • Off: input signal unlocked
    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • M.2 2280 standard size

Accessories

  • MMCX to BNC cable

Power Consumption

  • Max current at 3.3V: ~ 2.17 A
  • Max power consumption: ~ 7.16 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
