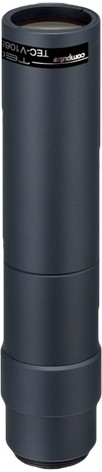

Preview: 65 mm WD C-Mount Objektiv Computar TEC-V1065MPW

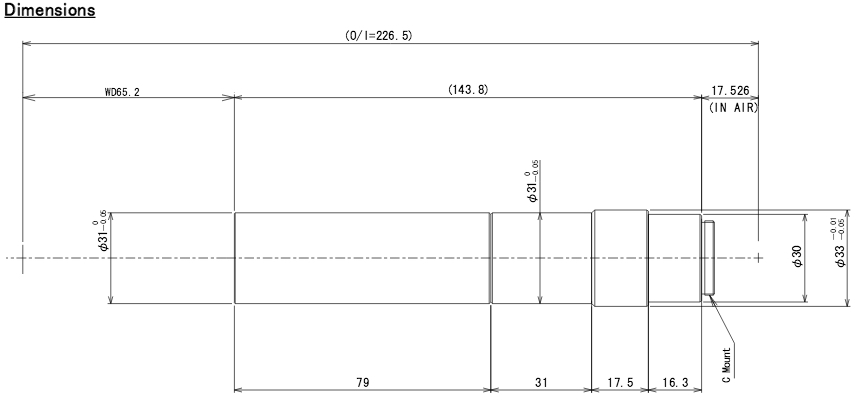

Preview: 65 mm WD C-Mount Objektiv Computar TEC-V1065MPW_Dimensions

65 mm WD C-Mount Objektiv Computar TEC-V1065MPW

65 mm WD C-Mount Objektiv Computar TEC-V1065MPW_Dimensions

€584.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

Order number: 303190

65,2 mm WD C-Mount Lens Computar TEC-V1065MPW V-Series Compatible with 5MP sensors on 1 "... more

Product information "65 mm WD C-Mount Lens Computar TEC-V1065MPW"

65,2 mm WD C-Mount Lens Computar TEC-V1065MPW V-Series

Compatible with 5MP sensors on 1 " cameras
Designed for 65.2mm working distance
1.0x magnification
Low TV distortion correction up to the furthest corner (0.01 - 0.02s%)

Computar No.	TEC-V0565MPW
Format	1"
Working Distance	65,2 mm
Effective F Number	9,0
NA (Nummerical Aperture)	0,055
Max. Image Format	Ø 16 mm
Magnification	1,0 X
Field of View 1"	12,8 x 9,6 mm
Field of View 2/3"	8,8 x 6,6 mm
Field of View 1/1.8"	7,2 x 5,4 mm
Field of View 1/2"	6,4 x 4,8 mm
Dimensions	Ø 31 x 143,8 mm
Weight	158 g
Temperature range	-10°C - +50°C
Mount	C-Mount

Lens type:	telecentric
Working Distance:	65 mm
Depth of Field:	0,72 mm
Sensor:	1
Lens-Mount:	C-Mount
Resolution:	5 Megapixel
Aperture:	9,0, Fix
F-theta Distortion (-%):	- 0,023%
Image-Circle:	Ø 16.00 mm
Coaxial:	No
Magnification:	1,0 x
