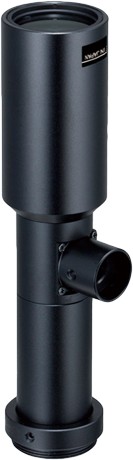

110 mm WD C-Mount Lens Computar TEC-M08110MPC

€402.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

  • 303181
111,0 mm WD C-Mount Lens Computar TEC-M08110MPC w/coaxial M-Series Compatible with 2MP... more
Product information "110 mm WD C-Mount Lens Computar TEC-M08110MPC"
111,0 mm WD C-Mount Lens Computar TEC-M08110MPC w/coaxial M-Series
  • Compatible with 2MP sensors on 2/3 " cameras
  • Designed for 111mm working distance
  • 0.8x magnification
  • Low TV distortion correction up to the furthest corner (0.01 - 0.03s%)
  • Coaxial lighting capability
Computar No. TEC-M08110MPC
Format 2/3"
Working Distance 111,0 mm
Effective F Number 10,2
NA (Nummerical Aperture) 0,038
Max. Image Format Ø 11 mm
Magnification 0,8 X
Field of View 2/3" 11,0 x 8,2 mm
Field of View 1/1.8" 8,9 x 6,6 mm
Field of View 1/2" 8,0 x 6,0 mm
Field of View 1/3" 6,0 x 4,5 mm

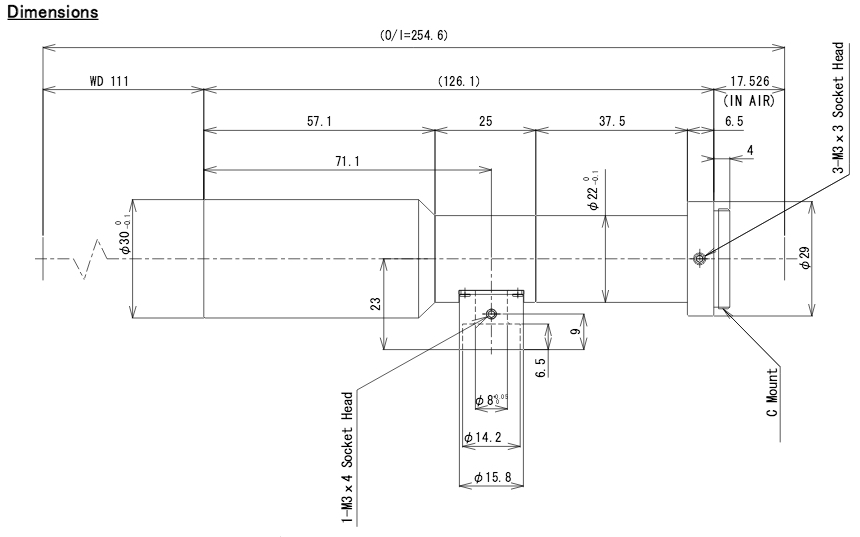

Dimensions Ø 30 x 126,1 mm
Weight 106 g
Temperature range -10°C - +50°C
Mount C-Mount
Lens type: telecentric
Depth of Field: 1,31 mm
Working Distance: 111 mm
Sensor: 1/1,8, 1/2, 1/3, 2/3
Lens-Mount: C-Mount
Resolution: 2 Megapixel
Aperture: 10,2, Fix
F-theta Distortion (-%): - 0,027%
Image-Circle: Ø 11.0 mm
Coaxial: Yes
Magnification: 0,8 x
