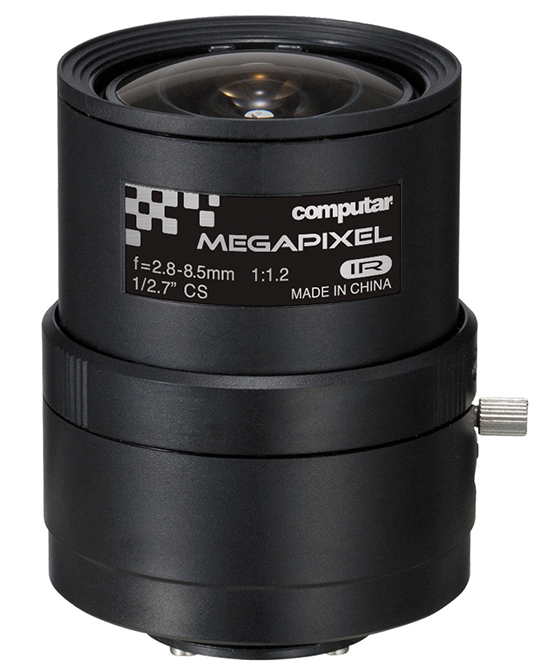

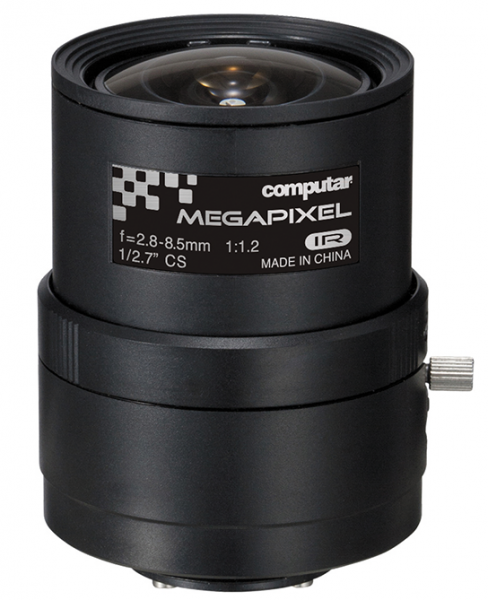

2,8 - 8,5 mm CS-Mount Computar 5MP Lens A3Z2812CS-MPWIR
- Order number: 303438
2,8 - 8,5 mm CS-Mount Computar 5MP Lens A3Z2812CS-MPWIR "A" Series 5 Megapixel, 1/2.7"... more
Product information "2,8 - 8,5 mm CS-Mount Computar 5MP Lens A3Z2812CS-MPWIR"
2,8 - 8,5 mm CS-Mount Computar 5MP Lens A3Z2812CS-MPWIR
"A" Series 5 Megapixel, 1/2.7" F1.2 Varifocal, HD Serie manuell (CS Mount) Day/Night IR
Thanks to the variable focal length, you no longer require a whole host of fi xed focal lengths (e.g. 4.0 mm; 8.0 mm, …) but you can cover most applications with one single lens (e.g. 3.0 mm – 8.0 mm). Moreover, they are used when the required focal length for an application is not known in advance.
Description
- 1 / 2.7 "format
- 5 megapixel
- 2.8-8.5mm Varifocal
- Full HD Format
- Manual Iris
- Precise Focus Adjustment
- IR Corrected Optics
- Corner Brightness
| Article-No. | 303438 |
| Computar-Name | A3Z2812CS-MPWIR |
| Format | 1/2.7" |
| Mount | CS |
| Focal length | 2,8 mm - 8,5 mm |
| Back Focal length | 7,3 mm |
| Max. Image Format | 3,2 mm x 5,8 mm (Ø 6.6 mm) |
| Aperture | F1.2 - F16C |
| Focus range | 0,5 m - Inf. |
| Zoom range | 2,8 mm - 8,5 mm |
| Iris control | manuell |
| Focus control | manuell |
| Zoom control | manuell |

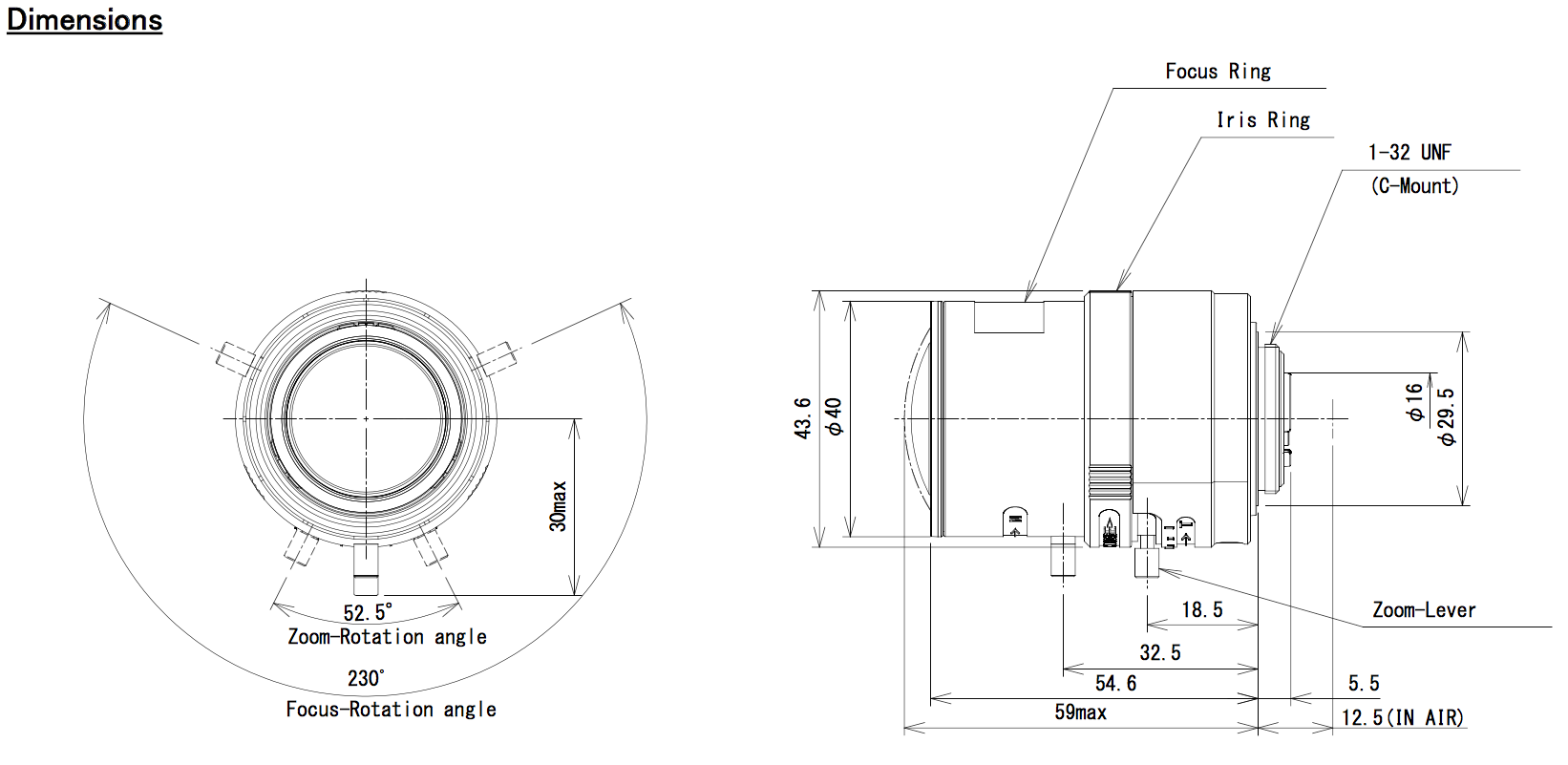

| Dimensions in mm | Ø 43,6 x 59,0 mm |
| Weight | 64,0 g |
| Temperature range | -10°C - +50°C |
| Lens type: | Vario focal, Zoom |
| M.O.D.: | 0,5 m |
| Sensor: | 1/2,7, 1/3, 1/4 |
| Lens-Mount: | CS-Mount |
| Focal length: | 2,8 mm, 8,5 mm |
| Resolution: | 5 Megapixel |
| Aperture: | 1,2, Manual Aparture |
| Filter: | suitable for IR |
