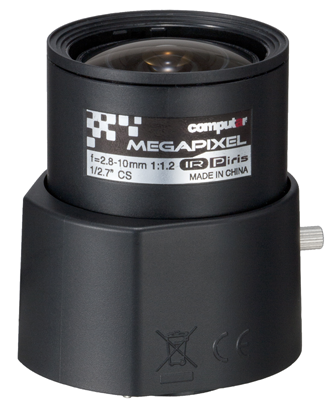

2,8 - 10,0 mm CS-Mount Computar 3MP Lens AG4Z2812KCS-MPIR

€87.50 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

  • 303445
2,8 - 10,0 mm CS-Mount Computar 3MP Lens AG4Z2812KCS-MPIR "A" Series 3 Megapixel, 1/2.7"... more
Product information "2,8 - 10,0 mm CS-Mount Computar 3MP Lens AG4Z2812KCS-MPIR"

2,8 - 10,0 mm CS-Mount Computar 3MP Lens AG4Z2812KCS-MPIR

"A" Series 3 Megapixel, 1/2.7" 2.8-10mm F1.2 Varifocal, HD Series, P-iris (CS Mount) Day/Night IR

Thanks to the variable focal length, you no longer require a whole host of fi xed focal lengths (e.g. 4.0 mm; 8.0 mm, …) but you can cover most applications with one single lens (e.g. 3.0 mm – 8.0 mm). Moreover, they are used when the required focal length for an application is not known in advance.

P-iris_black

DESCRIPTION

For use with special P-Iris cameras ONLY!

To protect cameras from damage, P-iris connector plugs are designed NOT TO fit regular cameras.

  • 1/2.7” Format
  • 3 Megapixel
  • 2.8-10mm Varifocal
  • Full HD Format
  • P-Iris (precise iris) technology
  • Precise Focus Adjustment
  • New Focus Lock System
  • IR Corrected Optics
  • Corner Brightness
Article-No. 303445
Computar-Name AG4Z2812KCS-MPIR
Format 1/2.7"
Mount CS
Focal length 2,8 mm - 10,0 mm
Back focal length Tele 7,3 mm / Wide 7.3 mm
Max. Image Format 3,2 mm x 5,8 mm (Ø 6.6 mm)
Aperture F1.2 - F16C
Focus range 0,5 m - Inf.
Zoom range 2,8 mm - 10,0 mm
Iris control P-Iris
Focus control manual
Zoom control manual

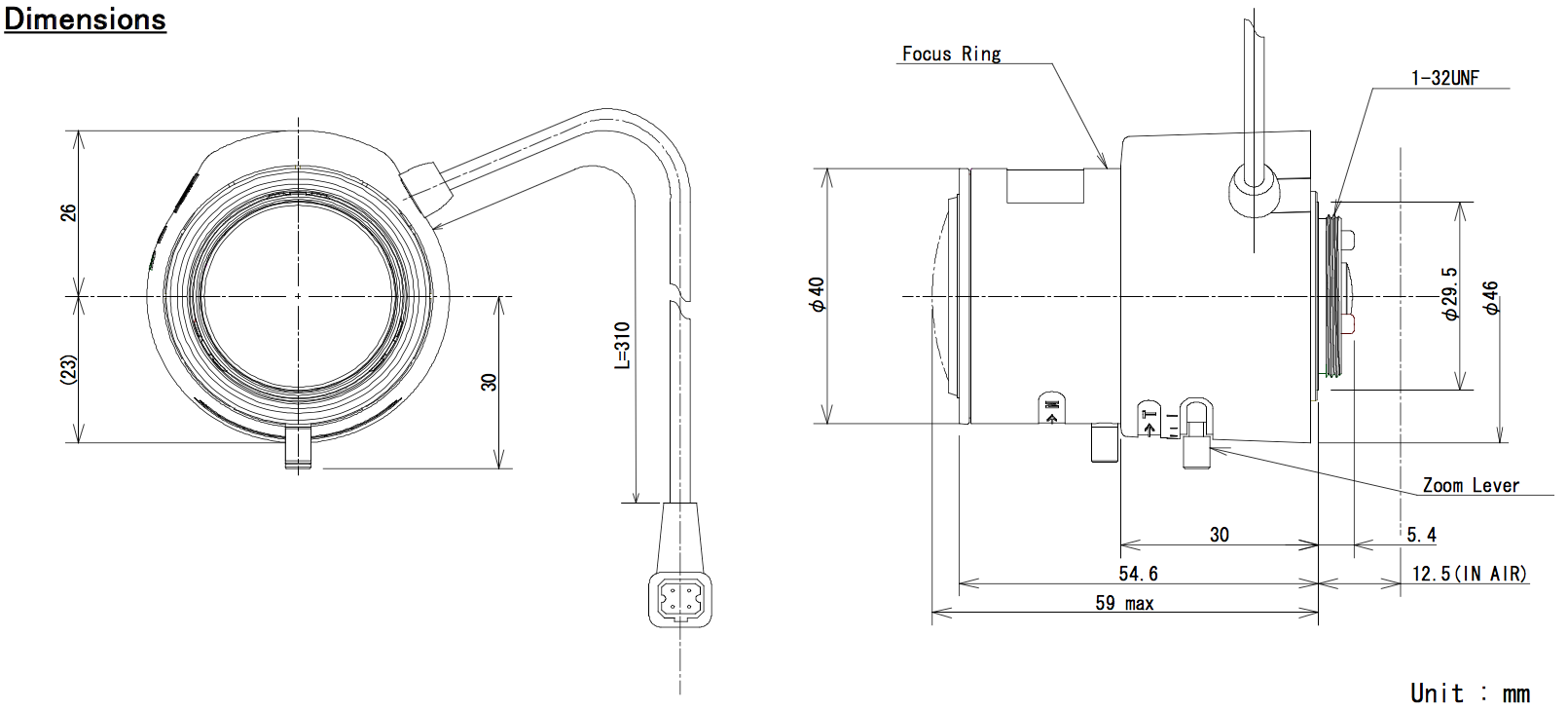

Dimensions in mm Ø 40 mm x 49,0 mm x 59,0 mm
Weight 65,0 g
Temperature range -10°C - +50°C
Lens type: Vario focal, Zoom
M.O.D.: 0,5 m
Sensor: 1/2,7, 1/3, 1/4
Lens-Mount: CS-Mount
Focal length: 2,8 mm, 10 mm
Resolution: 3 Megapixel
Aperture: 1,2, P-Iris
Filter: suitable for IR
