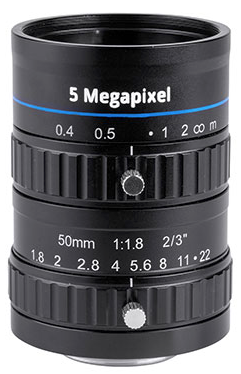

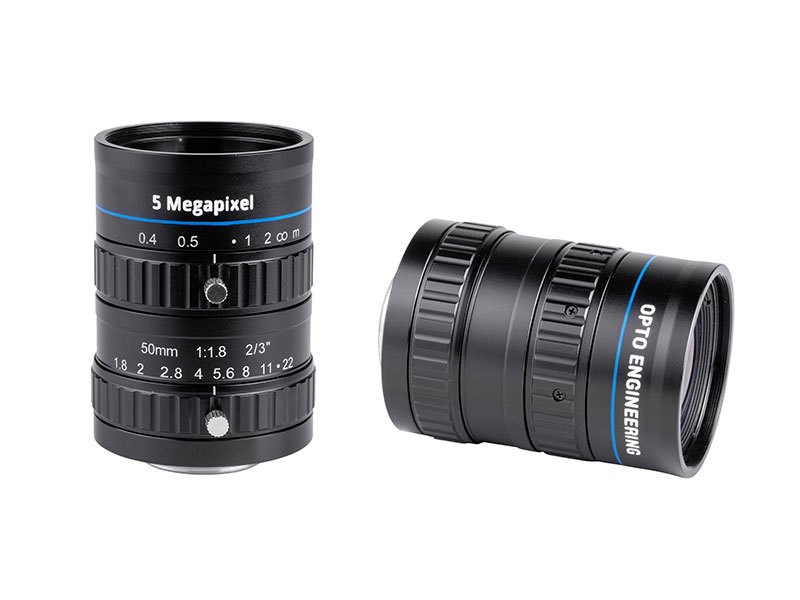

50 mm C-Mount Objektiv Opto Engineering EN5MP5018

Preview: 50 mm C-Mount Lens Opto Engineering EN5MP5018_Dimensions

50 mm C-Mount Objektiv Opto Engineering EN5MP5018

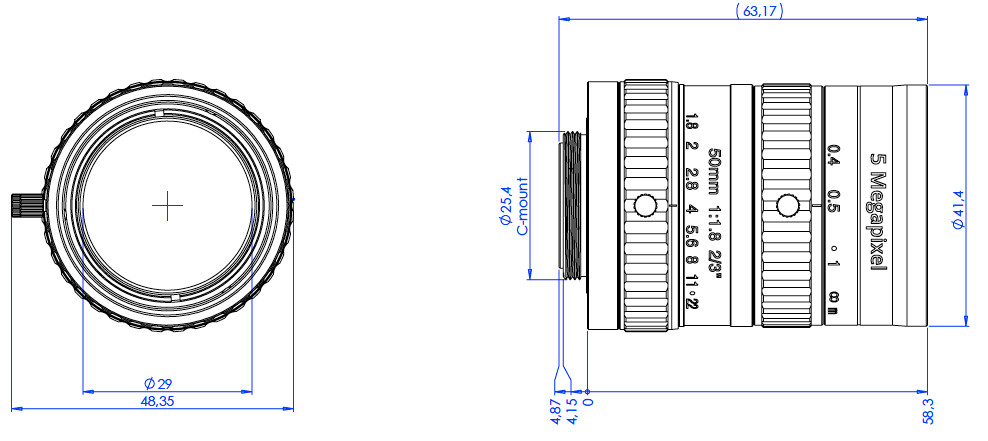

50 mm C-Mount Lens Opto Engineering EN5MP5018_Dimensions

Preise auf Anfrage.

Order number: 303755

Fixed focal 5 Megapixel lens, focal length 50 mm, f# 1.8 - 22, C-mount EN5MP... more

Close menu

Product information "50 mm C-Mount Objektiv Opto Engineering EN5MP5018"

Fixed focal 5 Megapixel lens, focal length 50 mm, f# 1.8 - 22, C-mount

EN5MP series is a series of high resolution fixed focal lenses designed for use in machine vision applications. A wide range of focal lengths provides more choices of field of view and working distance for many different system configurations.

Together with high resolution cameras and proper illumination, EN5MP lenses allow you to design high resolution vision systems to solve complex or critical tasks. E.g. OCR/OCV, robot guidance...etc. and for the inspection of critical samples like connectors, electronic components, vials...etc.

Opto Engineering® can save you time and money by providing bundle solutions including a suitable lens, camera and illuminator, optimized for your applications requirements and type of samples.

Key advantages

High resolution
Designed for high resolution cameras up to 5 Megapixel with 2/3” sensor.
Suitable for more complex applications
Ideal to achieve complex vision tasks.
Cost saving solution
High optical performance with reasonable cost.
Robust design
Designed for use in machine vision applications.
Wide product range
Covers the most popular focal lengths used.

Optical Specifications
Focal length	(mm)	50
Magnification		0.132
Image Circle Ø	(mm)	11
Max Sensor Size		2/3″
Working Distance	(mm)	400 - ∞
Aperture F/#		1.8 - 22
Back Focal length	(mm)	13.63
Distortion	(%)	0.03
Mechanical Specifications
Mount		C
Length	(mm)	63,2
Diameter	(mm)	46,2
Filter thread		M37.5 x 0.5

Lens type:	Fixed Focal Length
M.O.D.:	0,4 m
Sensor:	2/3
Lens-Mount:	C-Mount
Focal length:	50 mm
Resolution:	5 Megapixel
Aperture:	1,8, Manual Aparture
F-theta Distortion (-%):	0,03
Filter:	suitable for IR
Filter Thread:	M37,5 x 0.5
Image-Circle:	Ø 11.0 mm
Coaxial:	No
Magnification:	0,132
