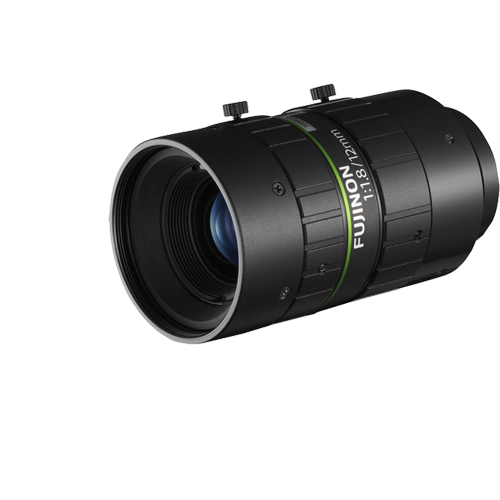

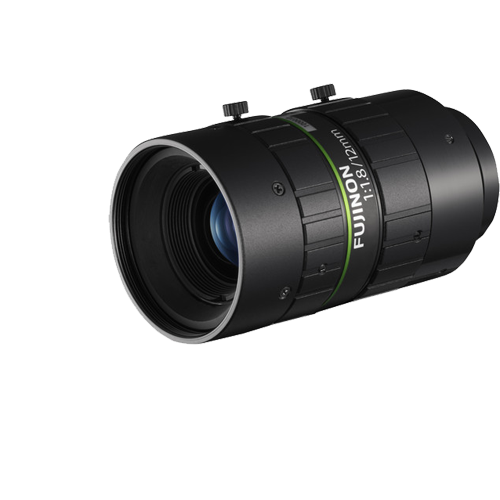

12 mm C-Mount Lens Fujinon HF1218-12M - 1.8 / 12mm

Preise auf Anfrage.
  • 303793
Description: The HF-12M lenses can resolve the high resolution of up to12 megapixels with a... more
Product information "12 mm C-Mount Lens Fujinon HF1218-12M - 1.8 / 12mm"

Description:

The HF-12M lenses can resolve the high resolution of up to12 megapixels with a pixel pitch of 2.1µm. All models of the new series maintain the high level of even sharpness from the image center up to the corners and compensate for the resolution degradation that typically occurs when changing working distance or aperture value. This enables the consistent delivery of high-resolution images even under varying installation and shooting conditions at the manufacturing frontline. Fujinon

  • 12MPixel
  • for 2/3 "camera
  • for pixel size 2.1μm
  • Focal length 12mm
  • Aperture 1.8-22
  • manually controlled, small construction lens
  • for C-mount
  • Fixing screws for aperture and focus

Main Features:

Advanced optical performance
When the iris (aperture) is set at the orange F4 marker on the lens barrel the
HF-12M series offers the highest resolving power of 2.1µm pixel pitch on a 2/3” sensor, which is equivalent to 12 megapixels. The HF-12M maintains ultra high definiton with 2.7µm in the whole frame area even on sensor sizes of up to 1/1.2”

Small size
Despite being high-resolution lenses, all five models come in a compact form measuring only 33mm in diameter. The small size makes the lenses the smallest lenses currently available on the market compared to other Machine Vision lenses within this resolution segment. This allows installation flexibility even in manufacturing facilities with space constraints.

Edge-to-edge sharpness
Due to physical properties the resolution varies when working distance or aperture is changed, but thanks to the unique optical design this resolution degradation is minimized. The new Fujinon lenses maintain their high resolving power from the image center to all corners even when the aperture is wide open under low light conditions as well as over changing working distances. This enables a flexible usage of the lenses in versatile applications with constant image quality.



 Article Name  HF1218-12M
 Focal length  12 mm
 Aperture  1,8 - F22
 Resolution  2,1 µm (12 Megapixel)
 MOD (Minimum Object Distance)  0,10 m
 Iris control  manual
 Focus control   manual
 Mount  C-Mount *
 Sensor  2/3"
 Angle of View 2/3" (HxV)   39.3° x 30.0°
 Filter thread  M30.5 x 0.5
 TV-Distortion  0,18%
 Dimensions (in mm)   Ø33 x 52,5
 Weigth  85 g
 Temperature range  -10°C - +50°C

* not usable with CS-Mount Cameras with Adapters to C-Mount / nicht für CS-Mount Kameras mit CS auf C-Mount Adapter einsetzbar

Lens type: Fixed Focal Length
M.O.D.: 0,10 m
Sensor: 2/3
Lens-Mount: C-Mount
Focal length: 12 mm
Resolution: 12 Megapixel
Aperture: 1,8, Manual Aparture
Filter Thread: M30,5 x 0.5
Related links to "12 mm C-Mount Lens Fujinon HF1218-12M - 1.8 / 12mm"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "12 mm C-Mount Lens Fujinon HF1218-12M - 1.8 / 12mm"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Datasheet HF1218-12M

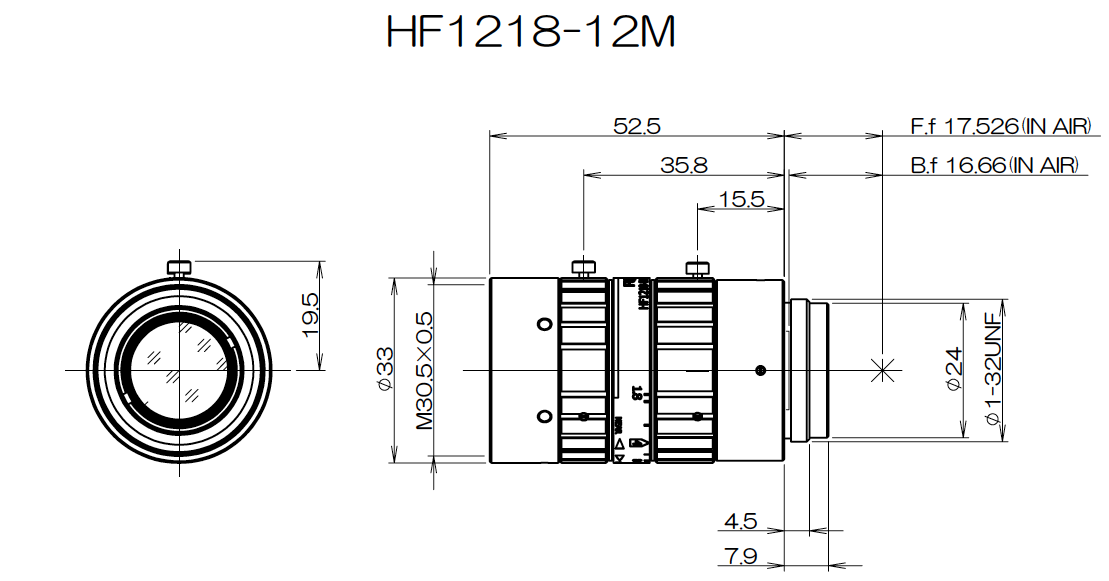

Drawing HF1218-12M​

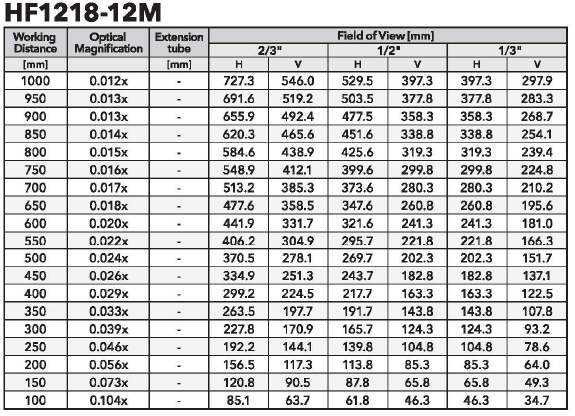

Field of View HF1218-12M​
