Magewell Pro Capture Mini SDI

Pro Capture mini SDI
246,17 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303176
Die Magewell Pro-Capture-Mini SDI ist eine ideale Lösung für Anwendungen, die die Erfassung... mehr
Produktinformationen "Magewell Pro Capture Mini SDI"

pro-capture-Mini-SDI_Banner

Die Magewell Pro-Capture-Mini SDI ist eine ideale Lösung für Anwendungen, die die Erfassung von HD-Quellen in Echtzeit erfordern. Zusätzlich zeichnet sich diese performante Karte durch Ihre geringen Abmessungen aus. Typische Anwendungen sind: die Anzeigen von SD / HD / 3G-SDI-Quellen mit Loopback: SD / SHD / 3G-SDI-Loopback

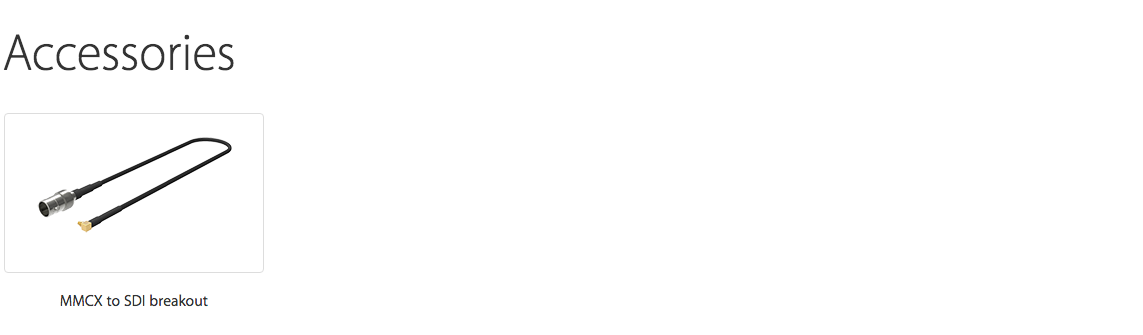

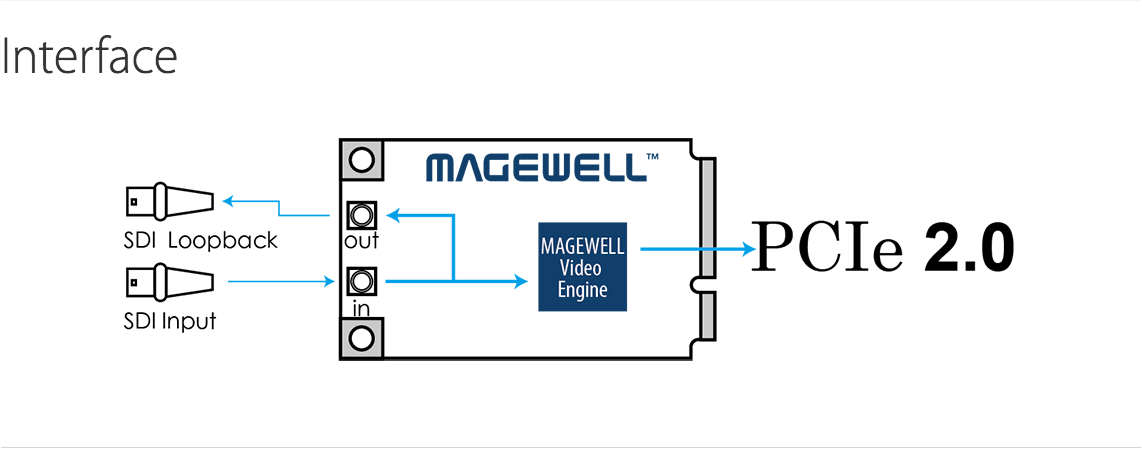

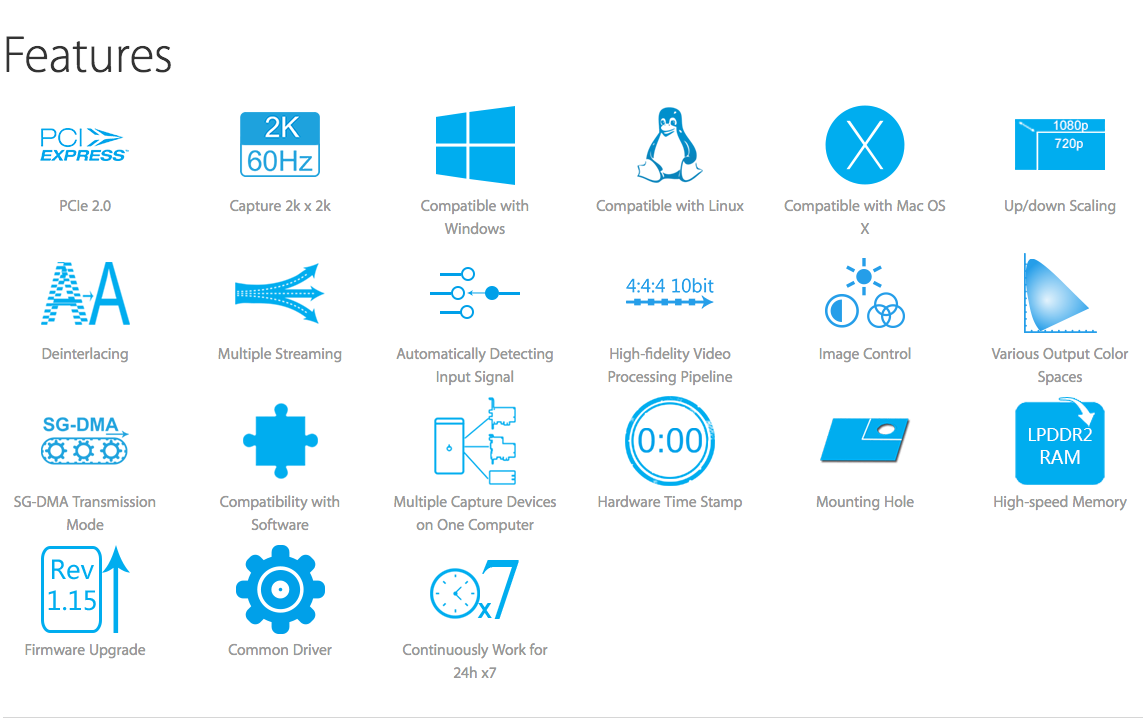

pro-capture-Mini-SDI_Interfacepro-capture-Mini-SDI_Features pro-capture-Mini-SDI_Accessories

Video-Eingang: SDI
Geräteanschluss: PCI Express Mini
Weiterführende Links zu "Magewell Pro Capture Mini SDI"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro Capture Mini SDI"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specifiaction sheet
Specifications​

Specifications

Supported OS

Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64)

Linux (based on V4L2 , supports x86, x64 & arm architecture)

Mac OS X

Supported APIs Windows
  • DirectShow
  • DirectKS
  • Wave API/DirectSound/WASAPI
Linux
  • V4L2
  • ALSA
Supported Software

VLC

VirtualDub

OBS

xSplit

vMix

VidBlaster

Wirecast

Microsoft Media Encoder

Adobe Flash Media Encoder

Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces MMCX
  • SD/HD/3G SDI
Output Interfaces

PCIe Gen2 x1

MMCX (SDI loopback)

Input Features Support for input video resolutions up to 2048×2048 pixels
SDI Specific Features

Integrated cable equalizer supporting cable lengths up to 230M for HD signals

Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards

Support for 2K (2048×1080) mode

Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

Support for 10/12-bit color depth

Support for extraction of SMPTE 352 payload identifier

Support for up to 8 (mono) audio channels at 48KHz (channels 1–8 from the 16 available in the SDI spec)

Support for extraction of audio formation information & channel status data

Limited support of 3Gb-DS: only the first stream can be captured

Limited support for capture of the first link of dual link interfaces:

  • YCbCr 4:2:2 10-bit 1080p 50/59.94/60: captured as 1080i 50/59.94/60
  • YCbCr 4:4:4 10-bit: captured as 4:2:2
  • RGB 4:4:4: R/B sub-sampled
Video Output Formats

Support for output image resolutions up to 2048×2048 pixels

Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )

Support for 4:2:0 8-bit output formats: NV12, I420, YV12 Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY

Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32

Support for 4:4:4 10-bit output formats: V410, Y410

More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one Full 10-bit video processing Video cropping Video scaling Video de-interlacing
  • Weave
  • Blend top & bottom field
  • Top field only
  • Bottom field only
Video aspect ratio conversion
  • Auto or manual selection of input aspect ratio
  • Auto or manual selection of output aspect ratio
  • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
Video color format conversion
  • Auto or manual selection of input color format & quantization range
  • Auto or manual selection of output color format, quantization range & saturation range
  • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
  • Support for Limited or Full quantization range
  • Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion Video OSD composition
  • Support for PNG OSD image (up to 2048×2048)
  • Support for dynamic loading of RGBA OSD image via SDK
Multiple Cards per System Support for multiple cards plugged to one system
Multiple Output Streams

Unlimited output streams for any one input channel

Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Ultra Low Latency Support Latency of 64 video lines Partial notification mode in SDK
Timestamp & A/V Synchronization

Hardware based 100ns high resolution clock

Audio frames (192 audio samples) & video frames are stamped with hardware clock

Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

~400MB/s per channel DMA bandwidth in PCIe 2.0 system

~200MB/s per channel DMA bandwidth in PCIe 1.0 system

Support for auto detection of Intel tiled GPU surface

Support for DirectGMA for AMD video adapter chipsets

Support for GPUDirect for Nvidia video adapter chipsets

SDK

Pro Capture SDK for DirectShow for easy integration (Windows)

Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

All options can be controled by three levels of registry key: global level, product level and device level

Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

Multiple cards in one system can be upgraded simultaneously

Cards can be upgraded without a system power shutdown when it is not in use

Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.

LED Indicator Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor

Mini PCIe Add-on Card

30mm x 51mm

Accessories MMCX to BNC breakout
Power Consumption

Max current at 3.3V ~1 A

Max power consumption ~3.3 W

Working Environment

Operating temperature: 0 to 40 deg C

Storage temperature: –20 to 70 deg C

Relative Humidity: 5% to 90% non-condensing
