Magewell Flex I/O SDI 4i2o

Benachrichtigen Sie mich, sobald der Artikel lieferbar ist.

1.137,62 € *

Lieferzeit voraussichtlich 1 - 3 Tage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.

Artikel-Nr.: 303481

Der neue Flex I / O SDI 4i2o von Magewell ist ein SDI Videograbber der die simultane... mehr

Menü schließen

Produktinformationen "Magewell Flex I/O SDI 4i2o"

Der neue Flex I / O SDI 4i2o von Magewell ist ein SDI Videograbber der die simultane Aufzeichnung und Ausgabe von 4 x Eingangs- und 2 Ausgangskanälen ermöglicht. Dabei bietet er neben den bekannten Eigenschaften der Pro Capture Serie erweiterte Features wie z.B. DUAL Link SDI Anschlussmöglichkeiten.

Die maximale Eingangsauflösung beträgt 2048 * 1080p60
Gleichzeitige Aufnahme von 4 Kanälen von SD / HD / 3G / 2K SDI + eingebetteten Audio
Gleichzeitiges Abspielen von 2 Kanälen von SD / HD / 3G / 2K SDI + eingebettetem Audio
Unterstützt 10 Bits Videoverarbeitung
Unterstützt 16 x Kanäle Audio-Input und Output.
Extraktion von Timecode möglich
Unterstützung beim Erhalten von ANC-Daten.
Dual Link SDI

Auf Grund der verwendeten DirectShow-Schnittstelle ist der Framegrabber mit gängiger und beliebter Drittanbieter-Software kompatibel. Dies gilt für die meisten Streaming-, Aufzeichnungs-, Videokonferenz- und Videostitchingsoftware.

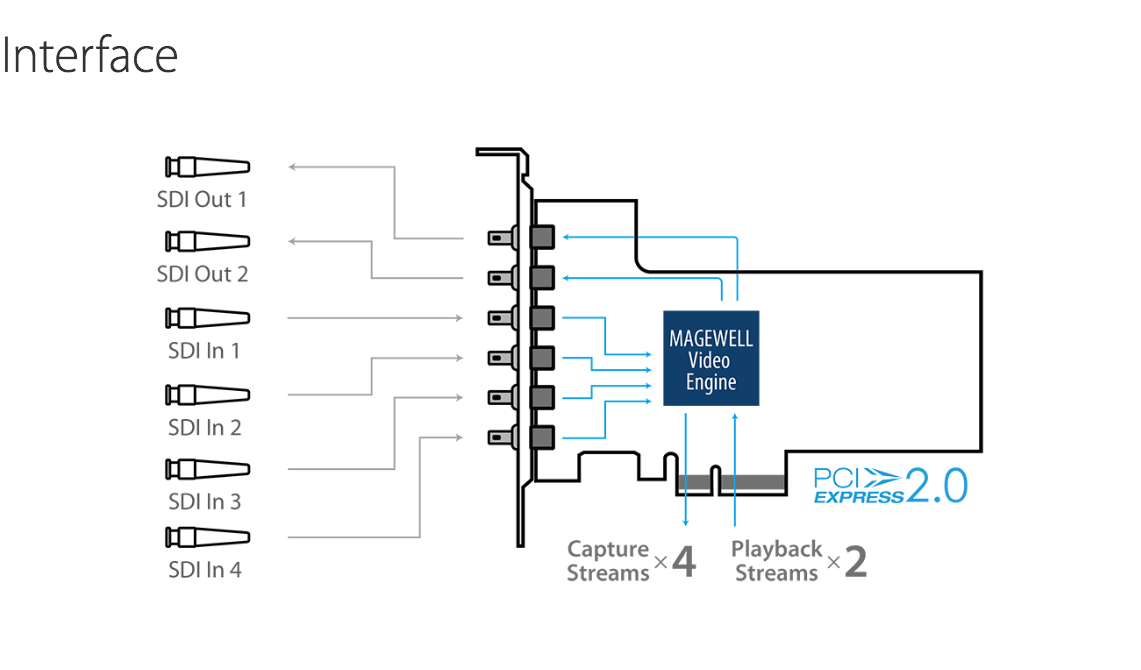

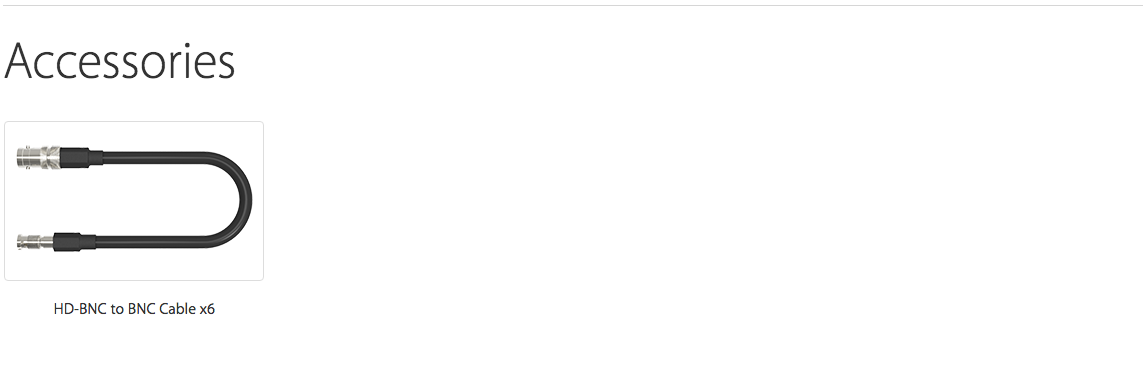

Magwell-Flex-I-O_Banner1 Magwell-Flex-I-O_Interface Magwell-Flex-I-O_Features Magwell-Flex-I-O_Capture_Playback Magwell-Flex-I-O_Accessories

Video-Eingang:	SDI
Geräteanschluss:	PCI Express

Weiterführende Links zu "Magewell Flex I/O SDI 4i2o"

Verfügbare Downloads:

Download Datasheet

Bewertungen lesen, schreiben und diskutieren... mehr

Menü schließen

Kundenbewertungen für "Magewell Flex I/O SDI 4i2o"

Bewertung schreiben

Bewertungen werden nach Überprüfung freigeschaltet.

Datasheet

Schliessen

Specifications

Schliessen

Specifications

Supported OS	Windows 7/8/8.1/10/2008/2008 R2/2012 (x86 & x64) Linux (Based on V4L2, support x86，x64 & ARM)
Supported APIs	Windows DirectShow DirectKS Wave API/DirectSound/WASAPI Linux V4L2 ALSA
Supported Software	VLC VirtualDub OBS XSplit vMix VidBlaster Wirecast Microsoft Media Encoder Adobe Flash Media Encoder Any other DirectShow, V4L2, QuickTime,AV Foundation based encoding or streaming software
Input Interfaces	4x HD-BNC SD/HD/3G SDI
Output Interfaces	2x HD-BNC SD/HD/3G SDI
Host Interfaces	PCIe Gen2 x4
Input Features	Integrated cable equalizer supporting cable lengths up to 230M for HD-SDI signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 3Gb-DL. Combine input channel 1&2 or 3&4 to one dual-link for input Support for 10/12-bit color depth Support for extraction of SMPTE 352 payload identifier Support for up to 16 audio channels at 48KHz Support for extraction of audio information and channel status Support for extraction of timecode Support for obtaining ANC data Limited support of 3Gb-DS: only the first stream can be captured
Video Capture format	Support for video resolutions up to 2048×1080 Support capture format 4:2:0 8-bit: NV12, I420, YV12 Support capture format 4:2:2 8-bit: YUY2, YUYV, UYVY Support capture format 4:4:4 8-bit: V308, IYU2, V408, BGR24, BGR32 Support capture format 4:4:4 10-bit: V410, Y410 More capture format can be set using Flex I/O SDK （based on DirectKS）
Video Capture Processing Features	Two video processing pipelines with 180 Mpixels/s processing bandwidth Fully capable of processing at 10-bit Video cropping Video scaling Video de-interlacing Weave Blend top & bottom field Top field only Bottom field only Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate conversion Video OSD composition Support for PNG OSD image (up to 2048×2160) Support for dynamic loading of RGBA OSD image via SDK
Deliver multiple Streams of captured video	For any one input channel, deliver multiple streams to the computer Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing, color adjustment and OSD settings for each individual stream
Video capture SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 2.0 system ~200MB/s per channel DMA bandwidth in PCIe 1.0 system Support for auto detection of Intel tiled GPU surface Support for DirectGMA byAMD GPU Support for GPUDirect by Nvidia GPU
Video Playback Features	Integrated cable driver supporting cable lengths up to 230M for HD-SDI signals Support for SD/HD/3Ga/3Gb/3Ga-DL/3Gb-DS standards Support for 2K (2048×1080) mode Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling Support for 3Gb-DL. Combine two output channels to one dual-link for output Support for 10/12-bit color depth Support for up to 16 audio channels at 48KHz Support for timecode output Support for custom ANC data output
Video Playback Format	Support for video resolutions up to 2048×1080 Support for output format 4:2:0 8-bit : NV12,I420 Support for output format4:2:2 8-bit : YUY2, UYVY Support for output format4:4:4 8-bit : V308, IYU2, V408, BGR24, BGR32 Support for output format 4:4:4 10-bit : V410, Y410
Video Capture Processing Features	Video processing pipelines with 180 Mpixels/s processing bandwidth Fully capable of processing at 10-bit Video scaling Video aspect ratio conversion Auto or manual selection of input aspect ratio Auto or manual selection of output aspect ratio Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox) Video color format conversion Auto or manual selection of input color format & quantization range Auto or manual selection of output color format, quantization range & saturation range Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats Support for Limited or Full quantization range Support for Limited, Full & ‘Extended gamut’ saturation range Video frame rate convert & output or directly output
Video playback SG-DMA	~400MB/s per channel DMA bandwidth in PCIe 1.x system ~600MB/s per channel DMA bandwidth in PCIe 2.x system Support for DirectGMA byAMD GPU Support for GPUDirect by Nvidia GPU
Multiple devices on one computer	Support for multiple cards plugged to one system On-board rotary switch to set card number, with 16 positions from 0 to F System hardware device tree will display “01: Flex I/O 4i2o” when rotary switch is set to 1, and so on The video and audio device names displayed in your software will include the card number (set by the rotary switch)
Ultra Low Latency Support	Latency of 64 video lines Partial notification mode in SDK
Timestamp &A/V Synchronization	Hardware based 100ns high resolution clock Audio frames (192 audio samples) & video frames are stamped with hardware clock Hardware clock can be synchronized across cards (via SDK)
SDK	Flex I/O SDK for DirectShow provides the developer a quick way to integrate the extended features of the cards (Windows) Flex I/O SDK for DirectKS provides the developer the most flexibility and highest performance(Windows)
Windows Driver Tweaks	All options can be controled by three levels of registry key: global level, product level and device level Video,Audio, Crossbar filter names can be customized via registry keys
Firmware Upgrade	Multiple cards in one system can be upgraded simultaneously Cards can be upgraded without a system power shutdown when it is not in use Safe upgrade. If power off or system break down occur when the firmware is being upgraded, it will automatically restore to the initial version. This function is only available for firmware version 1.21 and above.
LED Indicator	Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.
Form Factor	Normal profile PCIe x4 Add-on Card 140mm x 91mm (without PCI bracket)
Power Consumption	12V max current: TBD 3.3V max current: TBD Max power consumption：TBD
Working Environment	Operating temperature: 0 to 40 deg C Storage temperature: –20 to 70 deg C Relative Humidity: 5% to 90% non-condensing
