Magewell Eco Capture QL-SDI 4K M.2

Dieser Artikel steht derzeit nicht zur Verfügung!
620,17 € *

zzgl.19% MwSt.zzgl. Versandkosten

Lieferzeit auf Anfrage

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303944
Magewell Eco Capture QL-SDI 4K M.2 Wichtiger Hinweis: Der Artikel ist abgekündigt.... mehr
Produktinformationen "Magewell Eco Capture QL-SDI 4K M.2"

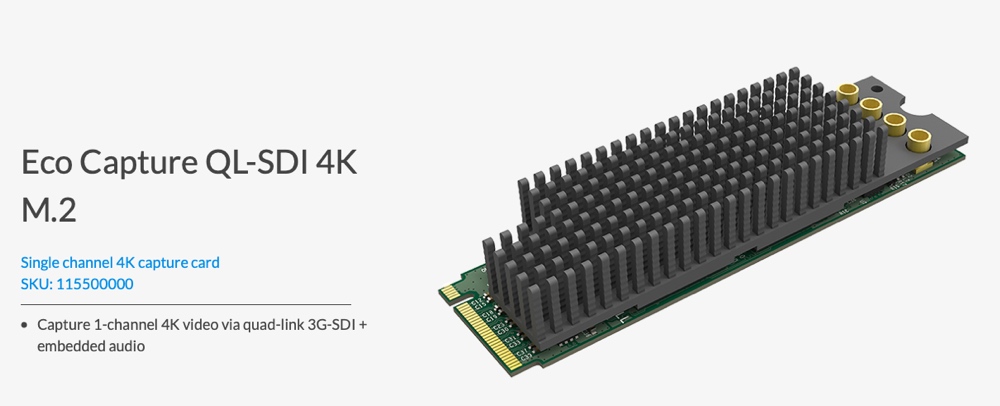

Magewell-Eco-Capture-QL-SDI-4K-M-2

Magewell Eco Capture QL-SDI 4K M.2


Wichtiger Hinweis: Der Artikel ist abgekündigt. Weitere Informationen finden Sie unter folgendem Link: Wichtige Produkthinweise von Magewell

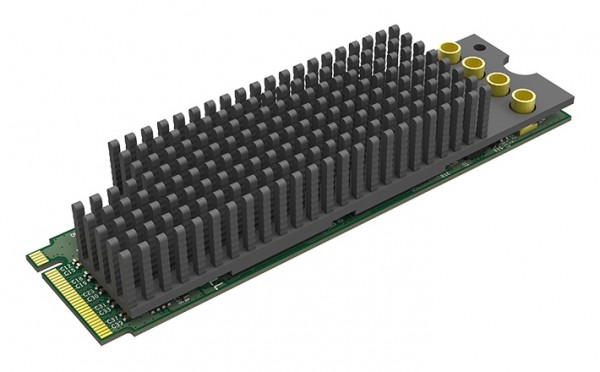

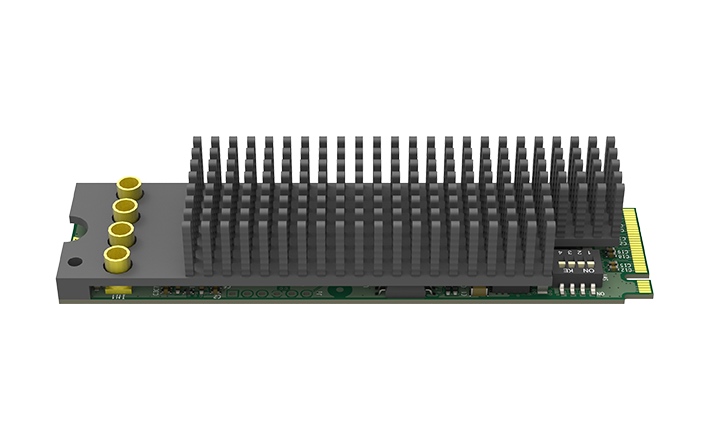

Die Magewell Eco Capture QL-SDI 4K M.2 wurde für den Einsatz in kleinen und eingebetteten Systemen entwickelt, in denen keine PCIe-Steckplätze in voller Größe verfügbar oder unpraktisch sind. Sie ergänzt die Flaggschiff Pro-Capture-Serie von Magewell und bietet OEMs und Systemintegratoren eine kompakte Erfassungslösung mit geringem Stromverbrauch bei begrenztem Platzbedarf. Die neue 4K M.2-Aufnahmekarte von Magewell kann 1-Kanal-Dual-Link-HD / 3G-SDI oder Quad-Link-3G-SDI aufnehmen und ist wie andere Eco-Aufnahmemodelle und SDI-Kameras für ein kleines Gehäuse ausgelegt, das 12G über Quad-Link-Konnektivität ausgibt.

Der Stromverbrauch der Magewell Eco Capture-Karten ist (je nach Modell) 30% bis 70% niedriger als bei den Pro Capture-Karten von Magewell mit ähnlicher Eingangssignal-Konnektivität. Die Produkte mit geringem Stromverbrauch machen es weniger schwierig, wenn Benutzer das Wärmeableitungssystem für das Chassis entwerfen.

Die Eco Capture QL-SDI 4K M.2 von Magewell unterstützt folgenden Modifikationen:


  • 1-Kanal SD / HD / 3G SDI
  • 1 Dual-Link-HD / 3G, unterstützt nur den 2SI-Modus
  • 1 Quad-Link 3G, unterstützt nur den 2SI-Modus
  • 1-Kanal-4K-Video über Quad-Link 3G-SDI + Embedded Audio

Interface


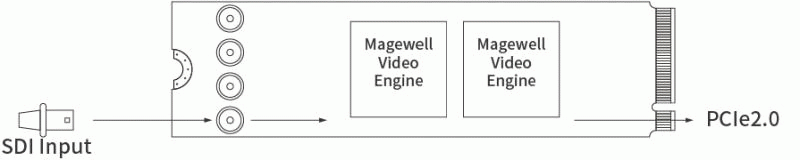

Magewell-Eco-Capture-QL_SDI-4K-M-2

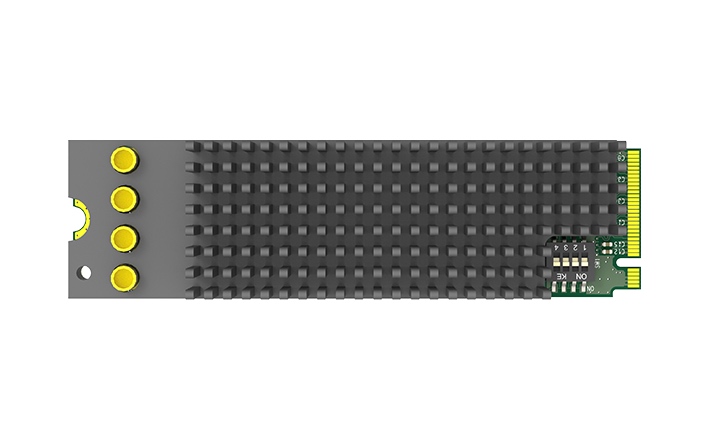

Spezifikationen und Features


Interface  VideoEngine  SignalIdentification  SoftwareEnvironment

Interface

Video Engine

Signal Detection & Support

Software environment

Input Interface
  • 1-channel SD/HD/3G SDI
  • 1 dual-link HD/3G, supporting 2SI mode only
  • 1 quad-link 3G, supporting 2SI mode only

Host Interface

  • M.2 2280 Type M (PCIe Gen2 x4)
  • 10-bit video processing
  • Deinterlace
  • Cropping
  • Color Adjustment
  • Hardware Timestamp
  • Color Space Conversion
  • Up/down Conversion
  • Aspect Ratio Conversion
  • SG-DMA Transmission mode

  • Auto Detection of Input Signal Format
  • Closed Caption


OS

  • Windows, Linux

Driver and Firmware

  • Universal Driver, Updatable Firmware

Included Software

  • Capture Express
  • Magewell Bridge for NDI®

Compatible Software

Others


Low Power Consumption

Mounting Hole

Dip Switch

Multiple Replicated Capture Streams

Continuously Work for 24hx7

LED Status Indicator

Low Latency Mode

Windows & Linux SDK

Multiple Devices on One Host

2-year Warranty

Zubehörteile (im Lieferumfang enthalten)


EcoCaptureQuadSDIM-2

4 x MMCX to SDI breakout Kabel

Part number: 90052

Video-Eingang: SDI
Geräteanschluss: M.2 2280 Type M (PCIe Gen2 x4)
Weiterführende Links zu "Magewell Eco Capture QL-SDI 4K M.2"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Eco Capture QL-SDI 4K M.2"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Specifications

Eco Capture QL-SDI 4K M.2 Specifications

Supported OS

  • Windows
    • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
  • Linux (support x86, x64 & ARM architecture)
    • Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64)
    • CentOS 6.5/7 (x86 & x64)
    • Fedora 25/26/27 (x86 & x64)
    • Red hat 6.5 and above (x86 & x64)
    • Other Linux OS with kernel version 2.6.35 and above

Recommended OS (tested)

  • Windows
    • Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux
    • Ubuntu 12.04/14.04/16.04 (x86 & x64)
    • Ubuntu 17.04/17.10/18.04 (x64)
    • CentOS 6.5/7.2 (x86 & x64)
    • Fedora 25/26 (x64)
    • Red hat 6.5 (x86 & x64)

Supported APIs

  • Windows
    • DirectShow
    • DirectKS
    • Wave API/DirectSound/WASAPI
  • Linux
    • V4L2
    • ALSA

Supported Software

  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2 encoding/streaming software

Input Interfaces

  • 1-channel SD/HD/3G SDI
  • 1 dual-link HD/3G, supporting 2SI mode only
  • 1 quad-link 3G, supporting 2SI mode only

Host Interfaces

  • M.2 2280 Type M (PCIe Gen2 x4)

Input features

  • 1 Single-link SD/HD/3G SDI mode:
    • Support for input video resolutions up to 2048x1080 pixels, only one stream can be captured
  • 1 Dual-link HD/3G SDI Mode:
    • Support for input video resolutions up to 4096x2160 pixels
  • 1 Quad-link 3G SDI Mode:
    • Support for input video resolutions up to 4096x2160 pixels

SDI Specific Features

  • Integrated cable equalizer extending the cable length as follows:Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS/3Ga-QL/3Gb-QL standards
    • up to 330m for SD-SDI signals
    • up to 190m for HD-SDI signals
    • up to 150m for 3G-SDI signals
  • Support for 2K (2048x1080) and 4K (4096x2160) mode
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for 10/12-bit color depth
  • Support for extraction of SMPTE 352 payload identifier
  • Support for up to 8 (mono) audio channels at 48KHz
  • Support for extraction of audio formation information & channel status data
  • Limited support of 3Gb-DS: only the first stream can be captured
  • Support for Closed Caption via the SDK

Video Capture Formats

  • Support for capture image resolutions up to 2048x1080 pixels in single link mode
  • Support for capture image resolutions up to 4096x2160 pixels in dual and quad link mode
  • Support for capture frame rates up to 144fps (Actual capture frame rate may be limited by PCIe bandwidth. )
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit capture formats: V410, Y410
  • More capture formats are supported via SDK

Video Processing Features

  • Video processing pipelines with ~720M pixels/s processing bandwidth
  • 10-bit 4:4:4 video processing
  • Video scaling
  • Video de-interlacing
    • Weave
    • Blend top & bottom field
  • Video color format conversionVideo frame rate conversion
    • Auto or manual selection of input color format & quantization range
    • Auto or manual selection of capture color format, quantization range & saturation range
    • Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    • Support for Limited or Full quantization range
    • Support for Limited, Full & ‘Extended gamut’ saturation range

Multiple Cards per System

  • Support for multiple cards plugged into one system
  • On-board 16 positions DIP switch to set card number
  • System hardware device tree will display “01: Eco Capture QL-SDI 4K M.2” when DIP switch is set to 1, and so on
  • The video and audio device names displayed in your software will include the card number (set by the DIP switch)

Multiple Replicated Capture Streams

  • Unlimited capture streams for any one input channel, but the capture streams should be in the same capture format.

Timestamp & A/V Synchronization

  • Hardware based 100ns high resolution clock
  • Audio frames (192 audio samples) & video frames are stamped with the hardware clock
  • Hardware clock can be synchronized across cards (via the SDK)

Video Capture SG-DMA

  • ~1600MB/s DMA bandwidth in PCIe 2.x system
  • ~800MB/s DMA bandwidth in PCIe 1.x system
  • Support for auto detection of Intel tiled GPU surface
  • Support for DirectGMA for AMD video adapter chipsets
  • Support for GPUDirect for Nvidia video adapter chipsets

SDK

  • Magewell Capture SDK for DirectShow (Windows) or V4L2 (Linux) for easy integration
  • Magewell Capture SDK for DirectKS (Windows) or ioctl (Linux) for maximum flexibility & performance

Windows Driver Tweaks

  • All options can be controlled by three levels of registry key: global level, product level and device level
  • Video, Audio and Crossbar filter names can be customized via registry keys

Firmware Upgrade

  • Multiple cards in one system can be upgraded simultaneously
  • Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)
  • Safe upgrade. If a power-off or system breakdown occurs when the firmware is being upgraded, it will automatically revert to the initial version.

LED Indicator

  • Status LEDs indicate the working state of each channel:
    • Pulsing slowly: idle
    • On: input signal locked
    • Off: input signal unlocked
    • Double blinks: memory failed or FPGA configuration failed

Form Factor

  • M.2 2280 standard size

Accessories

  • 4 X MMCX to BNC cables

Power Consumption

  • Max current at 3.3V: ~ 2.5 A
  • Max power consumption: ~ 8.1 W

Working Environment

  • Operating temperature: 0 to 40 deg C
  • Storage temperature: –20 to 70 deg C
  • Relative Humidity: 5% to 90% non-condensing
