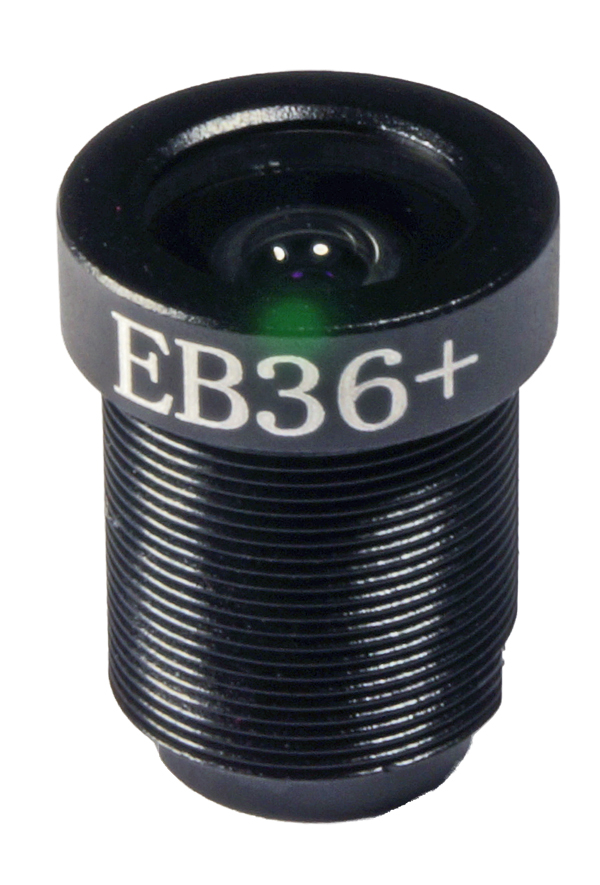

3,6mm Miniobjektiv 5MP BL-5MP03618MP125IR

This product is currently not available.
€24.37 *

Prices plus 19% VAT plus shipping costs

Delivery time on request

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 302403
max Sensor Diameter: 1/2.5" Sensing Area: CMOS AR0330 Focal Length: 3.6 mm± 3% Back Focal... more
Product information "3,6mm Miniobjektiv 5MP BL-5MP03618MP125IR"

max Sensor Diameter: 1/2.5"
Sensing Area: CMOS AR0330
Focal Length: 3.6 mm± 3%
Back Focal Length:7.55mm
Max Image Height: 7.0mm
F/NO: 1.8
TV Distortion: <2
Lens Construction: 3G2P
Field Angle: H x V x D
MT9P001: 86.4° x 65.4° x 110°
AR0330: 77.0° x 52.2° x 92.5°
Weight :
Feature: For 5.0 Megapixel Camera

Lens type: Fixed Focal Length
Sensor: 1/2,5, 1/3
Lens-Mount: S-Mount M12x0,5
Focal length: 3,6 mm
Resolution: 5 Megapixel
Aperture: 1,8, Fix
F-theta Distortion (-%): 2%
Filter: suitable for IR
Filter Thread: -
Coaxial: No
