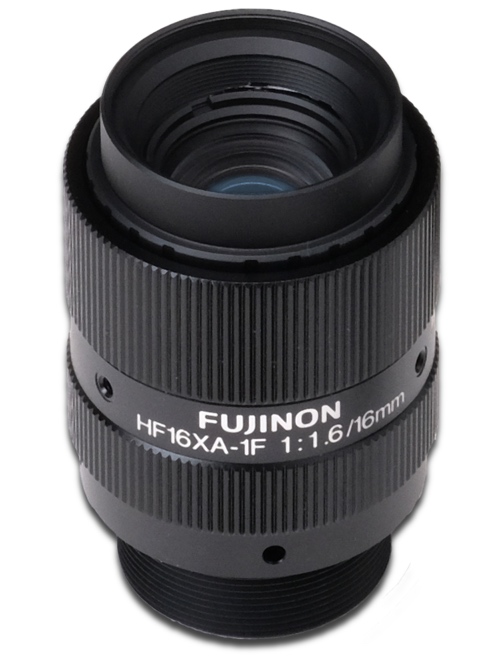

16mm C-Mount Industrial Lens Fujinon HF16XA-1F 5MP

Preise auf Anfrage.
  • 310019
The new HF-XA-1F Series New FUJINON HF-XA-1F with rugged mechanical design for... more
Product information "16mm C-Mount Industrial Lens Fujinon HF16XA-1F 5MP"

Fujinon-Machine-Vision-Lenses-Logo

The new HF-XA-1F Series

New FUJINON HF-XA-1F with rugged mechanical design for demanding machine vision applications

FUJIFILM introduces a new series of industrial lenses specially designed for demanding applications requiring a high resistance to shocks and vibrations. The new FUJINON HF-XA-1F series is suitable for industrial cameras with image sensor sizes from 2/3” to 1/1.2” and resolutions up to 5 Megapixel resulting in 3.45µm pixel sizes. This segment, which is the core of the industrial machine vision market, has been successfully addressed by the popular HF-XA-5M lenses so far. The HF-XA-1F series carries over the optical design and performance of the HF-XA-5M lenses into a completely new mechanical design optimized for shock and vibration resistance.

Fujinon_HF08XA-1F_Machine-Vision-lens_Bubble

Main Features of Fujinon HF16XA-1F


  • 16mm Focal length
  • C-Mount Lens
  • Resolution 5MP with 3,45µm
  • for 2/3" bis 1/1.2" Sensors
  • Aperture changeable in F open, F4 und F8.
  • Ruggedized till 10G
technical Features Fujinon HF16XA-1F

Product Name

Fujinon HF16XA-1F

Focal length

16 mm

changeable Aperture

open, F1.6, F4, F8

Angle of View at 2/3"

31.4° x 23.7°

Distortion (TV-Distortion)

-0.60%

Working distance (M.O.D.)

∞ - 100mm

Lens connector

C-Mount

Filter thread

M25.5 x 0.5

Weight in g

94

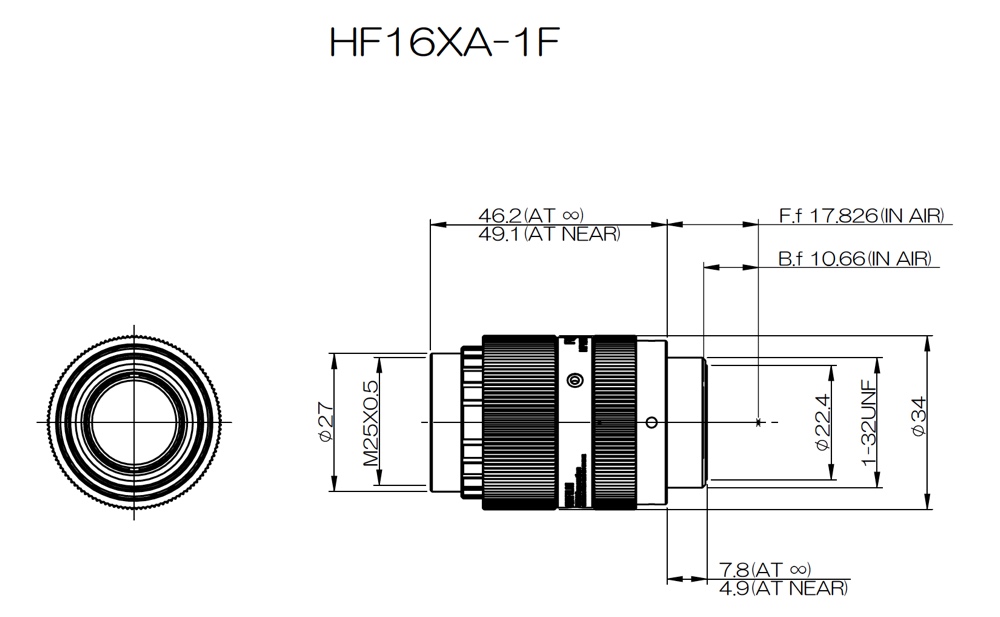

Dimensions in mm

Ø34 x 54.0

Lens type: Fixed Focal Length
pixel size: 3,45 µm
M.O.D.: 100mm
Sensor: 1/1.2, 2/3
Lens-Mount: C-Mount
Focal length: 16 mm
Resolution: 5 Megapixel
Aperture: F1.6, F4, F8, offen, wechselbar
F-theta Distortion (-%): -0,60%
Filter Thread: M 25.5
