16 mm C-Mount Lens Fujinon CF16ZA-1S - 1.8/ 16mm

Preise auf Anfrage.
All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 303813
The Fujinon CF16ZA-1S Machine Vision C-mount lens supports a large 1.1-inch high-resolution... more
Product information "16 mm C-Mount Lens Fujinon CF16ZA-1S - 1.8/ 16mm"

The Fujinon CF16ZA-1S Machine Vision C-mount lens supports a large 1.1-inch high-resolution sensor with a pixel pitch of 2.5 μm (equivalent to 23 megapixels). The relative illumination reaches up to more than 90% * and allows a clear picture from the center of the image to the edge area. The compact design and the new shock-resistant design make the Obejtkiv resistant to shock and vibration, making it suitable for a wide variety of manufacturing environments.

  • Fujinon
  • 23MPixel Anti Shock & Vibration
  • for 1.1" camera
  • for pixel size 2.5μm
  • Focal length 16mm
  • Aperture 1.8-16
  • manually controlled, small construction lens
  • for C-mount
  • Secure fixing screws for aperture and focus



For an overview of the entire series, see the following link:  Fujinon CF-ZA-1S series for Machine Vision Applications



► Ultrahigh-resolution models compatible with large sensors with high pixel count of 1.1-inch・2.5µm pixel pitch (equivalent to 23 megapixels)

These lenses are for use with ultrahigh resolution machine vision cameras and are compatible with large sensors with high pixel count of 1.1-inch・2.5µm pixel pitch (equivalent to 23 megapixels). Fujifilm's unique 4D High Resolution technology mitigates resolution degradation that results from changes in shooting distance and aperture setting.

► Efficient high-precision inspection capability at relative illumination ratio of 90% and higher

At the F4 aperture setting, which is frequently selected by users, the lenses achieve bright imagery from the center of the image to the periphery. This eliminates the need for light intensity compensation, which may cause noise into the image, facilitating efficient high-precision product inspections.

► Compact, anti-shock and vibration design makes the lenses suitable for a diverse range of manufacturing environments

The lenses have the world's smallest external diameter of just 39mm. This contributes to the overall compactness of the machine vision system.

► Excellent convenience and reliability

The lens uses a unique mechanism that does not change the overall length of the lens even during focusing. Lenses can be accessed easily to achieve the desired shooting distance.



Article Name CF16ZA-1S
Focal length 16 mm
Sensor size  für 1.1" ~ 2/3"
Pixelpitch 2,5µm
Aperture F1.8 - F16
Distortion -0,8%
Iris control manual
Focus control  manual
Angle of View at 1,1" 47,3° x 36,1°
Minimum Object distance (M.O.D.) in mm 0,1
Focus range (from front lens) in m 0,1  ~ infinity
Mount C-Mount
Weight in g 0,180 g
Filter thread M37,5 x 0,5 mm
Dimensions  Ø39 x 67,6 mm
Description   Anti Shock & Vibration Technology

With locking knobs for iris and focus,
3 positions each, optionally headless screws available
Reference  best suited for Sony IMX253 / 255
no vignetting!
CRA = 4.5°
Lens type: Fixed Focal Length
M.O.D.: 0,10 m
Sensor: 1.1
Lens-Mount: C-Mount
Focal length: 16 mm
Resolution: 23 Megapixel
Aperture: 1,8, Manual Aparture
Filter Thread: M37,5 x 0.5
Coaxial: No
Related links to "16 mm C-Mount Lens Fujinon CF16ZA-1S - 1.8/ 16mm"
Available downloads:
Read, write and discuss reviews... more
Customer evaluation for "16 mm C-Mount Lens Fujinon CF16ZA-1S - 1.8/ 16mm"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

CF16ZA-1S Datasheet​

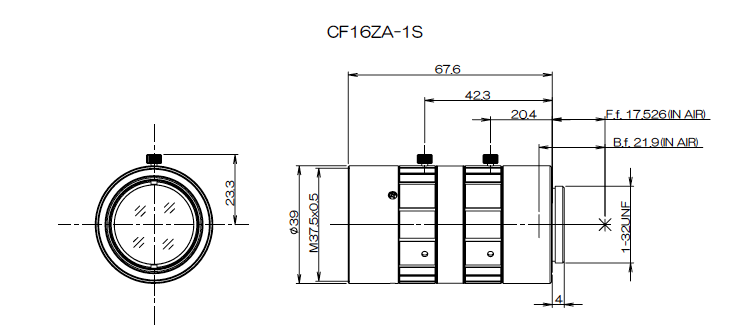

CF16ZA-1S Drawing​
