12 mm C-Mount Lens Ricoh FL-CC1218-5MX - 1.8/ 12mm

€329.00 *

Prices plus 19% VAT plus shipping costs

Estimated delivery time 3 - 5 Days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
  • 303838
The  FL-CC1218-5MX C-mount Lens from Ricoh is a 5 megapixel lenses are developed to... more
Product information "12 mm C-Mount Lens Ricoh FL-CC1218-5MX - 1.8/ 12mm"

The FL-CC1218-5MX C-mount Lens from Ricoh is a 5 megapixel lenses are developed to be used with 2/3" format cameras and are not only optimised for high image quality, but also for use in harsh environments and durable industrial systems. Ricoh´s 5MX series lenses have a high resolution of over 147 lp/mm.

Extremely low distortion

The optical distortion of this series is < 0.1%. The resulting extremely low distortion images are excellent for use in the image measurement field.

Compact design

These lenses have a 33 mm compact design, ideal for installation with high performance equipment.

Bright and clear to the periphery

Despite the small diameter of 33 mm, the vignetting has been reduced to the minimum. Combined with the 5 megapixel resolution, bright, high contrast images are achieved all the way to the edges.

High resolution and high contrast

Supports 2/3" format, 3.45μm pixel pitch cameras, producing sharp 147 lp/mm high resolution, high contrast images from the center to the periphery.

  • 12 mm C-Mount Lens Ricoh FL-CC1218-5MX - 1.8/ 12mm
  • Ricoh 5 MPixel
  • for 2/3" Cameras
  • Focal length 12,0mm
  • Aperture 1,8-16
  • manually controlled, high-resolution lens
  • with Locking Screws
  • for C-Mount cameras
  • each 3 Fixing screws for aperture and focus
  • plus 2 Locking screws in the outer packaging



For an overview of the entire series, see the following link to our Blog: Ricoh´s 5MX Series



Ricoh Article Name  FL-CC1218-5MX
Format 2/3"
Focal length 12 mm
Aperture F1.8 - F16
M.O.D (Minumum Object Distance) 0,1 m
Horizontal Angle of View 1/3" 22,7°
Horizontal Angle of View 1/2" 30,0°
Horizontal Angle of View 1/1.8" 33,6°
Horizontal Angle of View 2/3" 40,5°
Filter thread M30,5 x 0,5

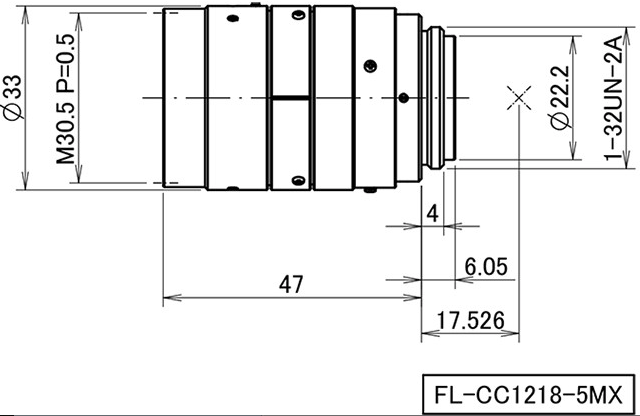

Dimensions Ø33 x 47
Weight 0,85 g
Temperature range -20°C - +50°C
Lens mount C-Mount
Lens type: Fixed Focal Length
M.O.D.: 0,10 m
Sensor: 2/3
Lens-Mount: C-Mount
Focal length: 12 mm
Resolution: 5 Megapixel
Aperture: 1,8, Manual Aparture
Filter Thread: M30,5 x 0.5
