Magewell Pro convert HDMI 4K Plus

Dieser Artikel steht derzeit nicht zur Verfügung!
982,00 € *

zzgl.19% MwSt.zzgl. Versandkosten

nicht mehr verfügbar

Alle Preise sind Listenpreise zzgl. 19% MwSt. Um Preise für Firmen oder Händler zu sehen, können Sie sich hier anmelden bzw. hier registrieren.
  • 303828
PRO CONVERT HDMI 4K PLUS One-channel 4K Signal Converter Part number: 64012 EU... mehr
Produktinformationen "Magewell Pro convert HDMI 4K Plus"

PRO CONVERT HDMI 4K PLUS

One-channel 4K Signal Converter

Part number: 64012 EU

  • Convert one channel of HDMI signal with embedded audio to NDI® stream
  • Loop-through one channel of HDMI signal with embedded audio

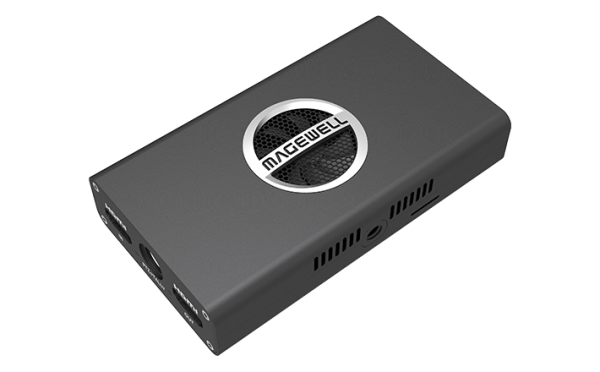

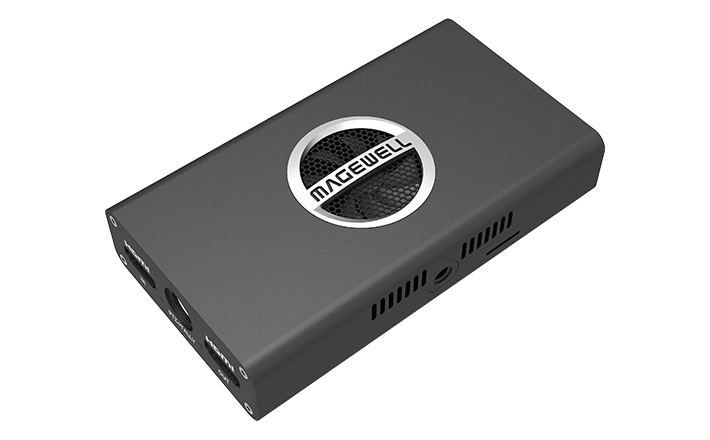

ProConvertHDMI4KPlus_1

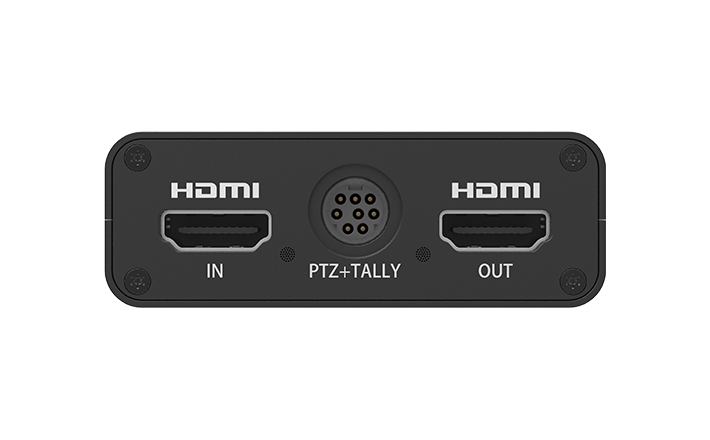

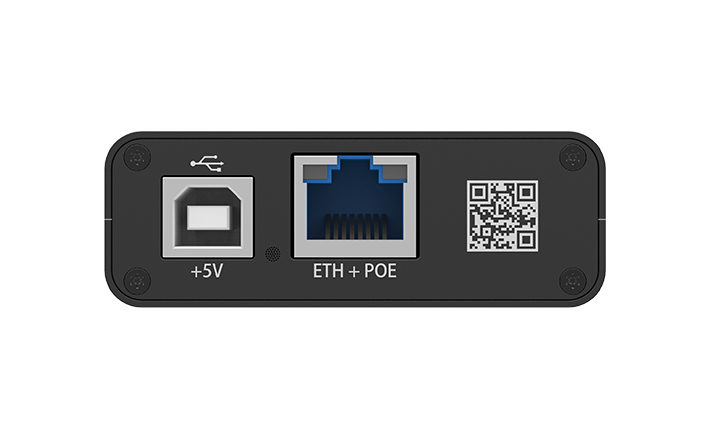

INTERFACE

Interface_ProConvertHDMI4KPlus



SPECIFICATIONS AND FEATURES

Input interface

  • HDMI x1
  • Support up to 4096×2160p60

Loop-through Interface

  • HDMI x1
  • Support up to 4096×2160p60

USB Interface

  • USB 2.0 for power and data transfer

Network Interface

  • 10/100/1000 Mbps Ethernet
  • Support IEEE 802.3af PoE

Power Interface

  • DC+5V

PTZ Interface

  • Mini-DIN-8

NDI Encoding

Up to 4Kp60 4:2:2

Firmware

Upgradable firmware

Others

LED Indicators

Tally Lights

2-year Warranty

SD Card Slot

1/4-20 Mounting Hole

Video-Eingang: HDMI
Geräteanschluss: NewTek NDI
Weiterführende Links zu "Magewell Pro convert HDMI 4K Plus"
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Magewell Pro convert HDMI 4K Plus"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.

Die mit einem * markierten Felder sind Pflichtfelder.

Pro Convert HDMI 4K Plus Specifications

Supported Web Browser (tested)

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

Supported Software (tested)

  • OBS
  • XSplit
  • vMix
  • VidBlasterX
  • Wirecast
  • streamstar SW
  • mimoLive
  • Any other NewTek NDI-enabled encoding or streaming software

Input Interfaces

HDMI

  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

Loop-through Interface

HDMI

  • DVI-D 1.0
  • HDMI 1.4
  • HDMI 2.0

Storage Interface

SD Card (functions to be developed)

PTZ + TALLY Control

Mini-DIN–8 jack

Screw Mounting Hole

¼–20 mounting hole

Network Interfaces

10/100/1000Mbps Ethernet
IEEE 802.3af PoE

USB Interface

USB2.0 Type B
5V/2.1A power supply
USB RNDIS/ECM

Input feature

Support for input video resolutions up to 4:4:4 8-bit 4096x2160 60fps

HDMI Specific Features

600MHz HDMI receiver
Adaptive HDMI equalizer
Support for customized EDID
Support for extraction of AVI/Audio InfoFrames
Full colorimetry support
Support for up to 4096x2160 4:4:4 60fps input signals
Support for 8 channel IEC60958 audio streams
Support for extraction of audio formation information & channel status data
Support for extraction of video timing information
Support for extraction of 3D format information
Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode.

NDI® Output Format

Support for 4:2:2 8-bit output
Support for up to 4096x2160 60fps or 1920x1080 240fps
Support for NDI 3.x

Video Processing Features

Video processing pipelines with 4096x2160 60fps
Video brightness, contrast, saturation, hue adjustment
Video de-interlacing
Top field only
Bottom field only
Video aspect ratio conversion
Auto or manual selection of output aspect ratio
Video color format conversion
Auto or manual selection of input color format & quantization range
Auto or manual selection of output color format, quantization range & saturation range
Support for RGB, YUV BT.601, YUV BT.709, YUV BT.2020 input color formats
Support for YUV BT.601, YUV BT.709, YUV BT.2020 output color formats
Support for Limited or Full quantization range
Support for Limited, Full & ‘Extended gamut’ saturation range
Video frame rate conversion
Video mirror flip

NDI® Source Name

Support for setting the device name shown in the system using Web UI. By default, the device name is ‘Pro Convert’.
Support for setting the source name shown in the system using Web UI. By default, the source name is ‘board-index + serial number’.
Support for setting board-index, from 0 to F, through on-board rotary switch

Firmware Upgrade

Support for manual update using Web UI

LED Indicator

Status LEDs indicate:
the state of power supply: on/off
Tally: preview/program
the state of input signal: locked/unlocked
the state of loopthrough signal: loopthrough connected and signal detected/undetected

Form Factor

117.5mm (L) x 66.7mm (W) x 23.4mm (H)

Accessories

USB2.0 A to B Cable
5V/2.1A power adaptor
Mini-DIN–8 (PTZ + TALLY) to RS232 (PTZ) + Mini-DIN–8 (TALLY)

Power Consumption

5V max current: ~2A
Max power consumption: ~10W

Working Environment

Operating temperature: 0 to 45 deg C
Storage temperature: –20 to 70 deg C
Relative Humidity: 5% to 90% non-condensing
