USB 3.1 monochrome industrial camera DMK 37AUX287 The Imaging Source

Preise auf Anfrage.
  • 309960
USB 3.1 monochrome Industrial Camera DMK 37AUX287 The Imaging Source   The... more
Product information "USB 3.1 monochrome industrial camera DMK 37AUX287 The Imaging Source"

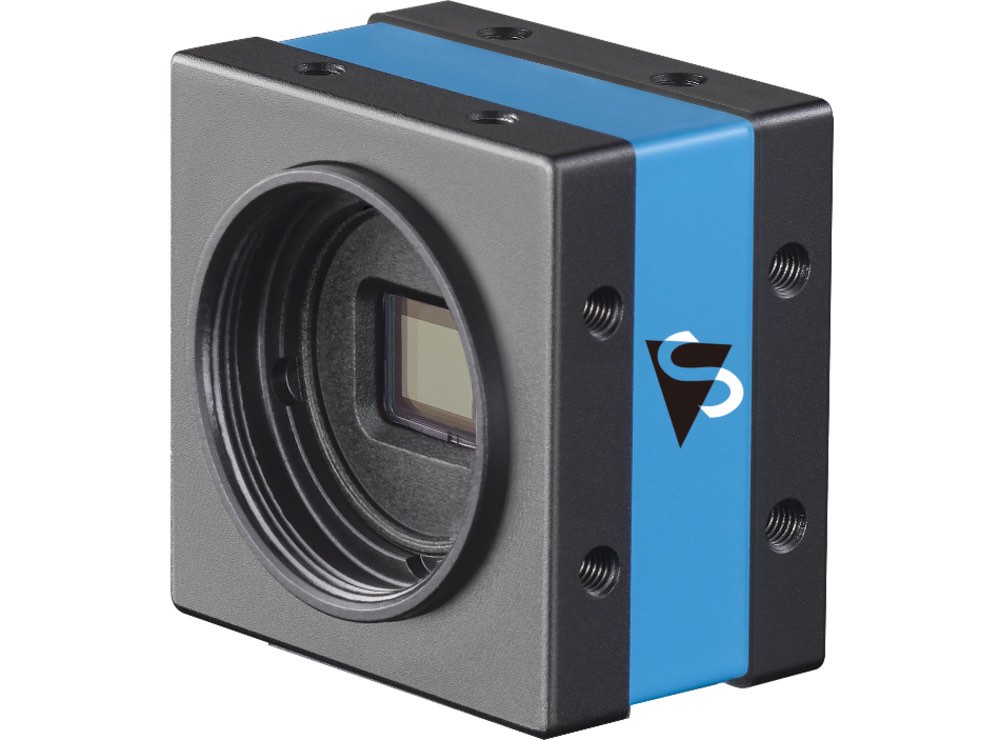

USB 3.1 monochrome Industrial Camera DMK 37AUX287 The Imaging Source

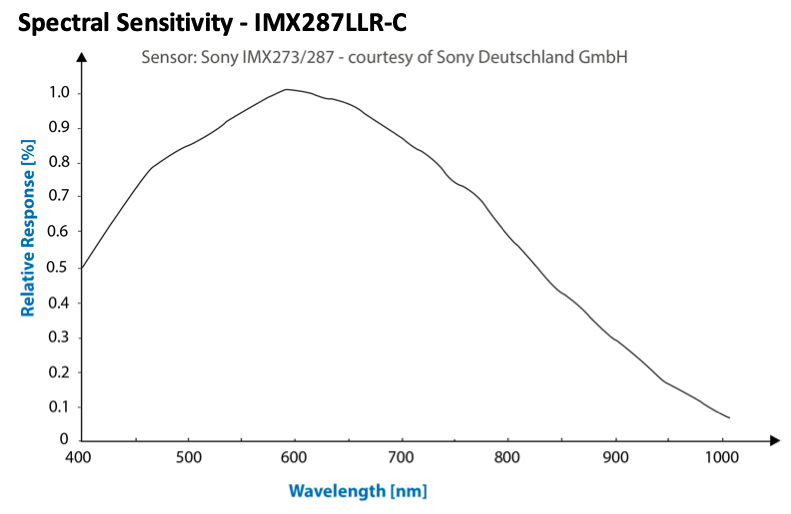

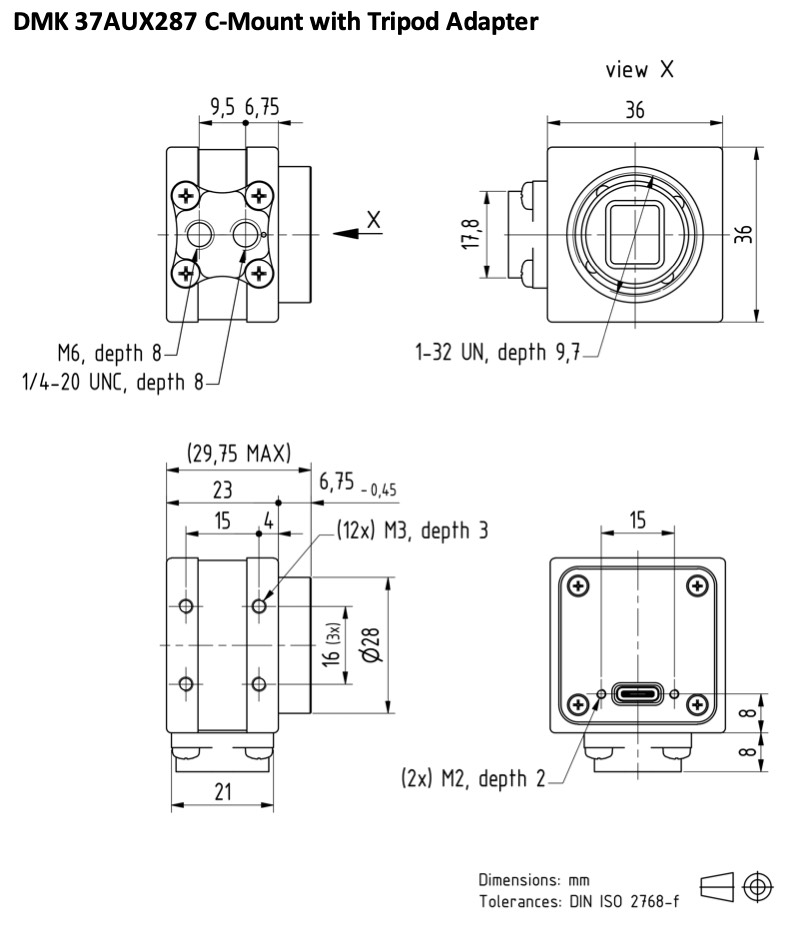

The Imaging Source DMK 37AUX287 monochrome industrial camera has a USB 3.1 connection and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with a highly sensitive, low-noise Sony Pregius Global Shutter Sensor which has exceptional image quality and good NIR sensitivity. Thus, the machine vision camera is particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens Adapter, the camera is also compatible with M12 board lenses.

To get an overview about the series: click here

Features:

  • USB 3.1 Interface
  • 1/2.9 inch Sony CMOS Pregius Sensor (IMX287LLR)
  • 720×540 (0,4 MP)
  • up to 539 fps
  • Global shutter
  • just 36 x 36 x 25 mm
  • Manufactured by The Imaging Source
  • Windows and Linux software inclused



GENERAL BEHAVIOR
Vision-Standard USB3 Vision ist der Schnittstellenstandard für die Implementierung der USB 3.0-Schnittstelle in der industriellen Bildverarbeitung.
Dynamic range 10 bit
Resolution 720 x 540 (0,4 MP)
Frame rate 539 fps
Video Output Format 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome
INTERFACE (OPTICAL)
IR-Cut-Filter  x
Sensor-Type CMOS Pregius
Sensor-Specifications Sony  IMX287LLR
Shutter Global
Format 1/2,9 inch
Pixel size H: 6,9 µm, V: 6,9 µm
Lens Mount C/CS
INTERFACE (ELECTRICAL)
Interface USB 3.1
Supply-Voltage 4,75 VDC to 5,25 VDC
Current consumption approx 380 mA @ 5 VDC
Auto Iris control  x
Trigger  x
I/Os  x
INTERFACE (MECHANICAL)

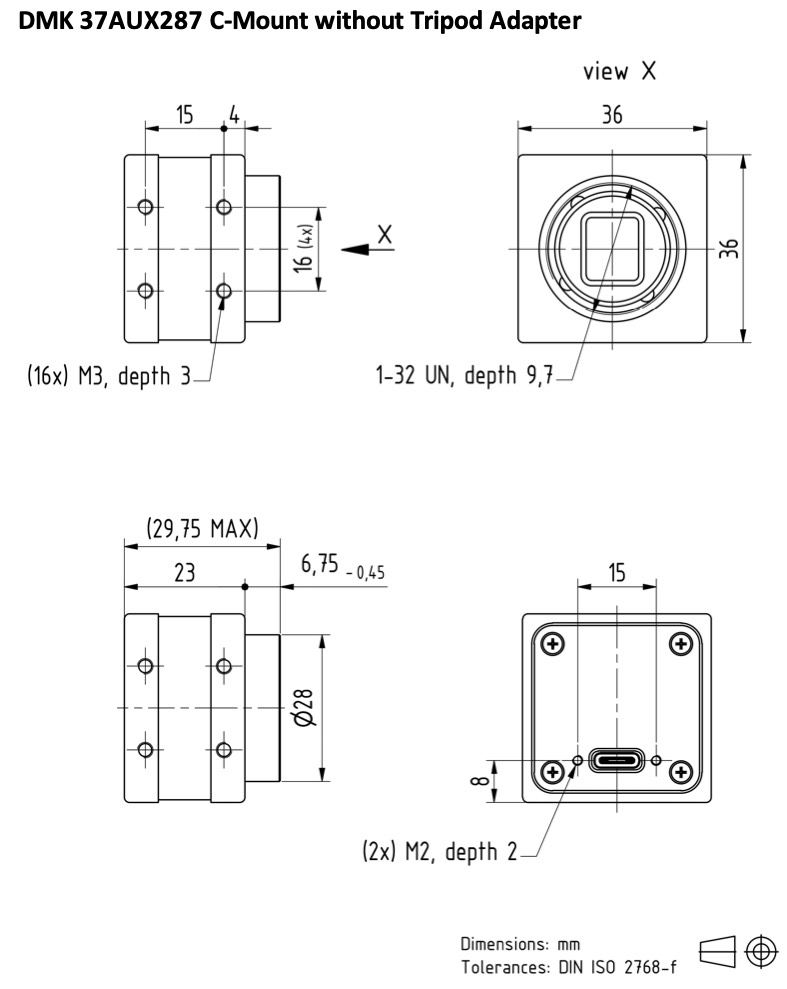

Dimensions H: 36 mm, B: 36 mm, L: 25 mm
Weight 70 g
ADJUSTMENTS
Shutter 1 µs to 30 s
ENVIRONMENTAL
Temperature (operating) -5 °C zu 45 °C
Temperature (storage) -20 °C zu 60 °C
Humidity (operating) 20 % zu 80 % (non-condensing)
Humidity (storage) 20 % zu 95 % (non-condensing)





Lens-Mount: C-Mount, CS-Mount
Sensor-Hersteller: Sony
Resolution: 0,4 Megapixel
Betriebstemperatur: -5 °C zu 45 °C
Abmessungen: 36x36x25
Strombedarf: ca. 380mA @5VDC
Trigger connection: -
I/O: -
Resolution (h x v): 720 × 540
Framerate: 539 fps
Input Interface: USB 3.1
Camera Type: monochrome
pixel size: 6,9 µm
Sensor: 1/2,9
Sensortyp: CMOS
Shutter: Global-Shutter
