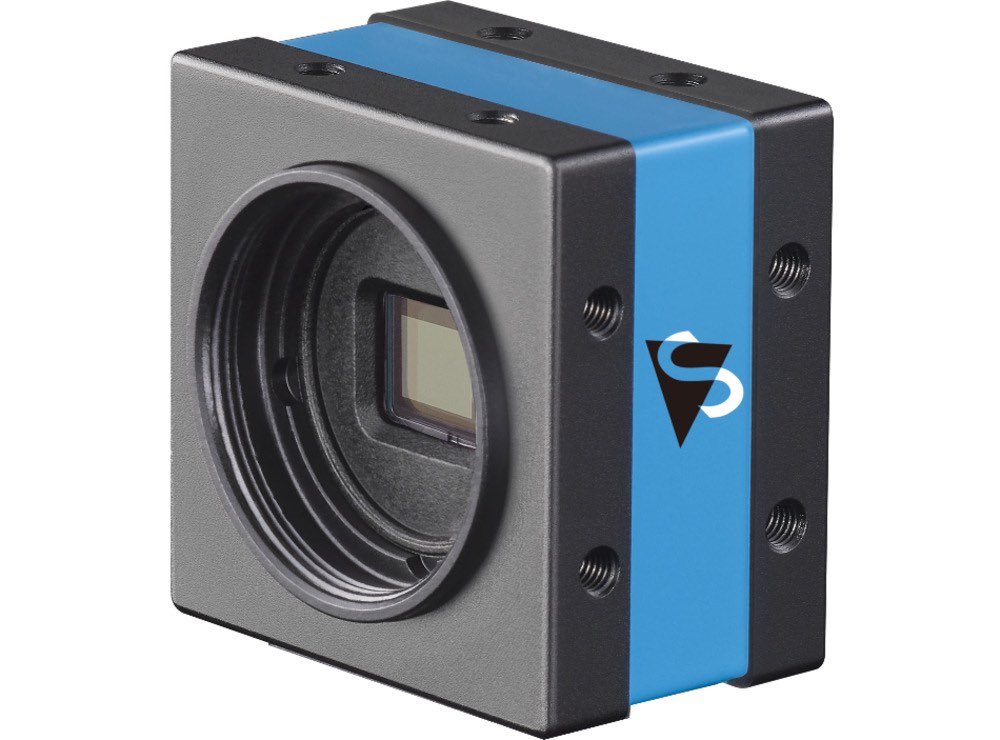

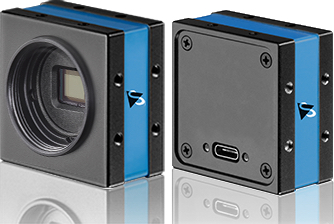

USB 3.1 monochrome Industrial Camera DMK 37AUX273 The Imaging Source
- Order number: 309961
USB 3.1 monochrome Industrial Camera DMK 37AUX273 The Imaging Source

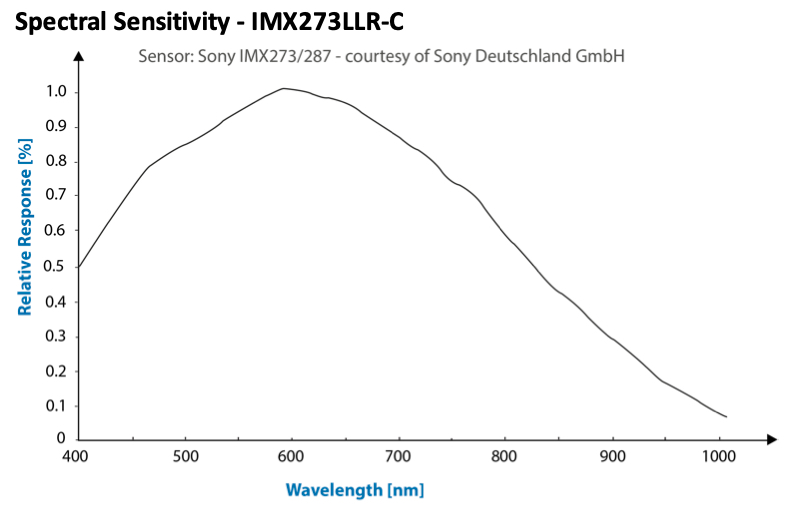

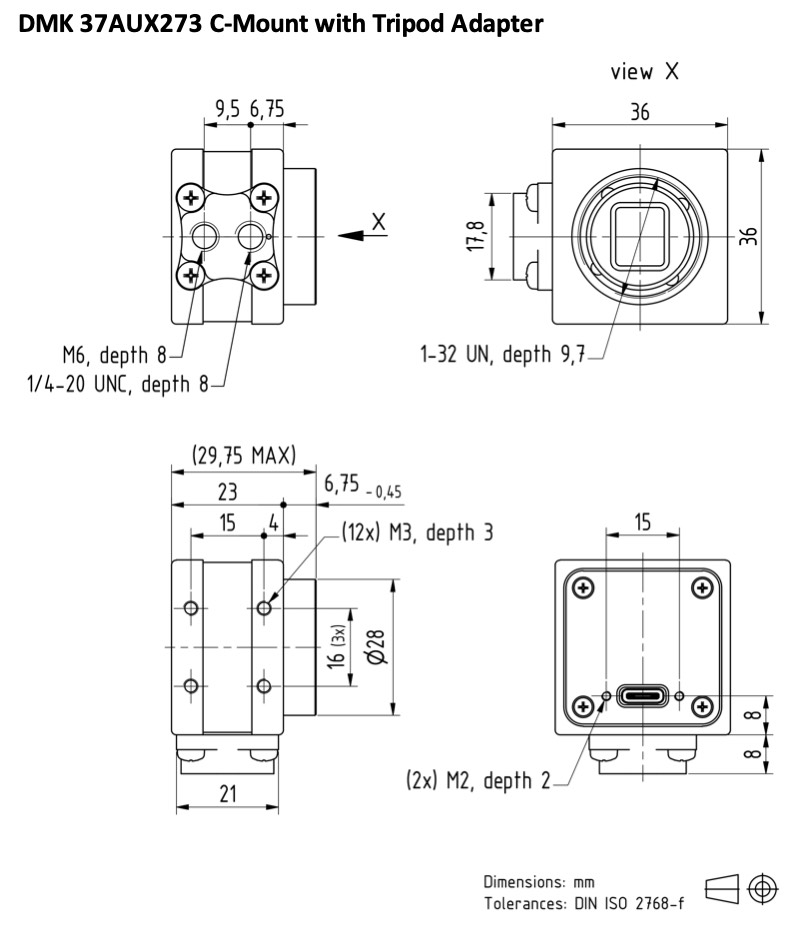

The Imaging Source DMK 37AUX273 monochrome industrial camera has a USB 3.1 connection and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with a highly sensitive, low-noise Sony Pregius Global Shutter Sensor which has exceptional image quality and good NIR sensitivity. Thus, the machine vision camera is particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens Adapter, the camera is also compatible with M12 board lenses.
To get an overview about the series: click here
Features:
- USB 3.1 Interface
- 1/2.9 inch Sony CMOS Pregius Sensor (IMX273LLR)
- 1.440×1.080 (1,6 MP)
- up to 238 fps
- Global shutter
- just 36 x 36 x 25 mm
- Manufactured by The Imaging Source
- Windows and Linux software inclused
| GENERAL BEHAVIOR | |
| Vision-Standard |  |
| Dynamic range | 10 bit |
| Resolution | 1.440 x 1.080 (1,6 MP) |
| Frame rate | 238 fps |
| Video Output Format | 8-Bit Monochrome, 12-Bit Packed Monochrome, 16-Bit Monochrome |
| INTERFACE (OPTICAL) | |
| IR-Cut-Filter | x |
| Sensor-Type | CMOS Pregius |
| Sensor-Specifications | Sony IMX273LLR |
| Shutter | Global |
| Format | 1/2,9 inch |
| Pixel size | H: 3,45 µm, V: 3,45 µm |
| Lens Mount | C/CS |
| INTERFACE (ELECTRICAL) | |
| Interface | USB 3.1 |
| Supply-Voltage | 4,75 VDC to 5,25 VDC |
| Current consumption | approx 380 mA @ 5 VDC |
| Auto Iris control | x |
| Trigger | x |
| I/Os | x |
| INTERFACE (MECHANICAL) | |

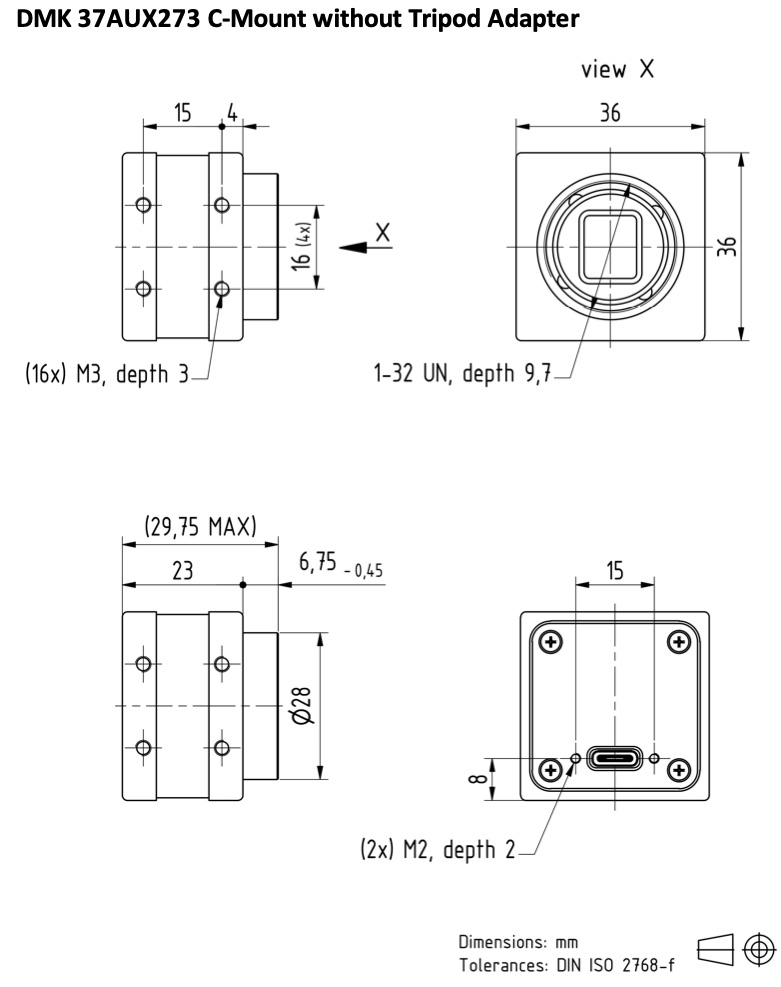

| Dimensions | H: 36 mm, B: 36 mm, L: 25 mm |
| Weight | 70 g |
| ADJUSTMENTS | |
| Shutter | 1 µs to 30 s |
| ENVIRONMENTAL | |
| Temperature (operating) | -5 °C zu 45 °C |
| Temperature (storage) | -20 °C zu 60 °C |
| Humidity (operating) | 20 % zu 80 % (non-condensing) |
| Humidity (storage) | 20 % zu 95 % (non-condensing) |
| Lens-Mount: | C-Mount, CS-Mount |
| Sensor-Hersteller: | Sony |
| Betriebstemperatur: | -5 °C zu 45 °C |
| Resolution: | 1,6 Megapixel |
| Abmessungen: | 36x36x25 |
| Strombedarf: | ca. 380mA @5VDC |
| Trigger connection: | - |
| I/O: | - |
| Resolution (h x v): | 1440 x 1080 |
| Framerate: | 238 fps |
| Input Interface: | USB 3.1 |
| Camera Type: | monochrome |
| pixel size: | 3,45 µm |
| Sensor: | 1/2,9 |
| Sensortyp: | CMOS |
| Shutter: | Global-Shutter |
