USB 3.1 monochrome Industrial Camera DMK 37AUX226 The Imaging Source

Preise auf Anfrage.
  • 309968
USB 3.1 monochrome Industrial Camera DMK 37AUX226 The Imaging Source   The... more
Product information "USB 3.1 monochrome Industrial Camera DMK 37AUX226 The Imaging Source"

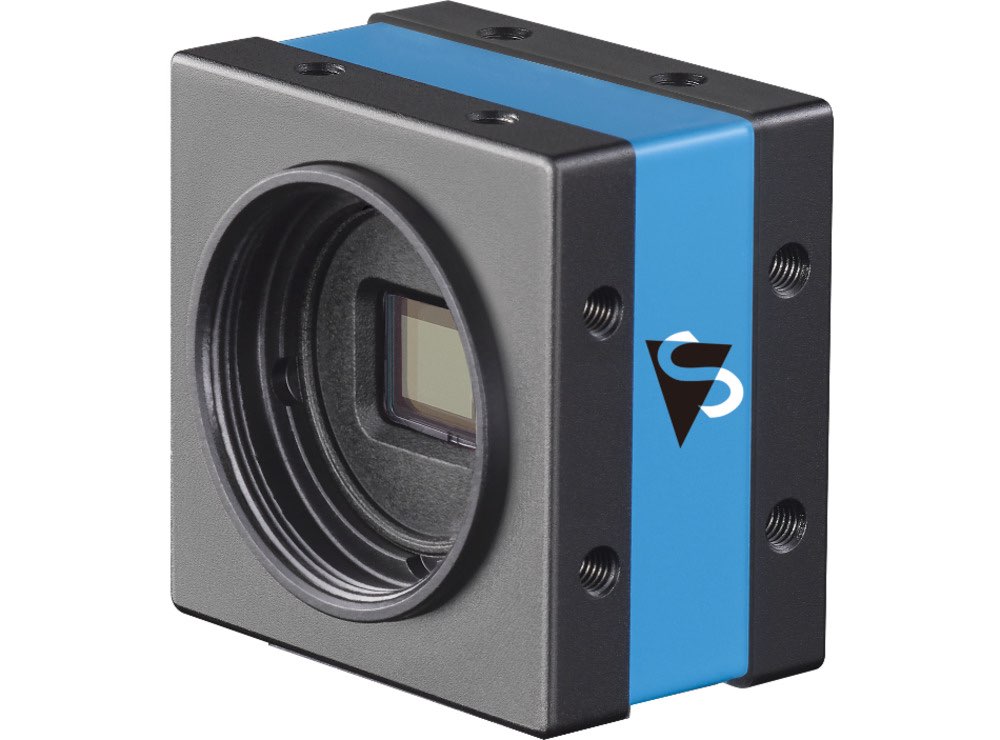

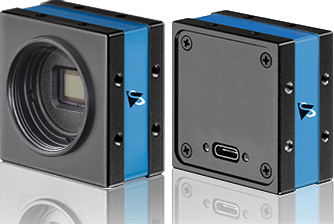

USB 3.1 monochrome Industrial Camera DMK 37AUX226 The Imaging Source

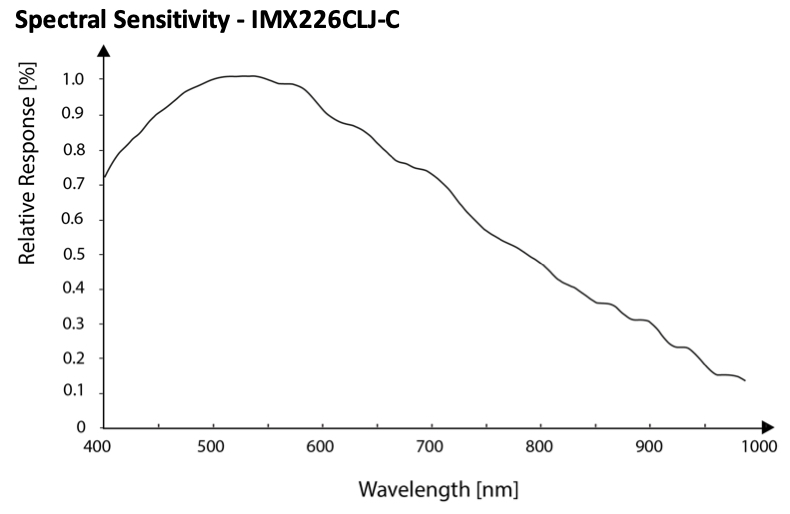

The Imaging Source DMK 37AUX226 monochrome industrial camera has a USB 3.1 connection and supports the USB3 Vision standard (USB 3.1 Gen.1), which ensures stability and compatibility for easy integration and flexible configuration. Equipped with a highly sensitive, low-noise Sony Starvis Rolling Shutter Sensor which has exceptional image quality and good NIR sensitivity. Thus, the machine vision camera is particularly suitable for applications in the field of intelligent traffic systems (ITS), automatic optical inspection (AOI) and microscopy. The scope of delivery of the camera includes a tripod adapter and C- to CS-mount adapter, which enables compatibility with C-mount and CS-mount lenses. With the optional CS to M12 mini lens Adapter, the camera is also compatible with M12 board lenses.

To get an overview about the series: click here

Features:

  • USB 3.1 Interface
  • 1/1.7 inch Sony CMOS Starvis (IMX226CLJ)
  • 4.000×3.000 (12 MP)
  • up to 30 fps
  • Rolling shutter
  • just 36 x 36 x 25 mm
  • Manufactured by The Imaging Source
  • Windows and Linux software inclused



GENERAL BEHAVIOR
Vision-Standard USB3 Vision ist der Schnittstellenstandard für die Implementierung der USB 3.0-Schnittstelle in der industriellen Bildverarbeitung.
Dynamic range 12 bit
Resolution 4.000 x 3.000 (12 MP)
Frame rate 30 fps
Video Output Format 8-Bit Monochrome, 12-Bit Packed Monochrome 16-Bit Monochrome
INTERFACE (OPTICAL)
IR-Cut-Filter  x
Sensor-Type CMOS STARVIS
Sensor-Specifications Sony IMX226CLJ
Shutter Rolling
Format 1/1.7 inch
Pixel size H: 1,85 µm, V: 1,85 µm
Lens Mount C/CS
INTERFACE (ELECTRICAL)
Interface USB 3.1
Supply-Voltage 4,75 VDC to 5,25 VDC
Current consumption approx 320 mA @ 5 VDC
Auto Iris control  x
Trigger  x
I/Os  x
INTERFACE (MECHANICAL)

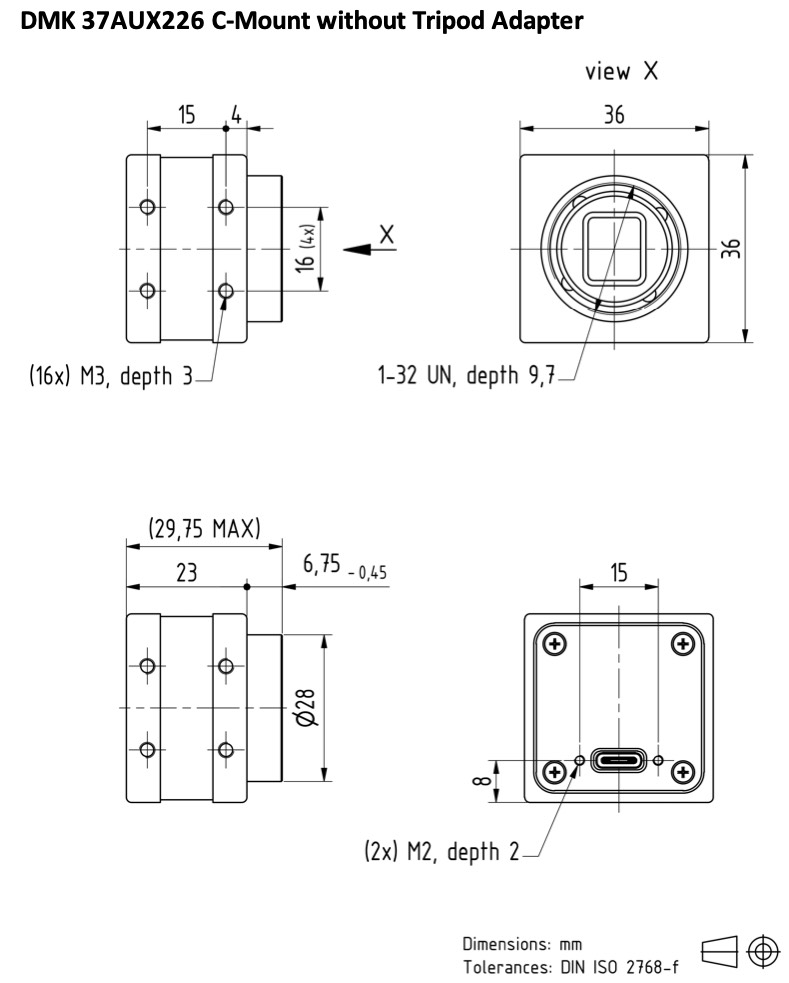

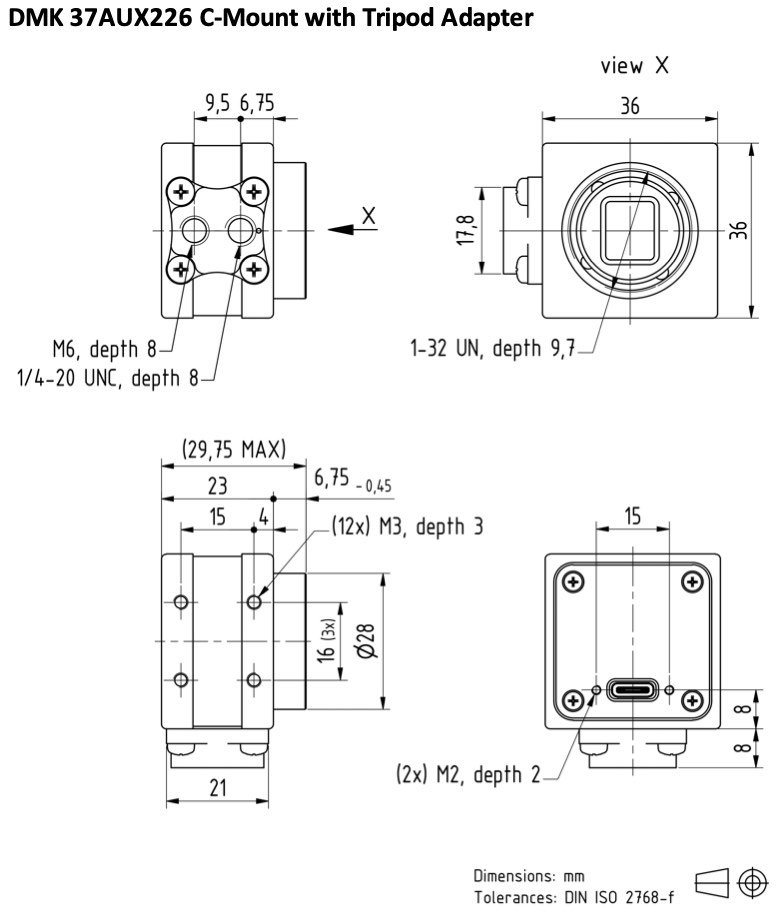

Dimensions H: 36 mm, B: 36 mm, L: 25 mm
Weight 70 g
ADJUSTMENTS
Shutter 50 µs to 30 s
ENVIRONMENTAL
Temperature (operating) -5 °C zu 45 °C
Temperature (storage) -20 °C zu 60 °C
Humidity (operating) 20 % zu 80 % (non-condensing)
Humidity (storage) 20 % zu 95 % (non-condensing)





Lens-Mount: C-Mount, CS-Mount
Resolution: 12 Megapixel
Sensor-Hersteller: Sony
Betriebstemperatur: -5 °C zu 45 °C
Abmessungen: 36x36x25
Trigger connection: -
I/O: -
Strombedarf: ca. 320 mA @ 5 VDC
Resolution (h x v): 4000 x 3000
Framerate: 30 fps
Input Interface: USB 3.1
Camera Type: monochrome
pixel size: 1.85 µm
Sensor: 1/1.7
Sensortyp: CMOS
Shutter: Rolling-Shutter
