Lieferung nur an Gewerbetreibende Gemäß §14 BGB, kein Verkauf an private Endverbraucher

35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC

VD-Optics
Preview: 35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC Preview: 35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC Dimensions
35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC

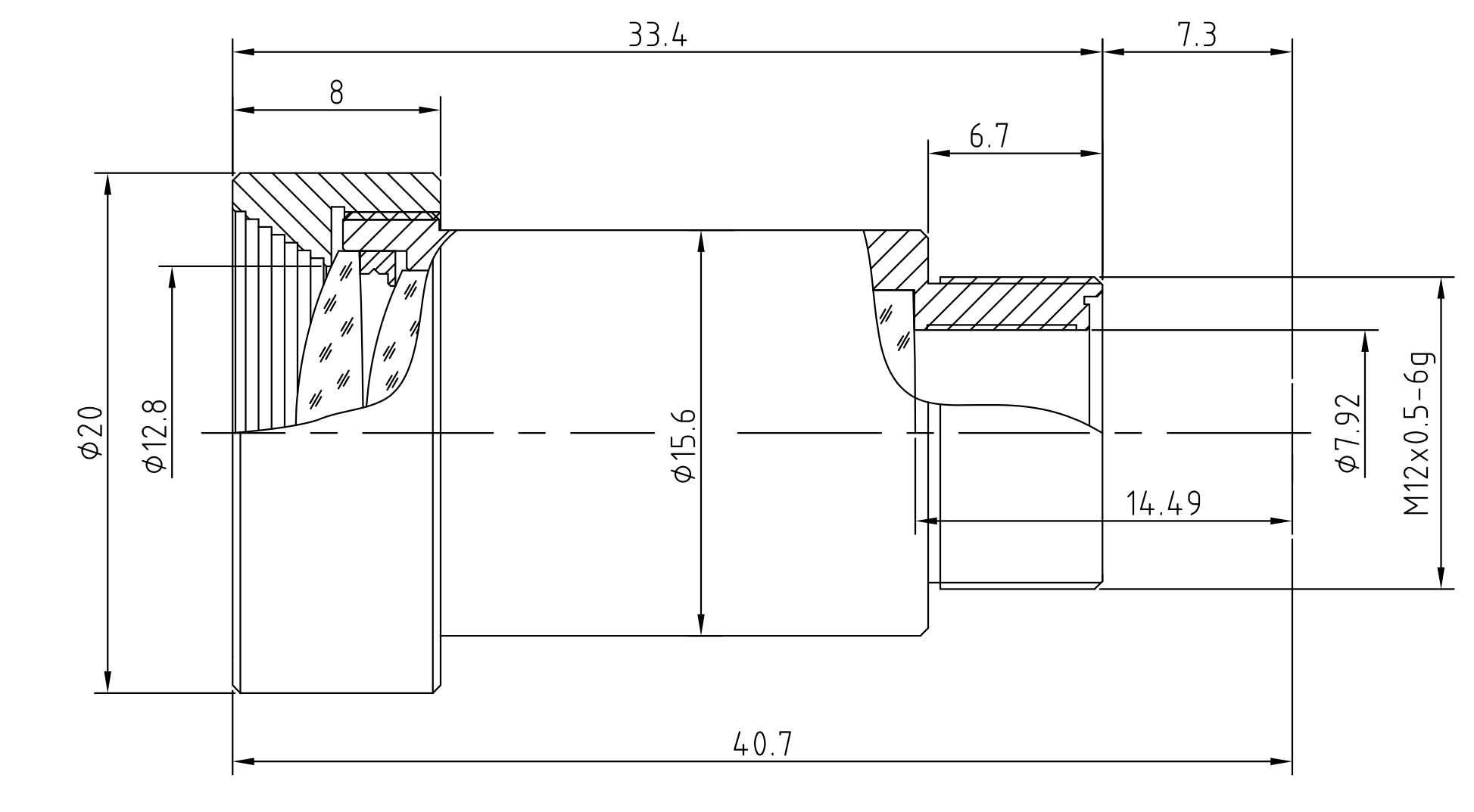

35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC Dimensions

€69.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
No shipping from 2025-08-24, through 2025-09-30
  • Order number: 303062
Description Evaluations 0
Description
high-quality and high-resolution 5MP lens for board cameras with S-mount lens connection thread... more
Close menu

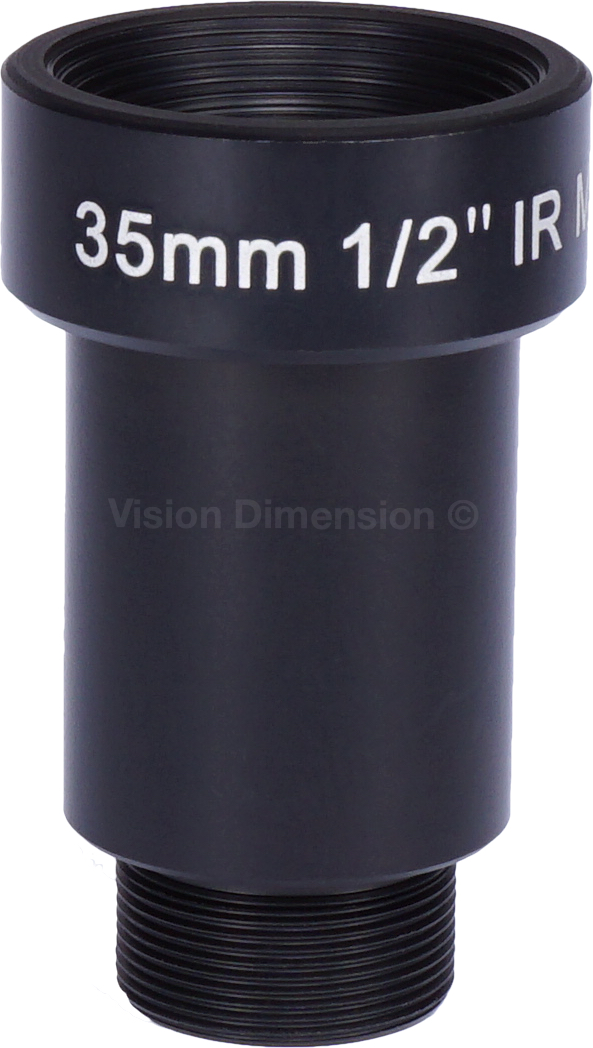

Product information "35mm 5MP MEGAPIXEL BOARD-LENS-IRC BL-5M3525MP12IRC"

high-quality and high-resolution 5MP lens for board cameras with S-mount lens connection thread (M12x0,5), suitable for industrial image processing and 1/2 "sensors suitable for the IR range Due to the spec. remuneration of the glass. This lens has an IR-Cut Filter

Article-No. 303062
Alternativ-Article-No. BL-5M3525MP12IRC
Format  1/2"
Mount S-Mount (M12x0,5)
Focal length 35mm
Filter IR-Cut Filter
Horiz. aperture angle 11.0°
Aperture range F 2,5
Iris control fix
Focus control fix
MOD (Minimale Object Distance) 0,2m
Dimension in mm 20 x 33,4
Weight 12 g
Lens type: Fixed Focal Length
M.O.D.: 0,20 m
Sensor: 1/2
Lens-Mount: S-Mount M12x0,5
Focal length: 35 mm
Resolution: 5 Megapixel
Aperture: 2,5, Fix
Filter: IR Cut Filter
Filter Thread: -
Coaxial: No
