12mm Miniobjektiv BL-5M1228MP118LDIR

VD-Optics
(1)

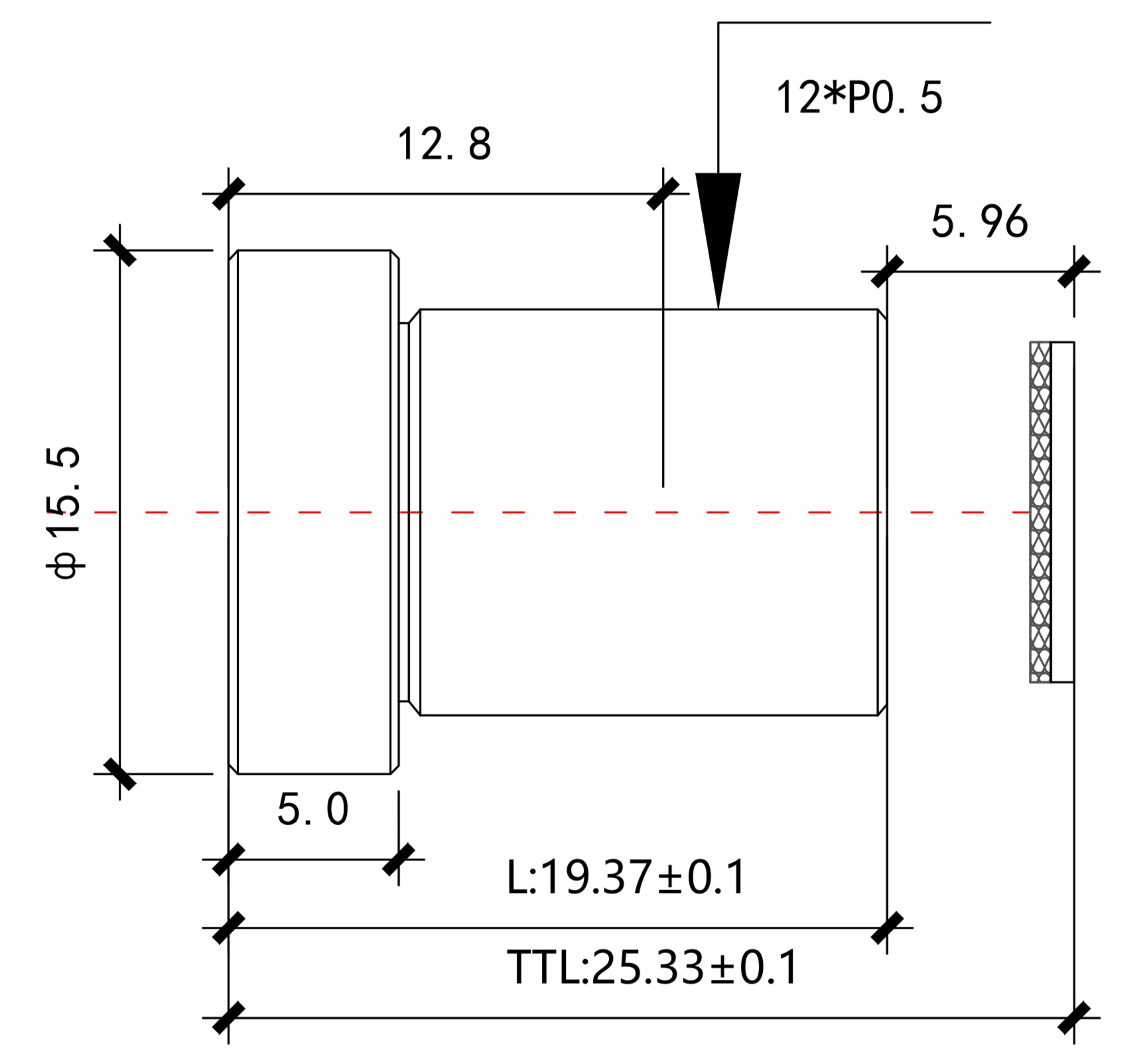

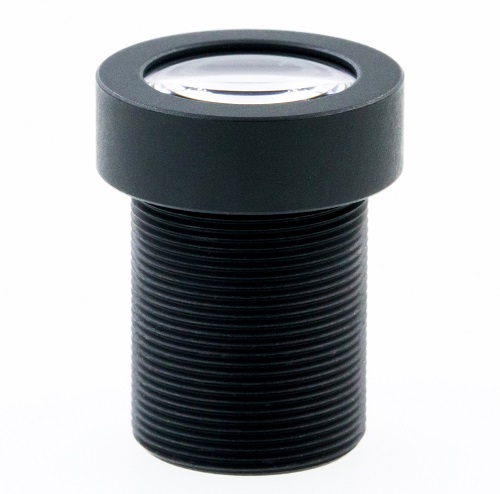

Preview: BL-5M1228MP118LDIR Preview: BL-5M1228MP118LDIR-Zeichnung
BL-5M1228MP118LDIR
BL-5M1228MP118LDIR-Zeichnung

€59.00 *

Prices plus 19% VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-2 days

All prices are list prices excl. 19% VAT. In order to see prices for companies or dealers, you need to login or register here.
No shipping from 2025-12-19, through 2026-01-02
  • Order number: 303733
Description Evaluations 1
Description
hochauflösendes 5 Megapixel Mini S-Mount Objektiv mit 12 mm Brennweite und geringer... more
Close menu
Product information "12mm Miniobjektiv BL-5M1228MP118LDIR"

hochauflösendes 5 Megapixel Mini S-Mount Objektiv mit 12 mm Brennweite und geringer Verzeichnung.

Sensor 1/1.8 1/3"
F.O.V. Diagonal 41° 27°
Horizontal 32° 22°
Vertikal 25° 15,5°
Image Format 7,2x5,32x8,95
EFL 12,0mm
TTL 25,33mm
BFL (M) 5,96mm
BFL (O) 8,05mm
 M.O.D.  0,15m~∞
 Dimension ø15,5,8xL19,37
 Lens Structure 7G8E all Glass
 Filter (optional) 650nm
Operation Temp.  -20° +65°
 Storage Temp. -20° +85°
Lens type: Fixed Focal Length
M.O.D.: 0,15 m
Sensor: 1/1,8, 1/3
Lens-Mount: S-Mount M12x0,5
Focal length: 12 mm
Resolution: 5 Megapixel
Aperture: 2,8, Fix
F-theta Distortion (-%): 0,2
Filter: suitable for IR
Filter Thread: -
Image-Circle: 9 mm
Coaxial: No
