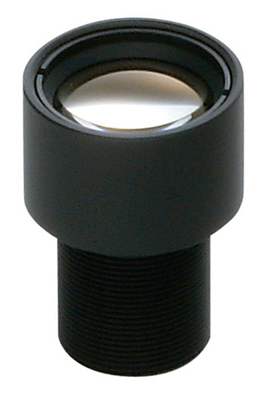

25 mm S-Mount Computar Board Lens H2520KP
This product is currently not available.
- Order number: 301451
25 mm S-Mount Computar Board Lens H2520KP for 1/2" 25mm (S Mount) Board Lens High quality... more
Product information "25 mm S-Mount Computar Board Lens H2520KP"
25 mm S-Mount Computar Board Lens H2520KP for 1/2" 25mm (S Mount) Board Lens
High quality distortion free M12 mount (S-mount) Board-lens
| Article-No. | 301451 |
| Computar-Name | H2520KP |
| Format | 1/2" |

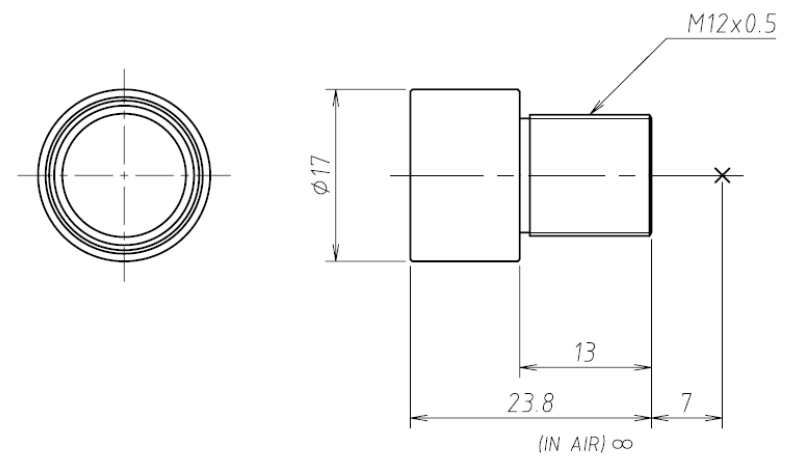

| Mount | M12x0,5 (S-Mount) |
| Focal length | 25,00mm |
| Back focal lenght | 9,23mm |
| Aperture | F2,0 |
| Iris control | fix |
| Focus control | fix |
| Angle of View 1/4"(horizontal) | 8,2° |
| Angle of View 1/3"(horizontal) | 10,9° |
| Angle of View 1/2"(horizontal) | 14,5° |
| Distrotion | 1,0% |
| Weight | 10 g |
| Lens type: | Fixed Focal Length |
| M.O.D.: | 0,13 m |
| Sensor: | 1/2, 1/3, 1/4 |
| Lens-Mount: | S-Mount M12x0,5 |
| Focal length: | 25 mm |
| Resolution: | 2-3 Megapixel |
| Aperture: | 2,0, Fix |
| F-theta Distortion (-%): | 1% |
| Filter: | suitable for IR |
| Filter Thread: | - |
| Image-Circle: | Ø 8 mm |
| Coaxial: | No |
