Videowall Xtreme4vs

Videowall Xtreme4vs
1.267,35 € *
Nettopreis: 1.065,00 €

inkl.19% MwSt.zzgl. Versandkosten

Lieferzeit 2-3 Werktag Werktage

Firmenkonditionen: zum Firmen-Login
dieser Artikel ist an Endkunden nur in Deutschland oder außerhalb der EU lieferbar!
  • 302422

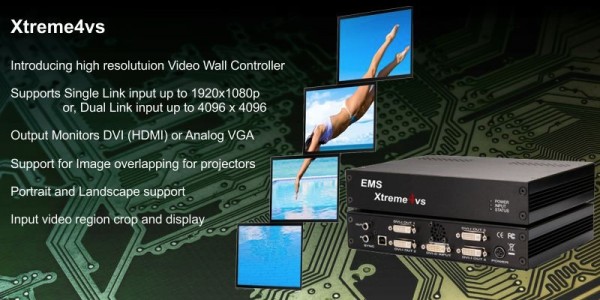

Xtreme4vs: Revolutionize Your Video Wall Display The EMS Xtreme4vs is the solution for your... mehr
Produktinformationen "Videowall Xtreme4vs"

Xtreme4vs: Revolutionize Your Video Wall Display

The EMS Xtreme4vs is the solution for your video wall display needs. It can accept a single HDMI or DVI-D or dual link DVI inputs and has the flexibility to bring four output monitor displays. Outputs can either be analog or digital and resulting images can be cropped portions of the original image. The EMS Xtreme4vs also allows you to choose portrait or landscape representation of the cropped images, with freedom to rotate them in three angles (90o, 180o, and 270o). In short, this video wall controller will allow you to creatively display images for different needs to support your entertainment, gaming, or presentation requirements.

4vswindmill

4vswindmill-square

Crop the input signal into x4 and display x2 quarters landscape
and x2 quarters portrait.

Crop the input signal x4 rotate through 90º,180º or 270º, display in landscape and portrait.

xtreme4vs-conf2

Crop the input signal 1920x180 and display in landscape on to individual screens at 1280x1024 each.

Xtreme4vs_smode3

Display the complete input on the 1st screen in landscape mode and then crop the input into three segments, rotate and display onto 3 screens in portrait mode.

Features of the Xtreme4vs

  • Flexible input sources – The Xtreme4vs accepts a variety of input sources, giving the user the freedom to use many of his already available media tools with no need to purchase an extra device. It can accept single link sources (DVI-D or HDMI) of up to 1920x1080 and dual link sources (DVI) of up to 4096x4096.
  • Multiple Displays – Instead of relaying the input image to one single screen, you can split it to four monitors (or less). You can even choose how they are displayed, whether it is a mirror image of the original or portions of it. You can put together several portrait or landscape displays of cropped images or combinations of it for a touch of creativity. Therefore, even if your output monitors are not of rectangular screen arrangements, you can still display the image as is in a mix of orientations.
  • Automatic conversion – There is no need to worry if your output frame rate is not related to the input’s rate as the hardware takes care of the frame rate conversion for each individual output monitor.
  • Width and height correction – Your original image can be transferred to multiple large screens of different sizes and orientations and still create the illusion of a single image.
  • Flexible output options – You can connect this wall display controller to LCDs, DLPs, wall cubes, or projectors. Outputs can also be either analog or digital.
  • Configurable – Easily edit your input and output images by hooking up this controller to a PC through a USB connection. Once configured, the hardware will be able to automatically adjust input images to desired output resolutions based on settings.

Xtreme4vs Video Wall Designer

EMS Ltd announces the launch of 4vs Designer - This software will provide the perfect solution to creating and managing an entire video wall projects
EMS 4vs Designer key features and benefits:

  • Create inputs to help manage projects using multiple input sources and mix walls together
  • Preview actual source content by loading the creative content intended to use and preview the results
  • Manage capture regions by drag and resize capture regions for each output over the content, deciding how much will be displayed in each screen
  • Print out design schematics which include useful measurements to aid in project build and installation

Benefits of this Stand Alone Video Wall Controller

  • Cost effective wall display option – Instead of buying expensive large LCD screens, you can opt to use multiple small LCD monitors that are put together. This wall controller will flawlessly make your image look like a single picture for a great media presentation.
  • Easy setup – If you can operate the connections in an HDTV, then setting up this wall controller will be no problem at all. Input and output connections can be easily identified and you can enjoy your full size images in just a few minutes.
  • Great support for various applications – Whether it is for home entertainment, a product presentation, tradeshows, or full gaming experience, the Xtreme4vs is the perfect tool to support your intended application. You can go beyond the limits of restricted screen sizes and catch more attention with high resolution large size displays.

Dual-Link DVI input supports high resolutions

Dual-Link DVI input will support high resolution pixel-perfect source images for display. The EMS Xtreme4vs can additionally present a default native resolution to the source to allow still higher custom resolutions at reduced frame rate, but still remain within the capabilities of the Dual-Link interface. Most standard graphics card sources will output at this native resolution. Since the Xtreme4vs will scale and frame-rate convert, using a triple-buffered capture architecture, the output monitors can still be driven at their preferred frame rates and resolutions.

4vsQuad-Split-final Easily Configurable

The Xtreme4vs supports simple editing of custom input and output configurations via a USB connection to a PC. Once configured, the Xtreme4vs will run stand-alone, without the need for the USB connection, and will auto detect input resolutions and adjust internal scaling appropriately to drive the output monitors in a consistent manner.
Gen-Lock

The Xtreme4vs will auto-sense input and output framerates and automatically genlock when possible. Four identical monitors will automatically be driven genlocked and if the input timings match they are additionally genlocked and clock-locked to the source signal.

Weiterführende Links zu "Videowall Xtreme4vs"
Verfügbare Downloads:
Bewertungen lesen, schreiben und diskutieren... mehr
Kundenbewertungen für "Videowall Xtreme4vs"
Bewertung schreiben
Bewertungen werden nach Überprüfung freigeschaltet.
Bitte geben Sie die Zahlenfolge in das nachfolgende Textfeld ein.

Die mit einem * markierten Felder sind Pflichtfelder.

Xtreme4vs Specifications

Specifications

Physical Dimensions

235 x175 x 44mm / 9.25" x 6.9" x 1.75"

Operating Temperature Range

0 - 35 DegC / 32 - 96 DegF

Power Requirements

5V DC, 11W.  Universal mains power adapter supplied (100-240V).

Cooling

Cooling by internal fan. The input/output vents should not be restricted.

1x Dual link DVI capture

To 330Mpixels/s.

Input Surface

4k x 4k maximum

4x Single link DVI or analog RGB outputs

To 165Mpixels/s.

Output Screens Resolutions

Up to 2.5Mpixel (maximum 2048 pixels in either direction

Arbitrary Up Scaling

64x original surface area

Software Control

Supports configuration and updates via USB port (USB 2.0)





Other possible screen configurations:
