Computar präsentiert die neue Ruggedized Objektivserie MPW-2-R

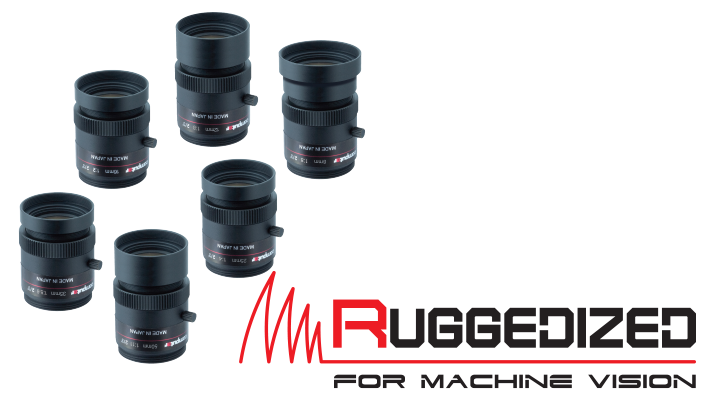

Als Anwendungen Machine Vision auch weiterhin in anspruchsvolleren Umgebungen zu erweitern, mit Schwingungen optische Integrität beibehalten wird , Erschütterungen und Temperaturänderungen ist von entscheidender Bedeutung. Computar hat die entworfen MPW2-R Ruggedized - Objektiv - Serie, eine robuste Version seines beliebten 5 MP, 2/3" MPW2 Serie von Machine - Vision - Linsen.
Die Leistungsmerkmale auf einen Blick
- Robuste Objektive mit bis zu 5 Megapixel Auflösung
- Minimiert Bildfehler von Schock und Vibratio
- Haltbarkeit: 10G
- Verschiedene Brennweiten: 8mm, 12mm, 16mm, 25mm, 35mm und 50mm
- Redundanter Fokus: Einstellbar mit Doppelmuttermechanismus
- Gleiche optische Leistung wie die bestehende Computar MPW2-Serie
- F2.0 / F4.0 / F5.6 / F8.0 / F11.0 Optionen
- 2/3 "Format
- 5 Megapixel
| Bestellnummer | Produktbeschreibung |
|---|---|
| M0824-MPW2-R | Ruggedized, 2/3" 8mm 5 Megapixel, Manuelle Iris, C Mount, F2.4 |
| M0840-MPW2-R | Ruggedized, 2/3" 8mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M0856-MPW2-R | Ruggedized, 2/3" 8mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M0880-MPW2-R | Ruggedized, 2/3" 8mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M0811-MPW2-R | Ruggedized, 2/3" 8mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
| M1224-MPW2-R | Ruggedized, 2/3" 12mm 5 Megapixel, Manuelle Iris, C Mount, F2.4 |
| M1240-MPW2-R | Ruggedized, 2/3" 12mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M1256-MPW2-R | Ruggedized, 2/3" 12mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M1280-MPW2-R | Ruggedized, 2/3" 12mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M1211-MPW2-R | Ruggedized, 2/3" 12mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
| M1620-MPW2-R | Ruggedized, 2/3" 16mm 5 Megapixel, Manuelle Iris, C Mount, F2.0 |
| M1640-MPW2-R | Ruggedized, 2/3" 16mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M1656-MPW2-R | Ruggedized, 2/3" 16mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M1680-MPW2-R | Ruggedized, 2/3" 16mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M1611-MPW2-R | Ruggedized, 2/3" 16mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
| M2518-MPW2-R | Ruggedized, 2/3" 25mm 5 Megapixel, Manuelle Iris, C Mount, F1.8 |
| M2540-MPW2-R | Ruggedized, 2/3" 25mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M2556-MPW2-R | Ruggedized, 2/3" 25mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M2580-MPW2-R | Ruggedized, 2/3" 25mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M2511-MPW2-R | Ruggedized, 2/3" 25mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
| M3520-MPW2-R | Ruggedized, 2/3" 35mm 5 Megapixel, Manuelle Iris, C Mount, F2.0 |
| M3540-MPW2-R | Ruggedized, 2/3" 35mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M3556-MPW2-R | Ruggedized, 2/3" 35mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M3580-MPW2-R | Ruggedized, 2/3" 35mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M3511-MPW2-R | Ruggedized, 2/3" 35mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
| M5028-MPW2-R | Ruggedized, 2/3" 50mm 5 Megapixel, Manuelle Iris, C Mount, F2.8 |
| M5040-MPW2-R | Ruggedized, 2/3" 50mm 5 Megapixel, Manuelle Iris, C Mount, F4.0 |
| M5056-MPW2-R | Ruggedized, 2/3" 50mm 5 Megapixel, Manuelle Iris, C Mount, F5.6 |
| M5080-MPW2-R | Ruggedized, 2/3" 50mm 5 Megapixel, Manuelle Iris, C Mount, F8.0 |
| M5011-MPW2-R | Ruggedized, 2/3" 50mm 5 Megapixel, Manuelle Iris, C Mount, F11.0 |
